​​Professional Insulated Ladder For Live Electrical Work And Power Line Maintenance

​​Professional Insulated Ladder For Live Electrical Work And Power Line Maintenance

The ​​Insulated Ladder​​ is an essential safety equipment for electrical utility workers performing live-line maintenance, power distribution repairs, and substation work. Designed specifically for high-voltage environments up to 36kV, this professional-grade ladder provides reliable insulation while ensuring stability and durability in demanding electrical applications.

​​Construction & Safety Features:​​

• ​​Rails:​​ High-grade fiberglass with epoxy resin coating (100kV/ft dielectric strength)
• ​​Rungs:​​ Molded fiberglass with textured non-slip surface
• ​​Hardware:​​ Stainless steel brackets and fasteners with corrosion-resistant coating
• ​​Feet:​​ Non-conductive rubber pads with adjustable leveling
• ​​Safety Labels:​​ Bright orange color with voltage rating and warning markings
• ​​Locking Mechanism:​​ Positive-lock system for extension ladders
• ​​Weight Capacity:​​ 300 lbs (136 kg) working load

​​Technical Specifications:​​

• ​​Voltage Rating:​​ 10kV, 20kV, 36kV (customizable)
• ​​Length Options:​​ 6ft to 16ft (1.8m to 4.9m)
• ​​Weight:​​ 15-35 lbs (6.8-15.9 kg) depending on size
• ​​Rung Spacing:​​ 12 inches (30.5 cm) OSHA compliant
• ​​Standards Compliance:​​ ANSI A14.5, OSHA 1910.26, IEC 61478
• ​​Operating Temp:​​ -40°F to +140°F (-40°C to +60°C)

​​Performance Advantages:​​
✔ ​​Non-conductive materials​​ prevent electrical current flow
✔ ​​Slip-resistant rungs​​ ensure secure footing
✔ ​​Corrosion-resistant​​ for long service life
✔ ​​Lightweight yet sturdy​​ for easy handling
✔ ​​Weatherproof construction​​ for outdoor use
✔ ​​Meets all electrical safety standards​​ for utility work

​​Professional Applications:​​

1. ​​Live-line maintenance​​ - safe access to energized equipment
2. ​​Substation work​​ - transformer and breaker maintenance
3. ​​Power line repair​​ - overhead conductor work
4. ​​Street light servicing​​ - fixture replacement
5. ​​Emergency restoration​​ - storm damage repairs

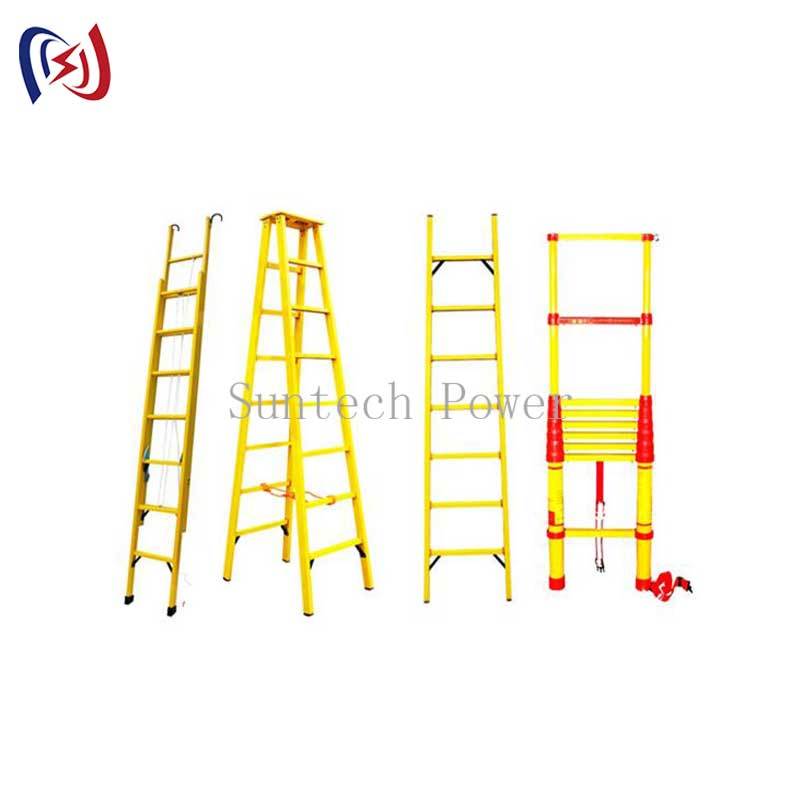

​​Available Configurations:​​

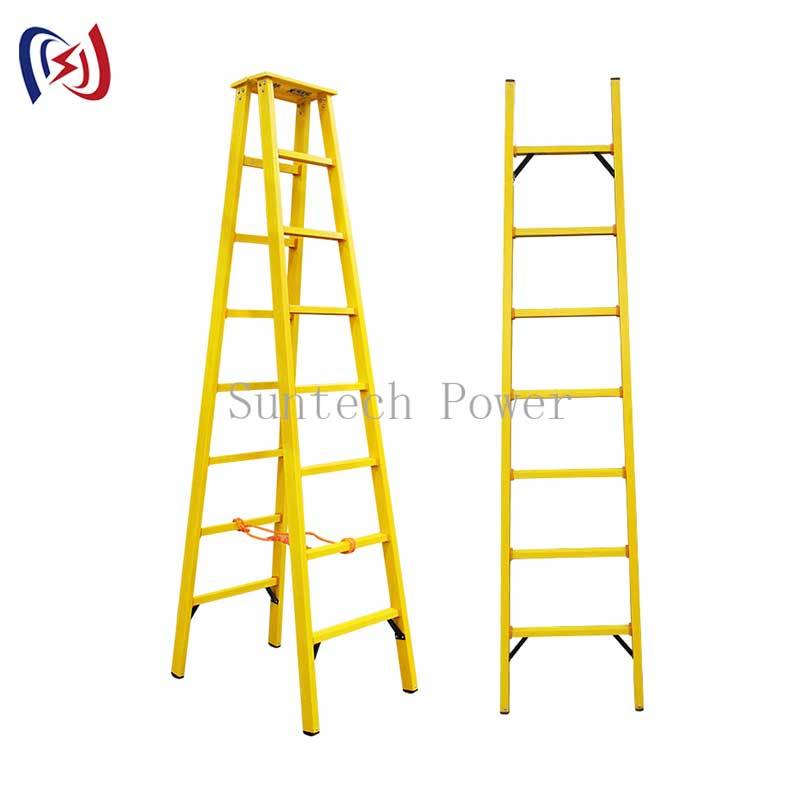

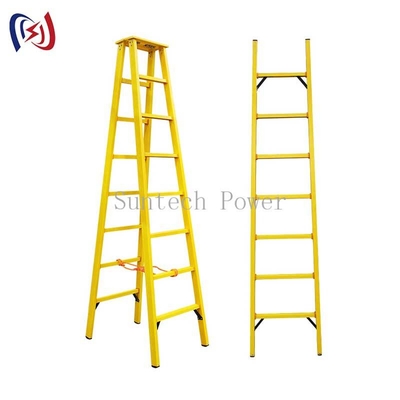

• ​​Single section straight ladders​​ (fixed length)

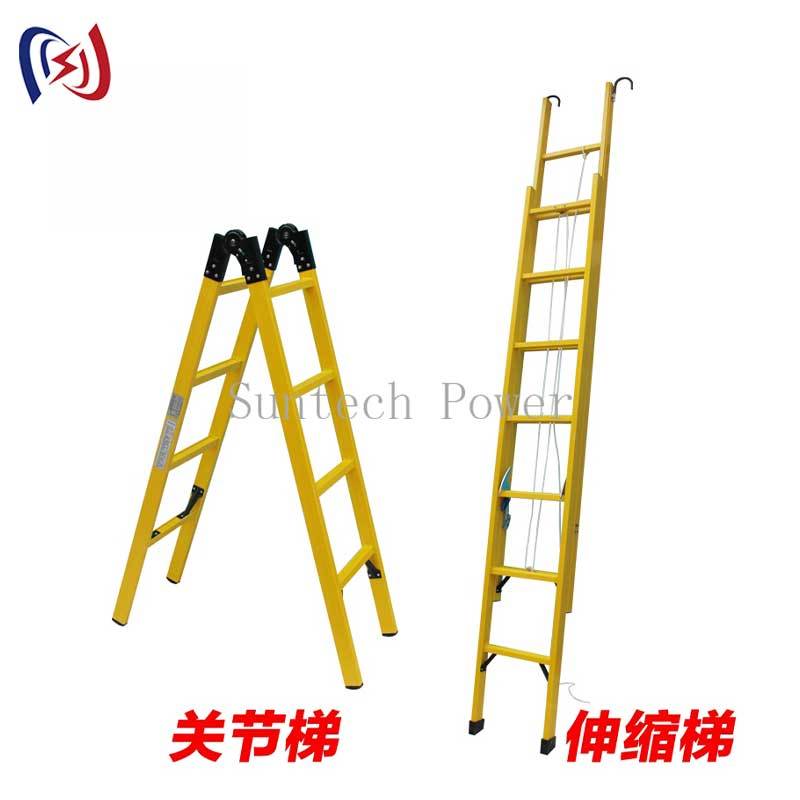

• ​​Extension ladders​​ (adjustable height)
• ​​Platform ladders​​ (with work platform)
• ​​Telescoping ladders​​ (compact storage)
• ​​Custom voltage ratings​​ (up to 72kV)

​​Why Choose Our Insulated Ladder:​​

• Manufactured to IEEE 516 standards
• Used by major utility companies
• Annual dielectric testing recommended
• 1-year warranty against material defects
• Field-tested by electrical professionals
