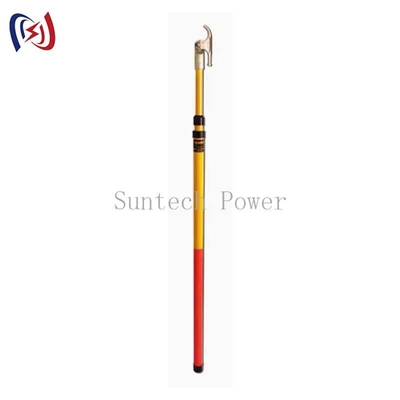

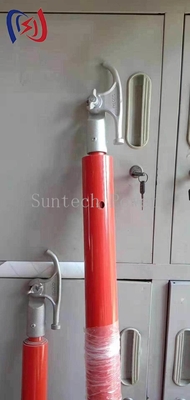

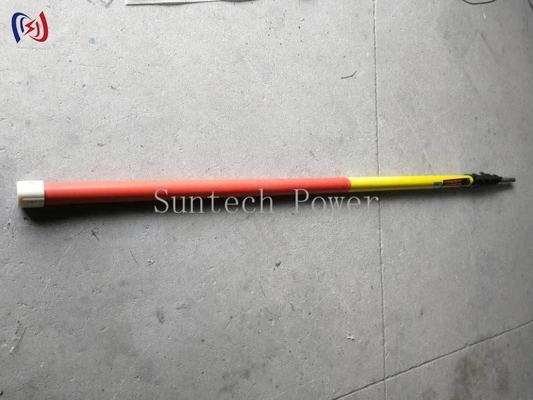

​​High Voltage Switch Rod For Live Line Maintenance And Power Line Operations​

​​High Voltage Switch Rod For Live Line Maintenance And Power Line Operations​

The ​​High-Voltage Switch Rod​​ is an essential insulated tool for electrical utility workers performing live-line maintenance, circuit switching, and power distribution operations. Designed specifically for high-voltage environments up to 36kV, this professional-grade tool ensures safe operation while maintaining proper electrical clearance.

​​Construction & Safety Features:​​

• ​​Insulated Tube:​​ High-density fiberglass with epoxy resin coating (100kV/ft dielectric strength)
• ​​Working Head:​​ Forged aluminum alloy with non-sparking design
• ​​Locking Mechanism:​​ Positive-lock telescopic system with secure position indicators
• ​​Grip:​​ Textured EPDM rubber with ergonomic contouring
• ​​Markings:​​ Bright orange color with voltage rating labels
• ​​Connections:​​ Stainless steel threaded couplings with anti-corrosion treatment

​​Technical Specifications:​​

• ​​Voltage Rating:​​ 10kV, 20kV, 36kV (customizable)
• ​​Length Options:​​ 6ft to 12ft (1.8m to 3.6m) telescopic
• ​​Weight:​​ 3.5-7.5 lbs (1.6-3.4 kg)
• ​​Operating Temp:​​ -40°F to +140°F (-40°C to +60°C)
• ​​Standards Compliance:​​ ANSI/NETA ATS-2017, IEC 61235
• ​​Minimum Approach Distance:​​ Clearly marked per voltage class

​​Performance Advantages:​​
✔ ​​Non-conductive materials​​ prevent current leakage
✔ ​​Telescopic design​​ adapts to various working heights
✔ ​​Positive-lock system​​ ensures secure extension
✔ ​​Weather-resistant​​ for outdoor power line work
✔ ​​Audible click confirmation​​ when properly engaged

​​Professional Applications:​​

1. ​​Live-line maintenance​​ - safe switching operations
2. ​​Substation work​​ - disconnect switch operation
3. ​​Emergency repairs​​ - rapid circuit isolation
4. ​​Power distribution​​ - feeder switching
5. ​​Transformer servicing​​ - tap changer adjustment

​​Available Configurations:​​

• ​​Basic switch rod​​ (fixed head design)

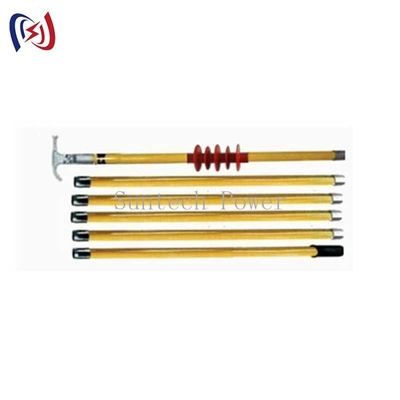

• ​​Multi-tool system​​ (interchangeable heads)
• ​​Hot-stick version​​ (with live-line tool attachments)
• ​​Compact field kit​​ (with carrying harness)
• ​​Custom voltage ratings​​ (up to 72kV)

​​Why Choose Our High-Voltage Switch Rod:​​

• Manufactured to IEEE 516 standards
• Used by major utility companies
• Annual dielectric testing recommended
• 1-year warranty against material defects
