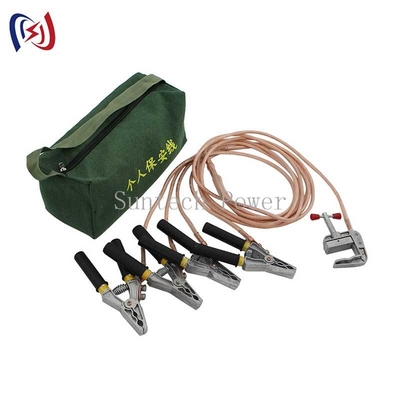

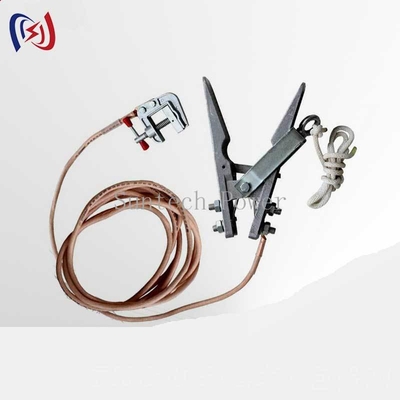

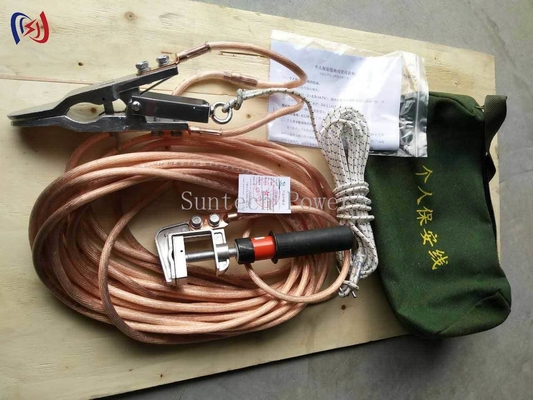

Industrial Safety Grounding Wire Kit With Durable Storage Bag For Easy Transport​

Industrial Safety Grounding Wire Kit With Durable Storage Bag For Easy Transport​

The ​​Portable Safety Grounding Wire​​ is an essential protective equipment designed to ensure electrical safety during maintenance, repair, and construction work on de-energized power systems. This critical safety device provides a reliable path to ground, protecting workers from accidental re-energization and static electricity hazards.

​​Construction & Materials:​​

• ​​Conductor:​​ High-purity 99.9% copper strands for maximum conductivity
• ​​Insulation:​​ High-grade silicone rubber or EPDM with 15kV rating

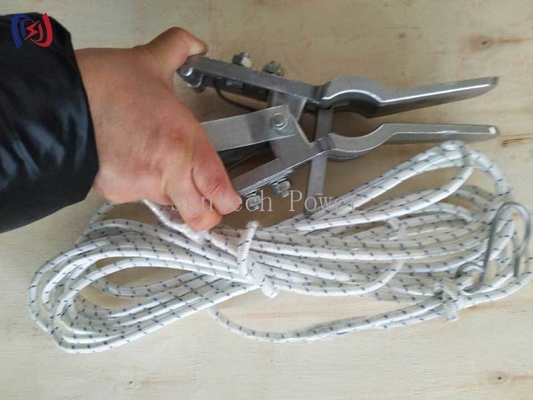

• ​​Clamps:​​ Forged copper jaws with stainless steel springs
• ​​Handles:​​ Fiberglass-reinforced polymer with ergonomic design
• ​​Connections:​​ Silver-plated copper terminals with compression fittings

​​Key Safety Features:​​

• ​​Visual indicators​​ showing proper grounding connection
• ​​Audible click​​ confirmation when clamps are securely attached
• ​​Tested to 50kA​​ for 0.5 seconds (ANSI/IEEE 80 standards)
• ​​Non-magnetic components​​ to prevent induction heating
• ​​Color-coded insulation​​ for easy voltage level identification

​​Technical Specifications:​​

• ​​Voltage Rating:​​ Up to 36kV (class 4)
• ​​Conductor Size:​​ 2/0 AWG to 4/0 AWG
• ​​Length Options:​​ 10ft, 25ft, 50ft (3m, 7.5m, 15m)
• ​​Temperature Range:​​ -40°C to +90°C
• ​​Weight:​​ 2.2lb to 8.8lb (1kg to 4kg) per set

​​Performance Advantages:​​
✔ ​​Meets OSHA 1910.269​​ and NFPA 70E requirements
✔ ​​Reduces arc flash hazards​​ by providing low-impedance path
✔ ​​Prevents static discharge​​ in flammable environments
✔ ​​Easy to deploy​​ with quick-connect clamps
✔ ​​Durable construction​​ withstands job site abuse

​​Professional Applications:​​

1. ​​Power line maintenance​​ - personal protective grounding
2. ​​Substation work​​ - equipment grounding during repairs
3. ​​Railway systems​​ - overhead catenary grounding
4. ​​Industrial plants​​ - machine lockout/tagout procedures
5. ​​Telecommunications​​ - tower maintenance safety

​​Available Configurations:​​

• ​​Single-point grounding sets​​ (1 clamp each end)
• ​​Three-phase kits​​ (for complete system grounding)
• ​​Temporary grounding clusters​​ (multi-point systems)
• ​​Custom length assemblies​​ (made to order)
• ​​Explosion-proof versions​​ (for hazardous areas)

​​Why Choose Our Portable Safety Grounding Wires?​​
 ​​Manufactured to ASTM F855 standards​​
 ​​Third-party tested​​ by UL or CSA
 ​​Used by utility companies nationwide​​
 ​​Backed by 1-year limited warranty​

Technical Data
