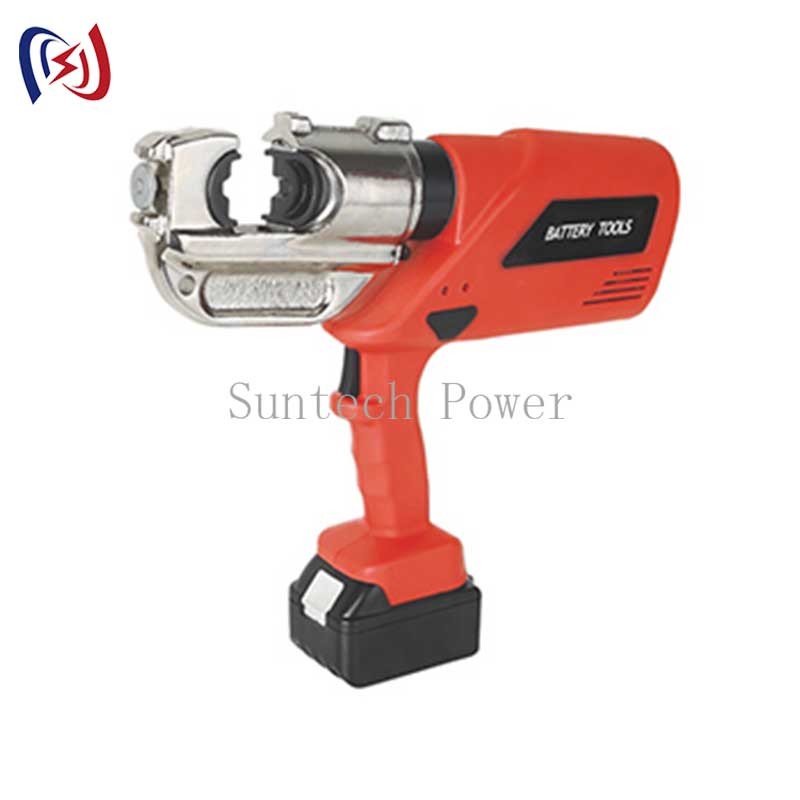

Cordless Battery Hydraulic Crimping Pliers for Power Cable Terminations

Cordless Battery Hydraulic Crimping Pliers for Power Cable Terminations

Key Features:
✔ Cordless Hydraulic Power – 18V lithium-ion battery eliminates manual pumping
✔ High-Speed Crimping – Full crimp cycle in 3-5 seconds (vs. 15+ sec manual)
✔ Precision Pressure Control – Auto-adjusts for perfect, gas-tight crimps every time
✔ Smart Digital Display – Shows pressure, battery level, and crimp count
✔ Long Battery Life – 150+ crimps per charge
✔ Weather-Resistant – IP54 rated for outdoor use

Technical Specifications:

Battery: 18V/5.0Ah Li-ion

Die Sets: 16-400mm² (included) / up to 630mm² (optional)

Crimp Speed: 3-5 seconds per cycle

Charging Time: 120 minutes

Working Principle:
The tool uses electric-hydraulic technology – the battery powers a micro-hydraulic pump that generates precise pressure for perfect crimps. The smart system automatically adjusts pressure based on die size and material.

Ideal Applications:
✅ Power line construction & maintenance
✅ Substation cable terminations
✅ Industrial electrical installations
✅ Renewable energy projects (solar/wind farms)
✅ Railway electrification
✅ Shipbuilding & offshore power systems

Advantages Over Manual Tools:
⚡ 3x Faster – Complete crimps in seconds
⚡ Consistent Quality – Every crimp meets IEC 61238 standards
⚡ No Fatigue – Eliminates manual pumping
⚡ Versatile – Works in any position, even overhead

Service & Support:
1-Year Warranty

Global Service Centers

Die Replacement Program

Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.

Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.

Hydraulic Crimping Pliers Introduction

Portable battery electrical powered hydraulic crimping tool, crimping pliers is used to compress copper and aluminum terminals.

Hydraulic Crimping Pliers Technical Data
