Conductor Stringing Tools Running Board Upgrade Electric Power Construction

Conductor Stringing Tools Running Board Upgrade Electric Power Construction

Feature: It is designed to avoid torsion strain accumulation during line stringing
Notes: Can be customized according to the specification of other stringing blocks

Application: It is used for stringing 2 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

Traction Guidance Head Boards for Two Bundle Conductors are designed to avoid torsion strain accumulation during line stringing. Traction Guidance Head Boards is using with the Swivel Joint, traction guidance and anti overturning. Traction Guidance Head Boards is apply to tension stringing or mechanical traction stringing construc.

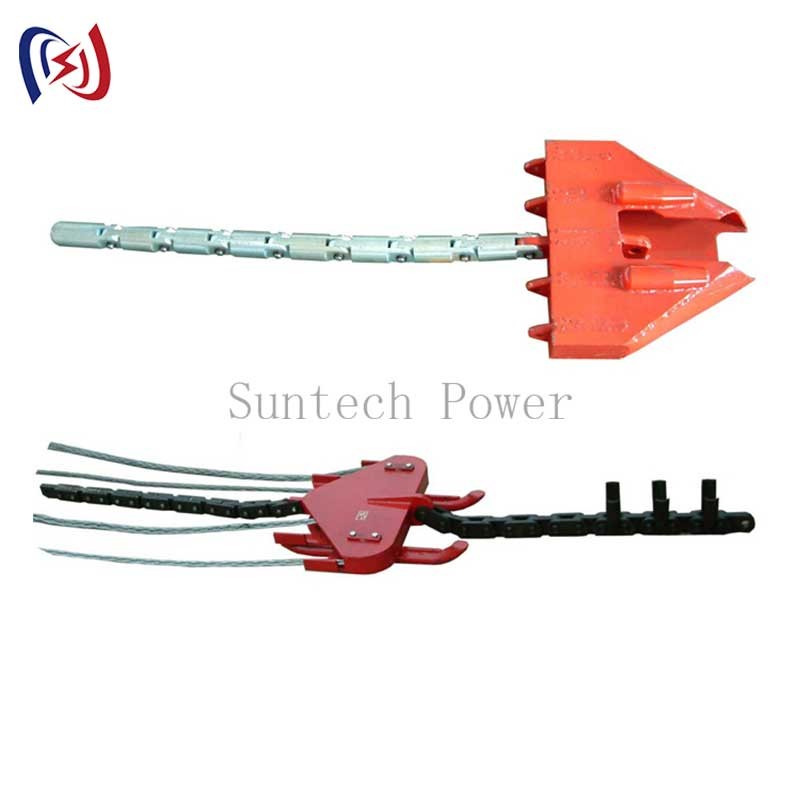

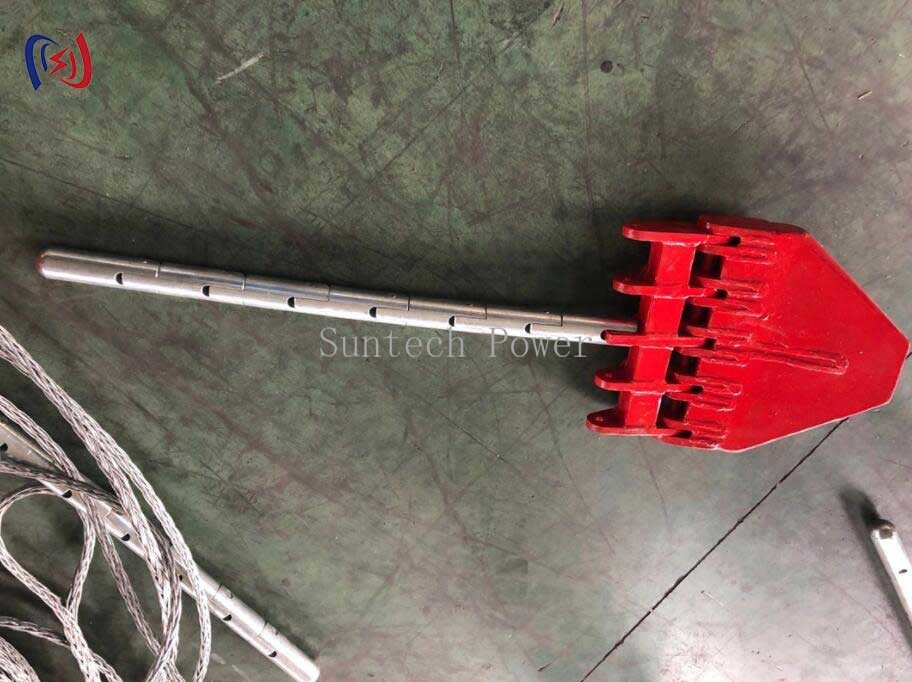

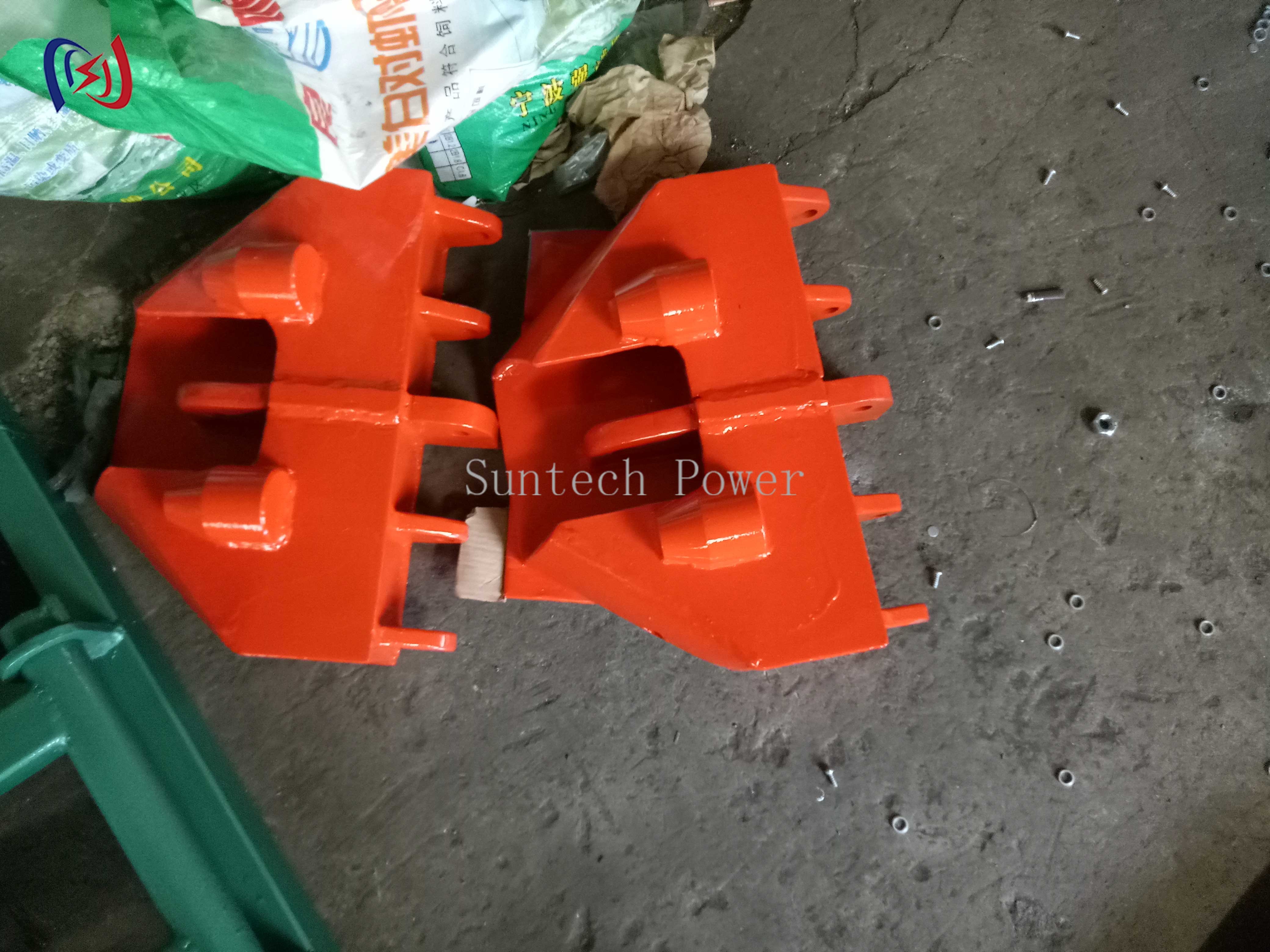

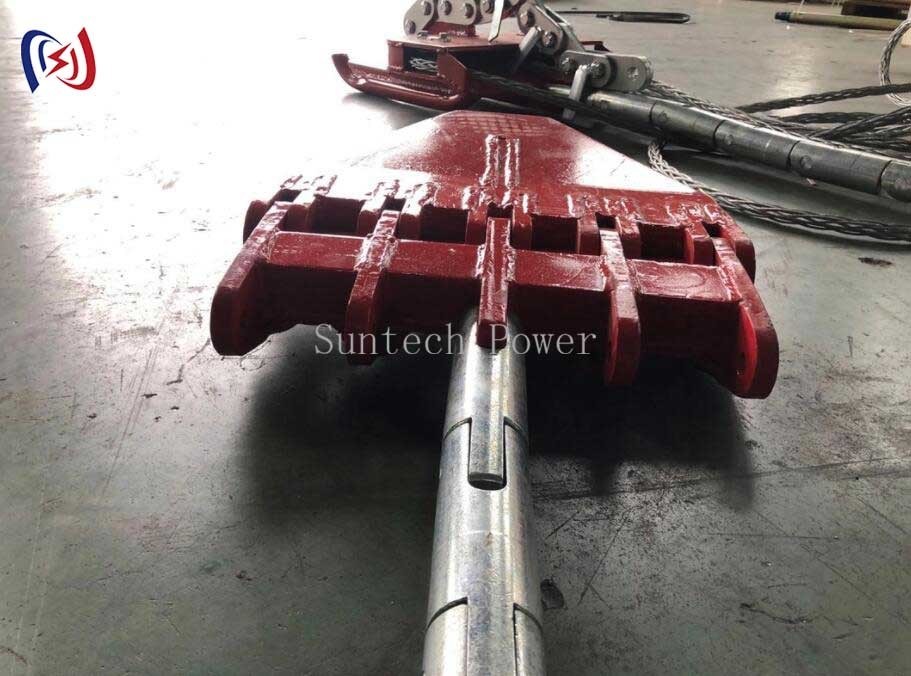

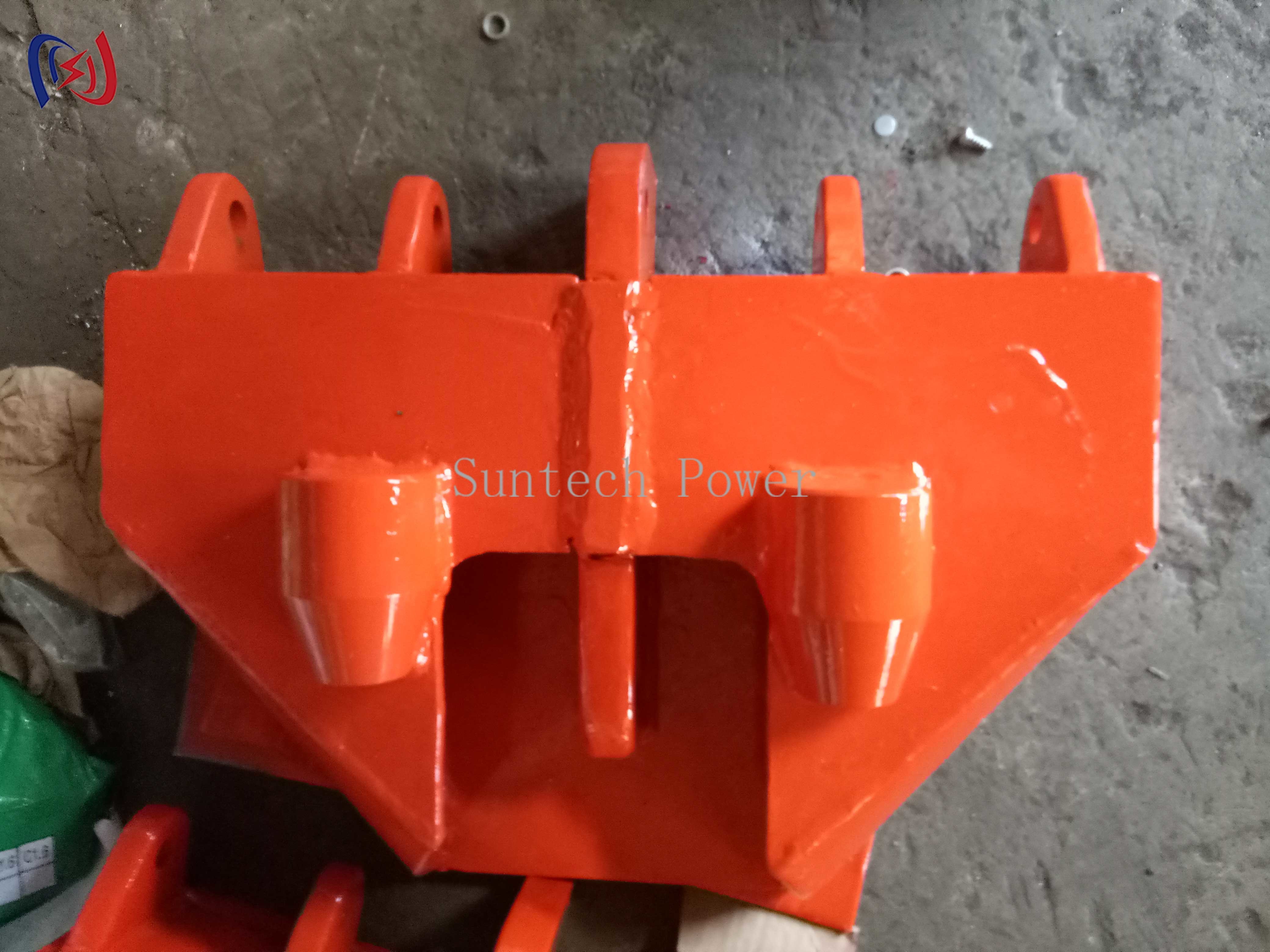

This running (head) board is specially designed to connect pulling rope with five bundled conductors in stringing of overhead power transmission line.The spacing of the headboard is designed to be compatible with the specific 5 sheave aerial rollers.

Technical Parameters
