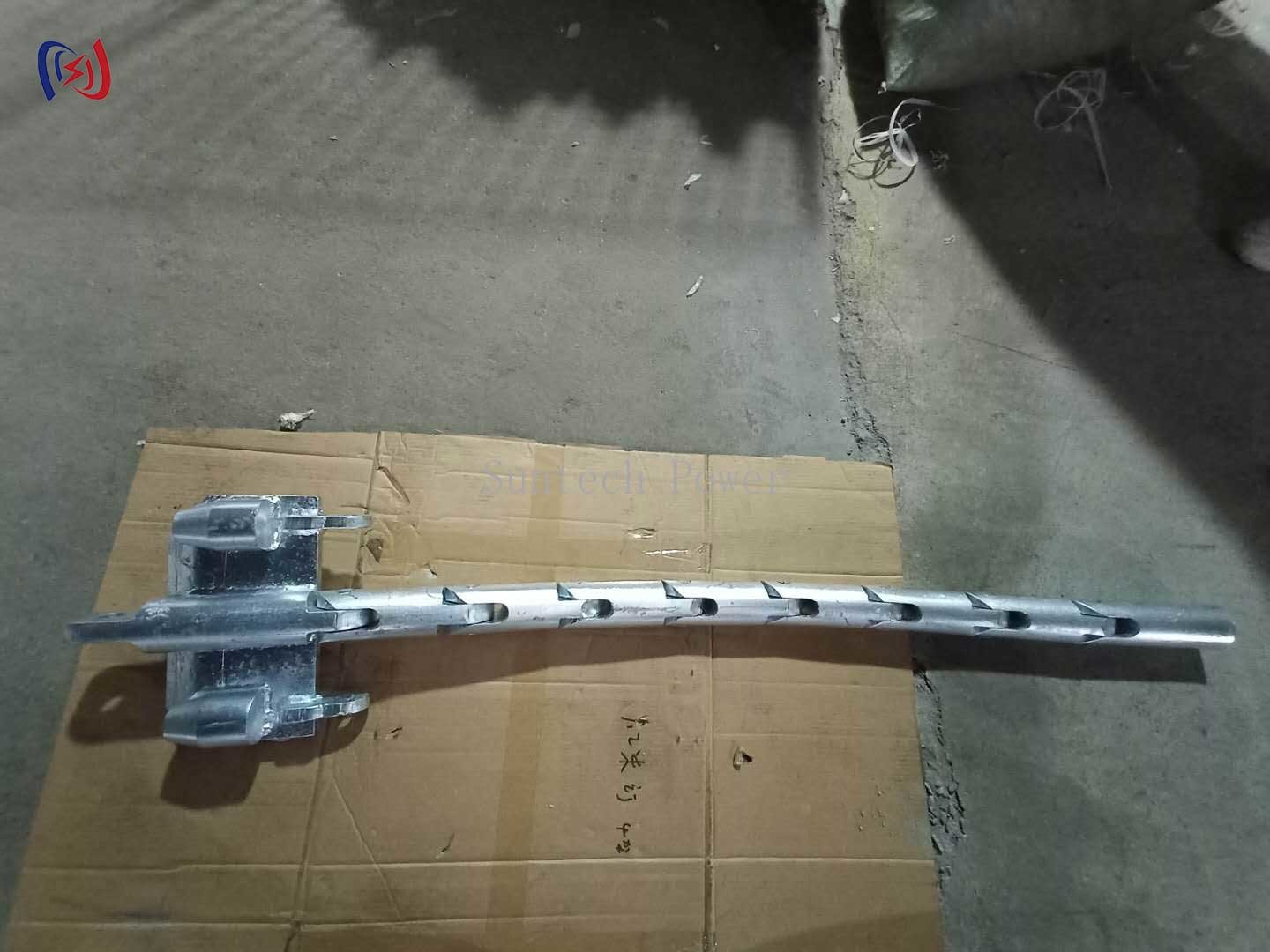

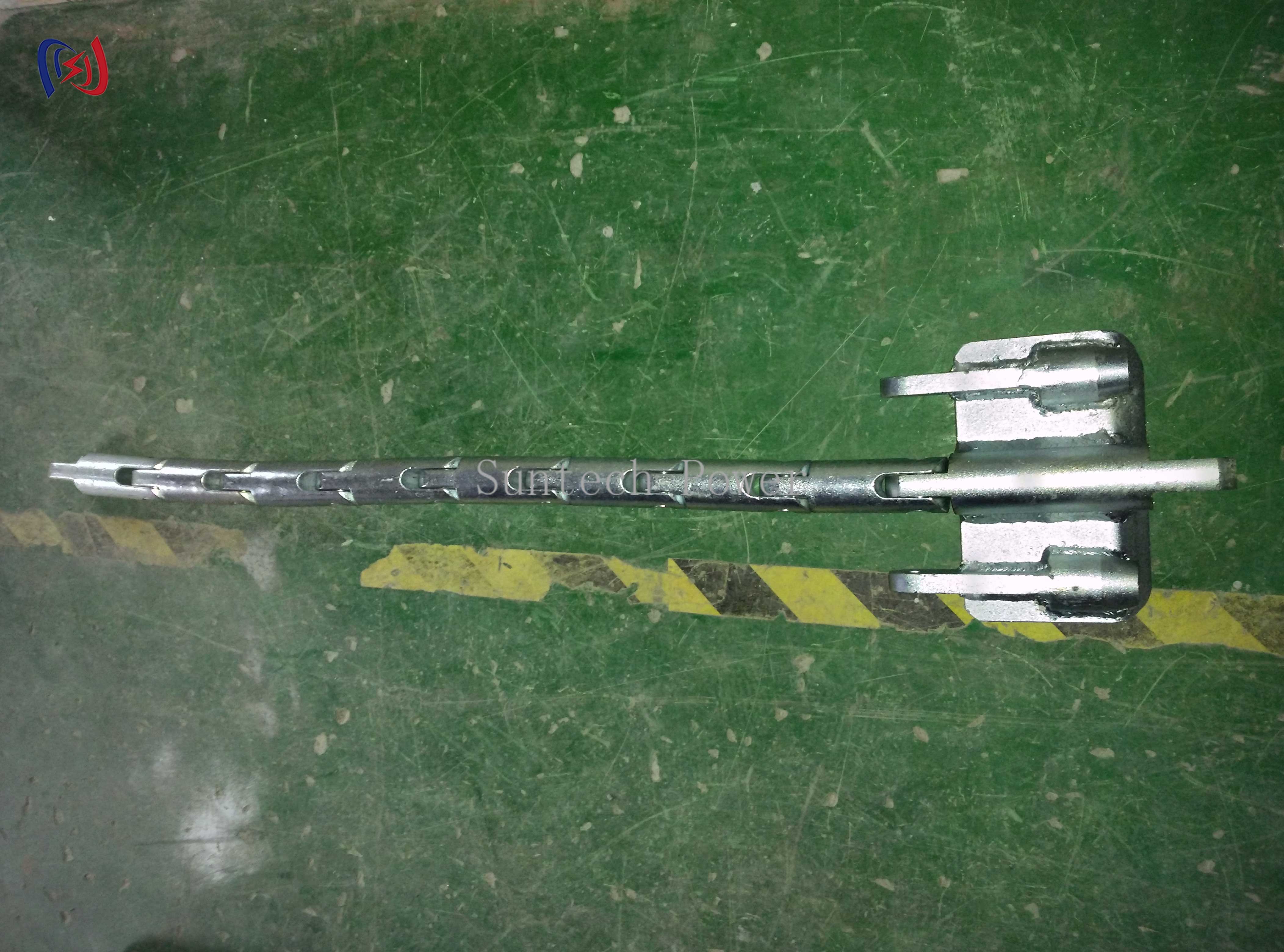

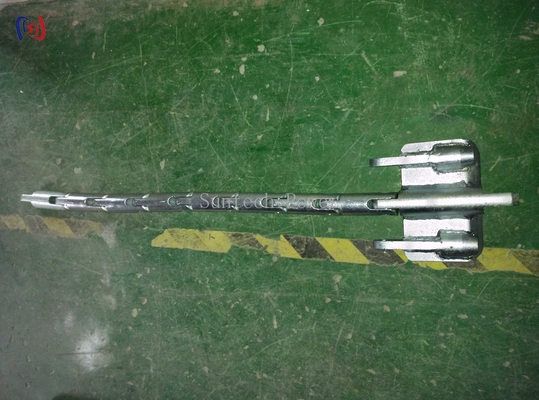

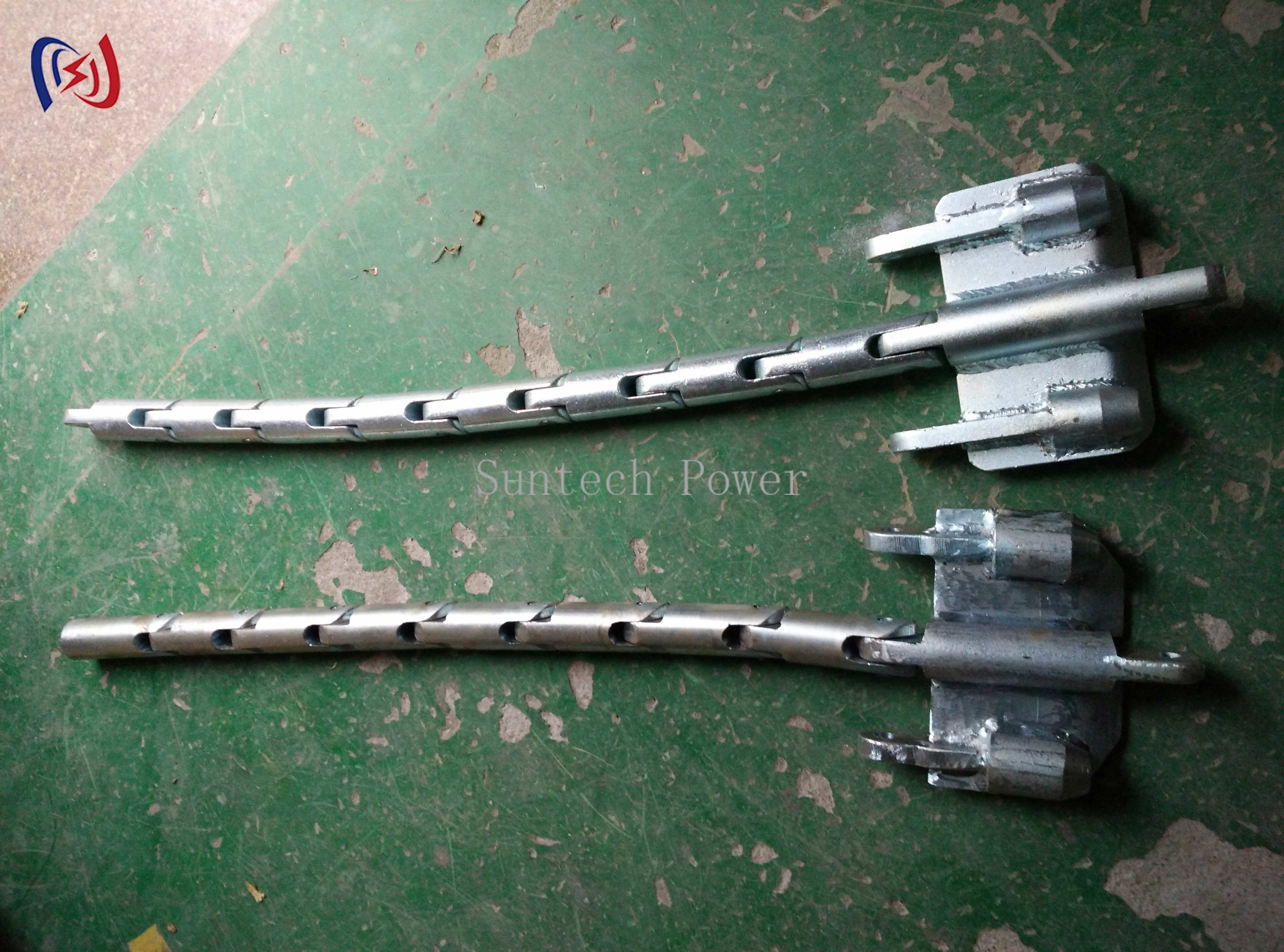

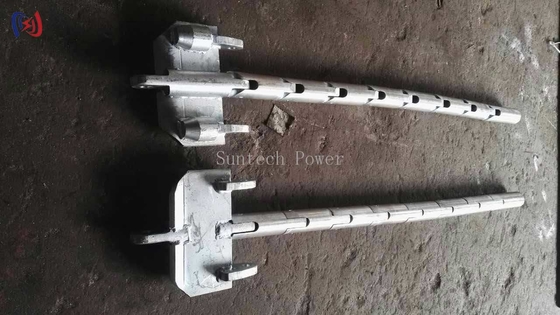

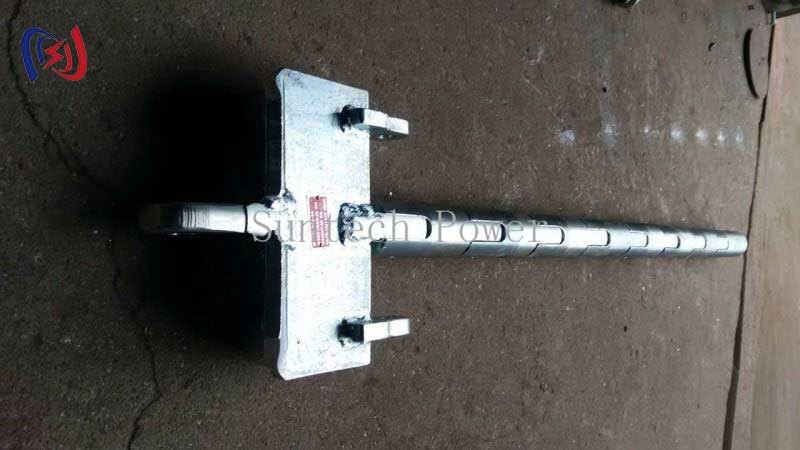

This running boards, has two types, independent, poising sheave, applicable tackle width of 75-125mm wheel, it can be customized according to the specificaiton of other stringing blocks.while the rated load max reached to 18T, this model is only for two bundle conductor in the operation site. But our plant, also made the head boards, to the three, and four conductos, they all have the features, to avoid torsion strain accumulation during line stringing.
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Item number | Model | Rated Load (KN) | Applicable Sheave Width (MM) | Weight (KG) | Feature |
17220 | SZ2-8 | 80 | 75 | 17 | Conductor are independent |
17221 | SZ2-8A | 100 | 19 | ||
17222 | SZ2-8B | 110 | 19.5 | ||
17223 | SZ2A-8 | 80 | 100 | 90 | Poising sheave |
17223T | SZ2A-8T | 110 | 100 | Poising sheave | |
17224 | SZ2B-13 | 130 | 110 | 55 | Conductor are independent |
17225 | SZ2C-13 | 130 | 110 | 50 | Conductor are independent |
17226 | SZ2B-18 | 180 | 125 | 90 | Conductor are independent |
