Name: High Performance Conductor Opgw Stringing Tools For Electric Power Construction
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SLE-1
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Item No.: 17141

Model: SLE-1

Applicable Cable Diameter: 7-11mm

Rated Load: 10KN

Length: 1.4M

Warranty: 1 Year

Highlight:

Electric Power Conductor Stringing Tools

High Performance opgw stringing tools

Electric Power Construction opgw stringing tools

Basic Infomation

Place of Origin: Ningbo, China

Brand Name: Suntech

Certification: ISO9001

Model Number: SLE-1

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 7-15days

Payment Terms: L/C,T/T

Supply Ability: 1000 PCS/Month

Gallery

High Performance Conductor Opgw Stringing Tools For Electric Power Construction

Product Description

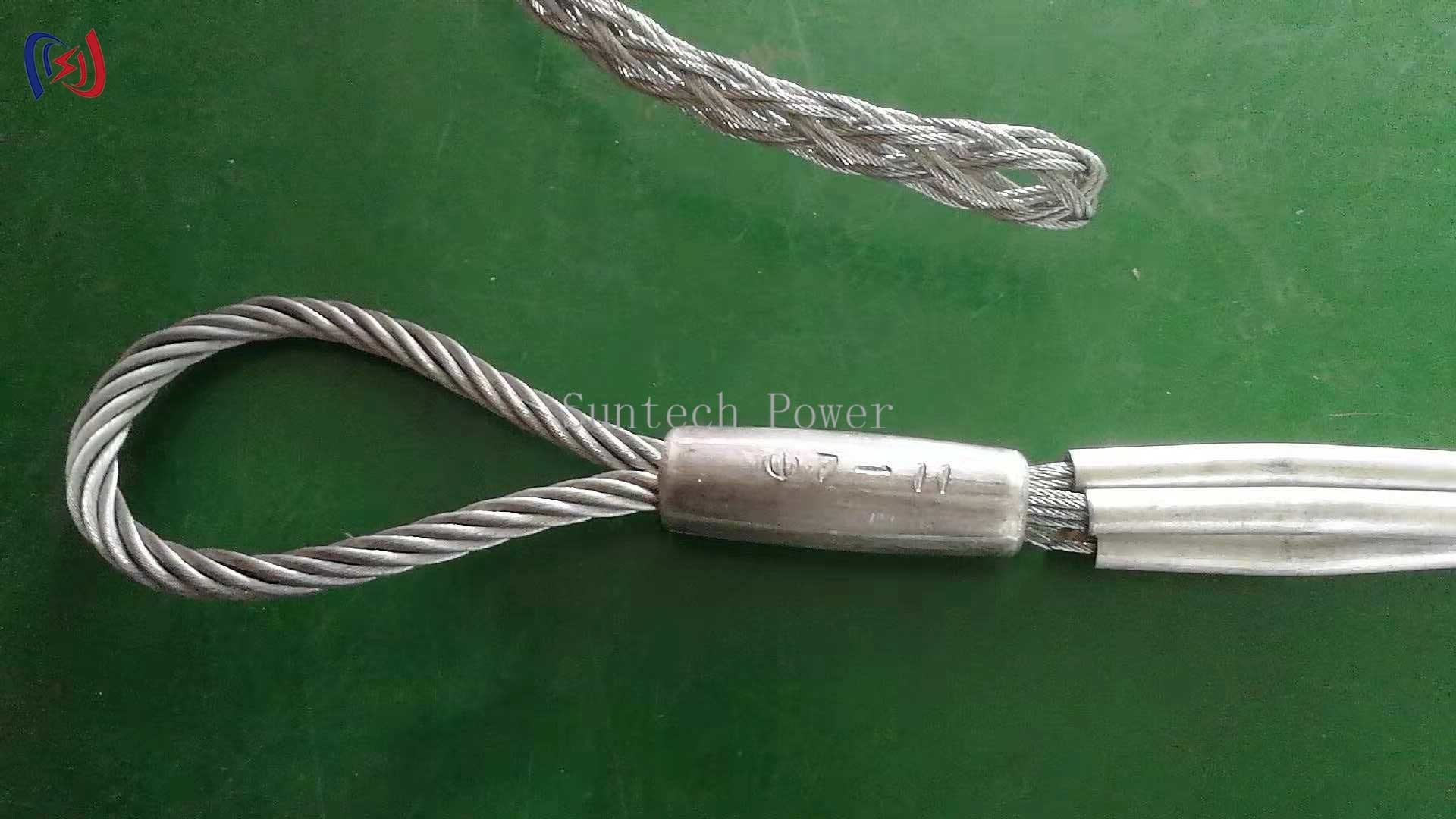

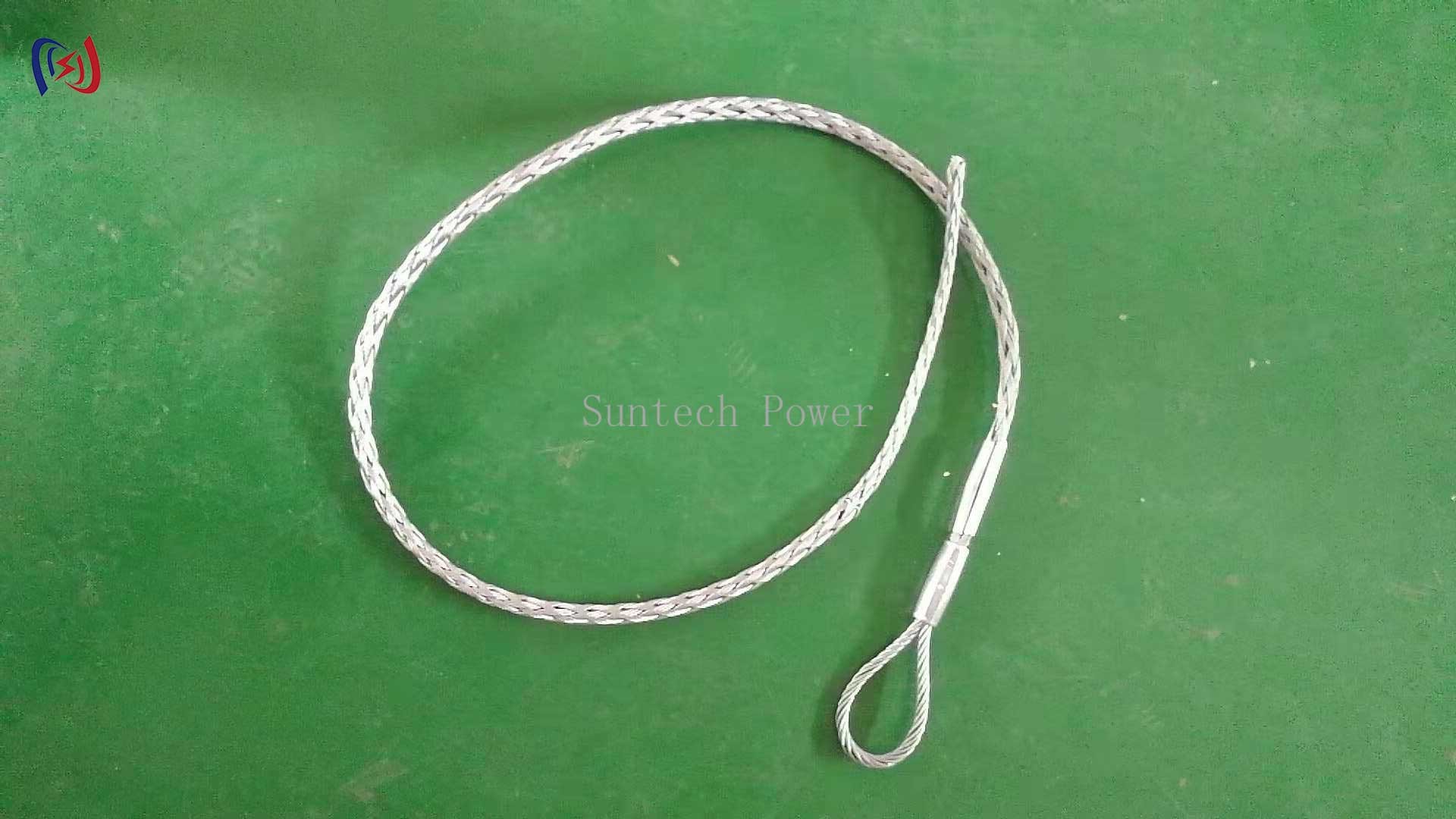

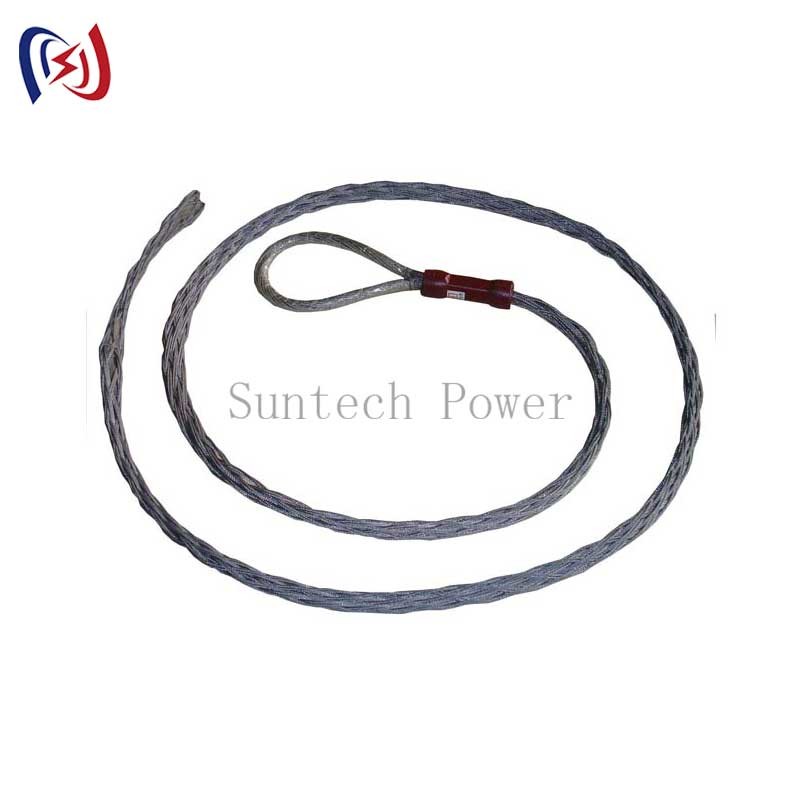

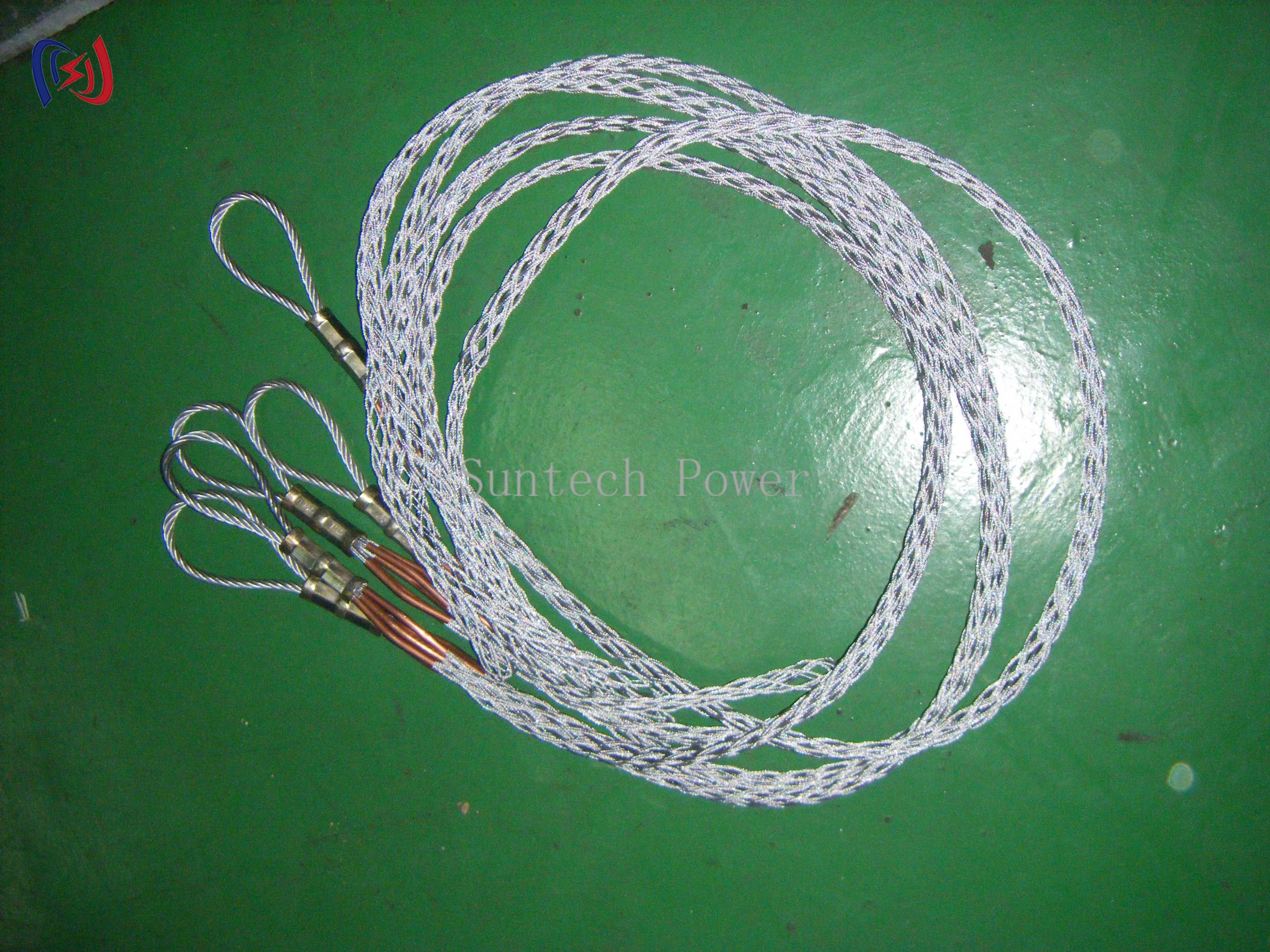

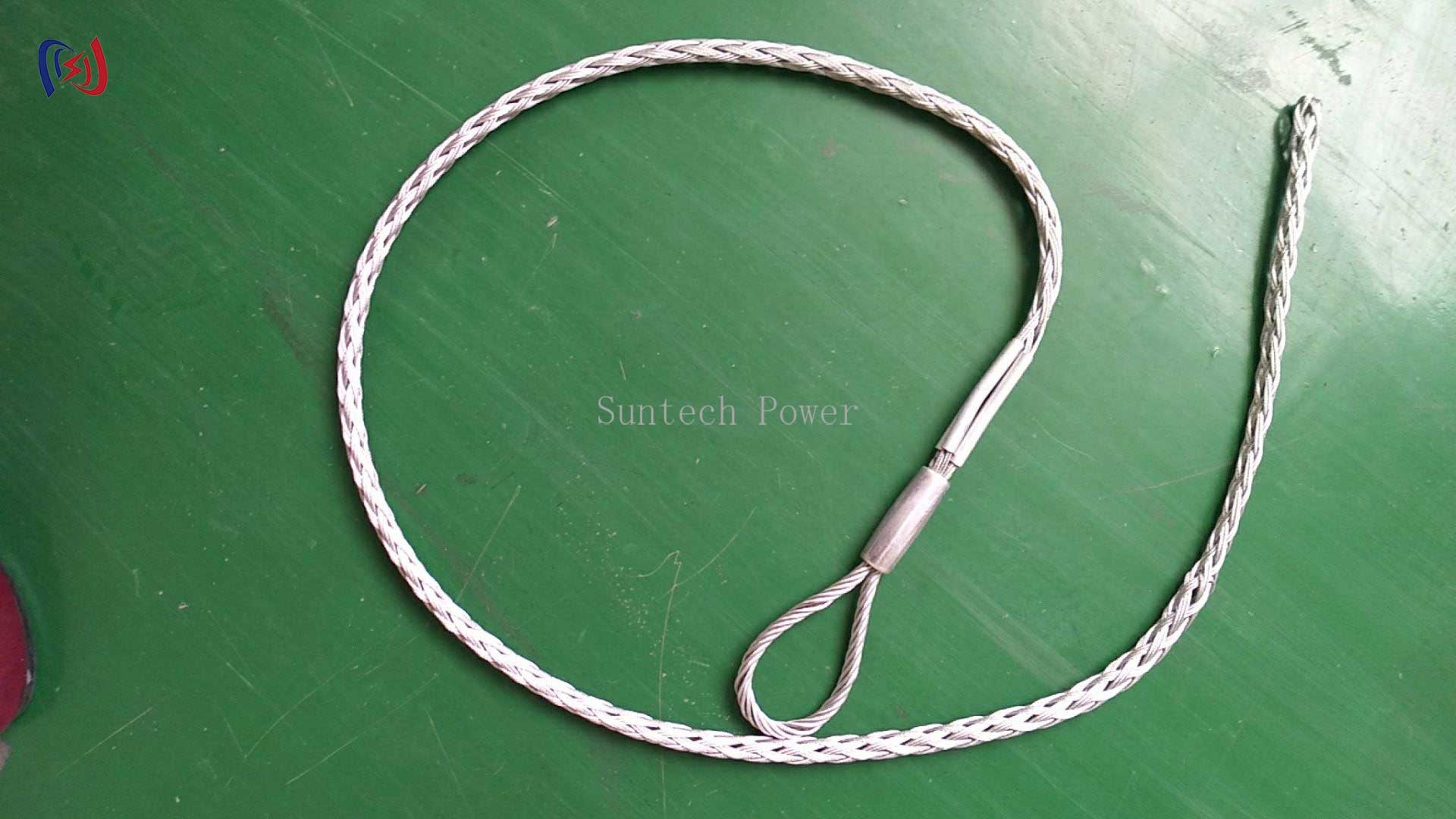

The head-type and double head-type temporary mesh sock joints are specifically designed to temporarily connect the aluminum steel or copper conductors to the pulling rope.

The head-type temporary mesh sock joints are specifically designed to temporarily connect the aluminum steel or copper conductor to the pulling rope. They consist of variable pitch steel wires which effectively distribute the gripping effect on the conductor.

Feature

1. As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench.

2. The most ideal tool for electric power construction.

3. Apply to ADSS or OPGW cable contruction

Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.

Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.

Item NO.		Model	Applicable Optical Cable Diameter (mm)	Rated Load (KN)	Length (m)
Single head	Double head	Model	Applicable Optical Cable Diameter (mm)	Rated Load (KN)	Length (m)
17141	17141S	SLE(S)-1	Φ7-11	10	1.4
17142	17142S	SLE(S)-1.5	Φ11-15	15	1.4
17143	17143S	SLE(S)-2	Φ15-17	20	1.4
17144	17144S	SLE(S)-2.5	Φ17-22	25	1.4
