Feature 1. High strength, light weight, and good looking. 2. It smoothly can pass through the corners, pulley, tension machine, traction machine and other equipments. Applicatoin Fixed Joint Anti-twist Connector is suitable to traction of connecting anti-twisting wire rope.In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Item number | Model |
Rated Load (KN) |
Main Size (mm) |
Weight (Kg) |
||||

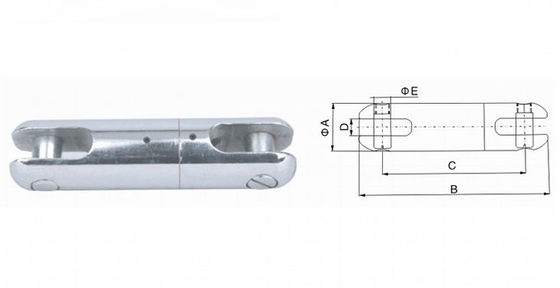

A | B | C | D | E | ||||
17121 | SLX-0.5 | 5 | 19 | 61 | 40 | 8 | 9 | 0.20 |
17122 | SLX-1 | 10 | 30 | 100 | 70 | 12 | 13 | 0.40 |
17123 | SLX-2 | 20 | 35 | 120 | 90 | 14 | 14 | 0.55 |
17124 | SLX-3 | 30 | 37 | 129 | 95 | 16 | 16 | 0.65 |
17125 | SLX-5 | 50 | 42 | 154 | 116 | 18 | 17 | 1.50 |
17126 | SLX-8 | 80 | 57 | 220 | 165 | 24 | 22 | 2.40 |
17127 | SL130 | 130 | 62 | 248 | 192 | 26 | 24 | 3.50 |
17128 | SL180 | 180 | 75 | 294 | 222 | 26 | 26 | 7.20 |
17129 | SL250 | 250 | 85 | 331 | 251 | 30 | 30 | 10.5 |
17130 | SL250V | 250 | 80 | 323 | 243 | 30 | 30 | 8.0 |
