It is applicable to connecting anti-twisting steel rope for traction operation. it has small size, light weight ,it can pass through the corners, pulley, tension machine, traction machin and other equipment.
*Suitable for the connection of towing operation with no twisting wire rope.
*Small volume,light weight,can smoothly through the corners,pulley,tension machine,traction machine.
*Application:Anti- bends Connector is suitable to traction of connecting anti-twisting wire rope.
*Features:High strength, light weight, and good looking.
It can smoothly go through the machine traction pulley and the tension machine.

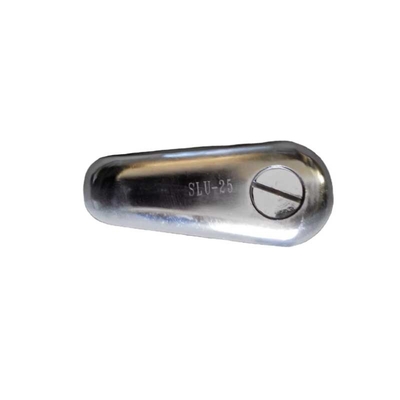

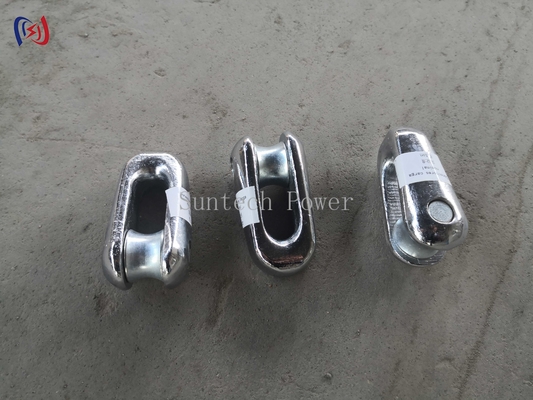

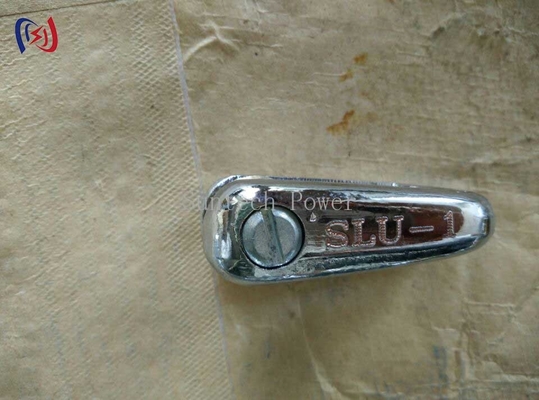

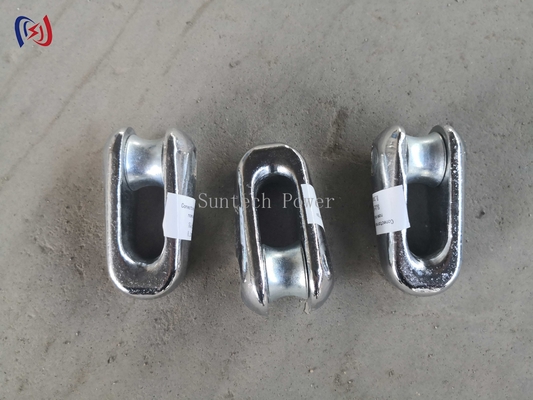

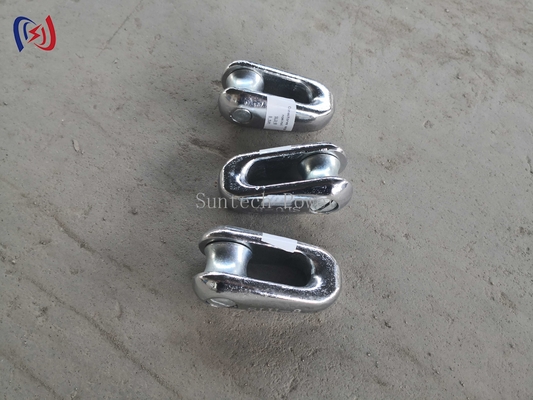

SLU-5 50KN Fixed Joints U Shape Pilot Wire Connectors For Cable Pulling
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Fixed Joints U Shape Pilot Wire Connector Data Sheet
Model | Main size(mm) | Rated load(KN) | Weight(kg) | |||||
A | B | C | d | D | E | |||
SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
SLU-25 | 80 | 178 | 44 | 30 | 35 | 72 | 250 | 3.0 |
SLU-28 | 80 | 178 | 44 | 30 | 35 | 72 | 280 | 3.0 |
SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
