Application

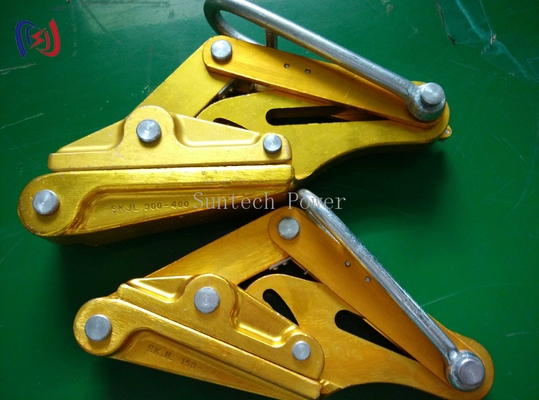

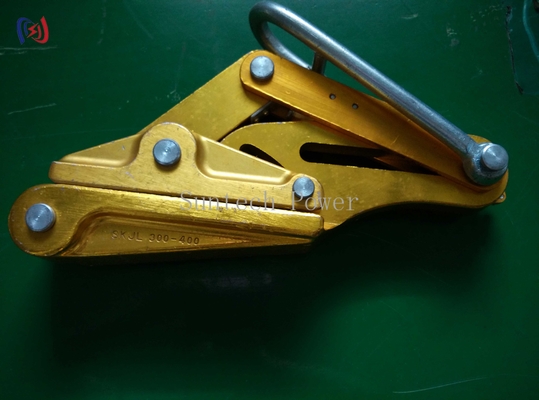

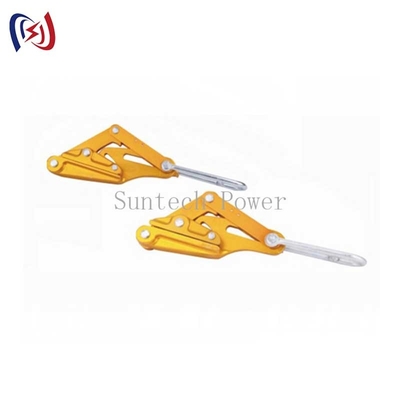

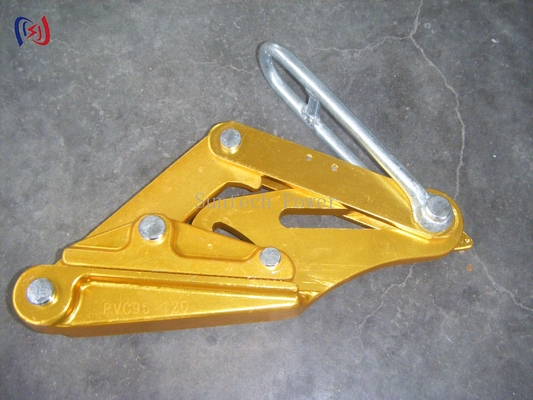

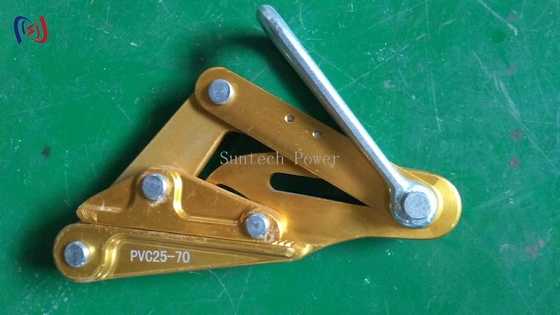

Aluminum alloy conductor gripper,cable wire grips for different conductors is applied to adjusting sag in erecting wire and sagging.
The product is forged of high strength aluminum alloy, compact and light weight.
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Speicifications
Item number | Model | Rated Load(KN) | Applicable Conductor(LG) | Applicable Wire Diameter(MM) | Max Open(MM) | Weight(KG) |
13192 | SKJL-1 | 10 | 25-70 | Φ10-Φ14 | 15 | 1.4 |
13202 | SKJL-1.5 | 15 | 95-120 | Φ14-Φ20 | 22 | 3 |
13212 | SKJL-2 | 20 | 150-240 | Φ20-Φ25 | 27 | 4 |
13213 | SKJL-2.5 | 25 | 300-400 | Φ25-Φ32 | 34 | 4 |
13214 | SKJLA-3 | 30 | 500-630 | Φ32-Φ37 | 39 | 4 |
