Name: High Performance Conductor Stringing Tools Last Pulley Block With Side Opening For Easy Convenient Tightening
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SH30J
Price: 285,715.00 USD
Availability: InStock

High Performance Conductor Stringing Tools Last Pulley Block With Side Opening For Easy Convenient Tightening

1 PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item No.: 12191-12193

Model: SH30J

Rated Load: 30-80KN

Sheave Diameter: 140-180mm

Sheave Width: 36-56mm

Weight: 5.3-16.5KG

Warranty: 1 Year

Highlight:

High Performance Conductor Stringing Tools

Side Opening Conductor Stringing Tools

Easy Tightening Conductor Stringing Tools

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO9001

Model Number: SH30J

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 7-15days

Payment Terms: L/C,T/T

Supply Ability: 1000 PCS/Month

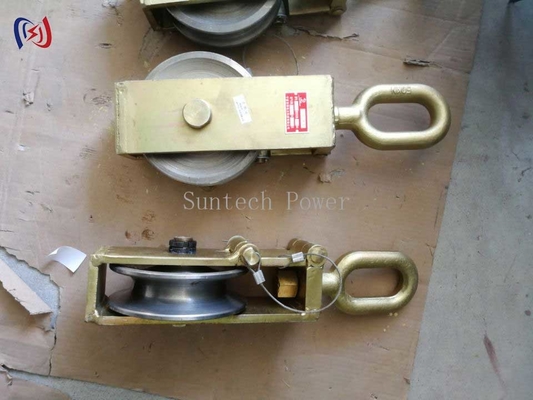

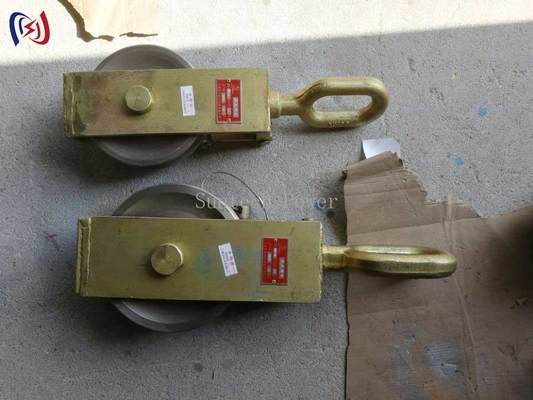

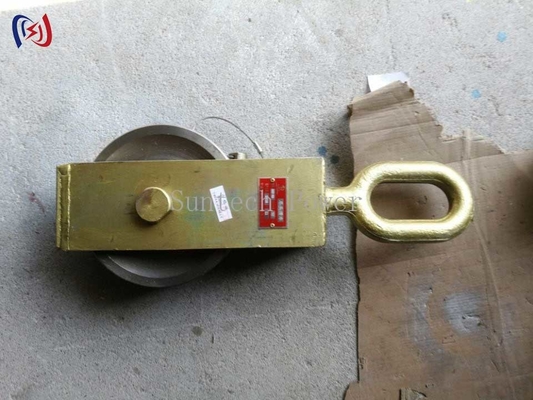

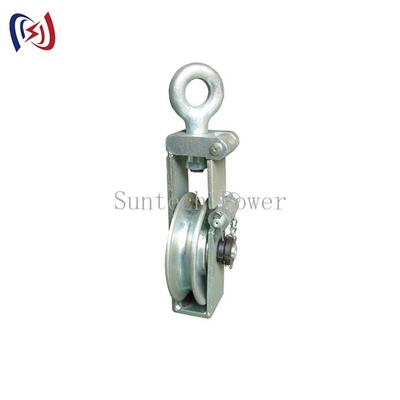

Gallery

High Performance Conductor Stringing Tools Last Pulley Block With Side Opening For Easy Convenient Tightening

Product Description

Stringing Tools Terminal Pulley Block, Ending Pulley block it is to tighten up conductor, the last pulley block's feture is the side board can open, it is convenient to construct.

Technical Parameters

Item number	12191	12192	12193
Model	SH30J	SH50J	SH80J
Rated load (kN)	30	50	80
Diameter of sheave (mm)	Φ140	Φ160	Φ180
Width of sheave (mm)	36	48	56
Weight (kg)	5.3	9.0	16.5

High Performance Conductor Stringing Tools Last Pulley Block With Side Opening For Easy Convenient Tightening 0
