High Performance Conductor Stringing Tools for Fast and Accurate Power Line Stringing Operations
Features Gallery Product Description Chat Now
Features
Specifications
Item No.: 20101-20104
Cable Diameter: 8-20mm
Rated Load: 16-45KN
Weight: 3.8-5.6KG
Warranty: 1 Year
Highlight:

High Performance Power Line Stringing Tools

,

Accurate Power Line Stringing Tools

,

Fast Power Line Stringing Tools

Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO9001
Model Number: OPGW
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 7-15days
Payment Terms: L/C,T/T
Supply Ability: 1000 PCS
Product Description

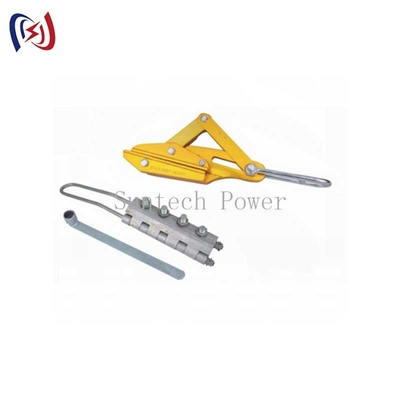

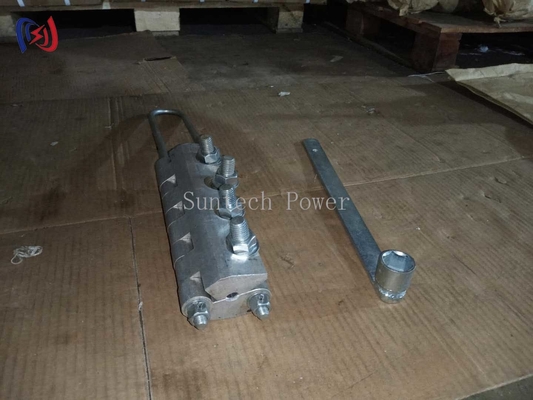

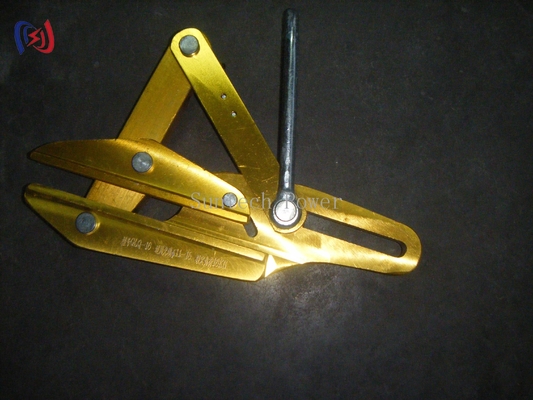

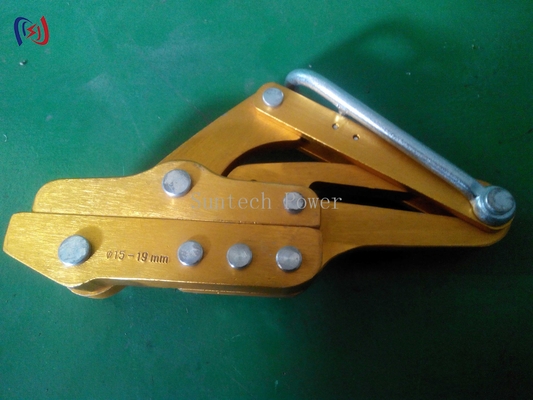

Come Along Clamp Feature

1. The body is forging of high strength aluminum alloy and it can protecr the OPGW effectively, using the bolt not to slip line and hurt the line.
2. Need to specify when ordering diameter and fiber cable models.
3. All gripping jaws are produced with new technology to increase jaw life.


Come Along Clamp Applicatoin
They are for holding the OPGW overhead optical ground wire, cable diameter is the same as grip size, in order to ensure clamping firmly, reduce the pressure of clamped parts cable is clamped part and protect the inside fiber of cable not to be damaged.

Come Along Clamp Technical Data

Item number

Cable Diameter

(MM)

Rated Load

(KN)

Weight

(KG)

20101 Φ8-20 25 3.8
20102 Φ20 45 3.8
20103 Φ11-15 16 5.6
20104 Φ15-17 16 5.6
