Name: Three Nylon Sheaves Overhead Line Conductor Stringing Blocks Stringing Of Transmission Line
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SH80S
Price: 285,715.00 USD
Availability: InStock

Three Nylon Sheaves Overhead Line Conductor Stringing Blocks Stringing Of Transmission Line

1set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Three Sheaves Stringing Block

Item No.: 10266

Rated Load: 5KN

Weight: 2.8KG

Warranty: 1 Year

Highlight:

Three Nylon Sheaves Stringing Blocks

Overhead Line Stringing Blocks

Transmission Line Stringing Blocks

Basic Infomation

Place of Origin: Ningbo, China

Brand Name: Suntech

Certification: ISO9001

Model Number: SH80S

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 1-2 Weeks

Payment Terms: L/C, T/T

Supply Ability: 200units/month

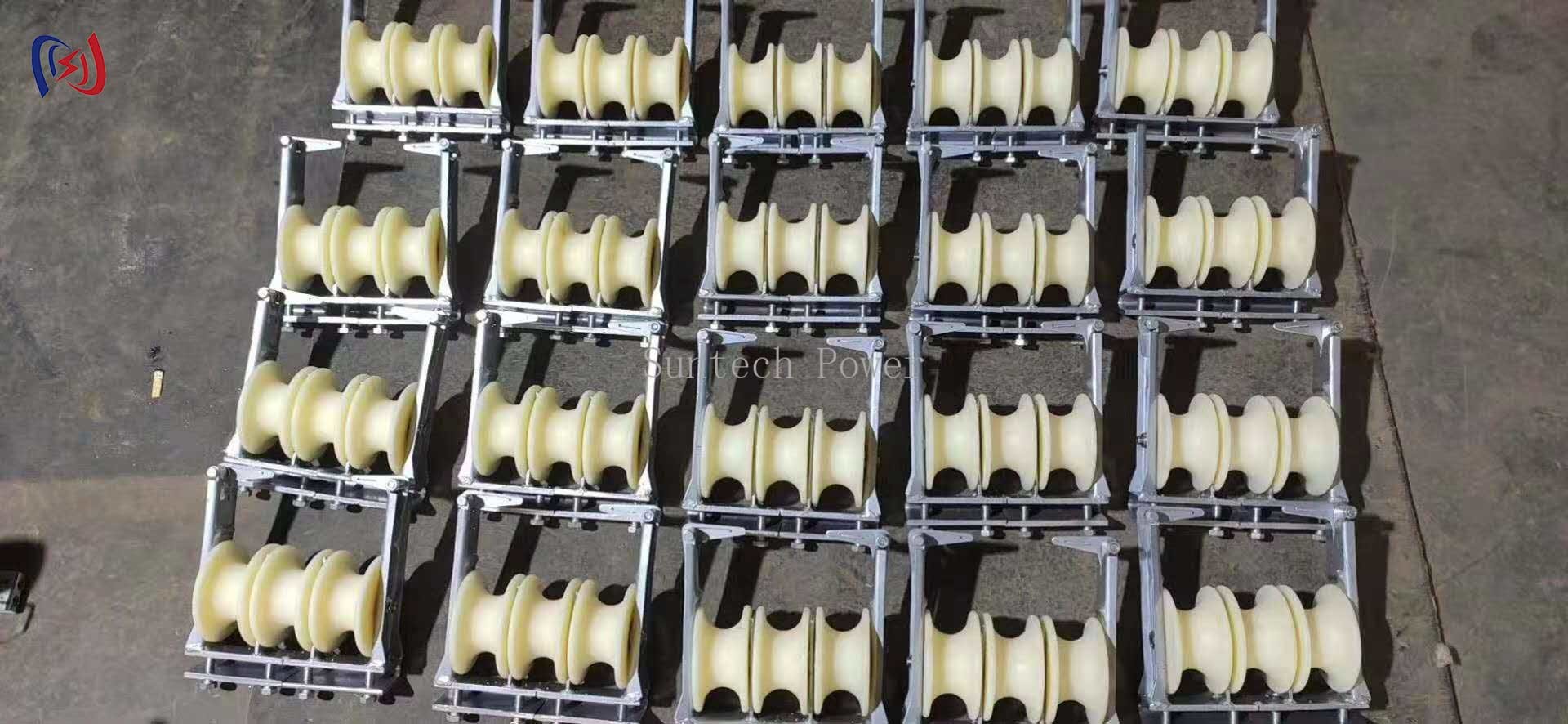

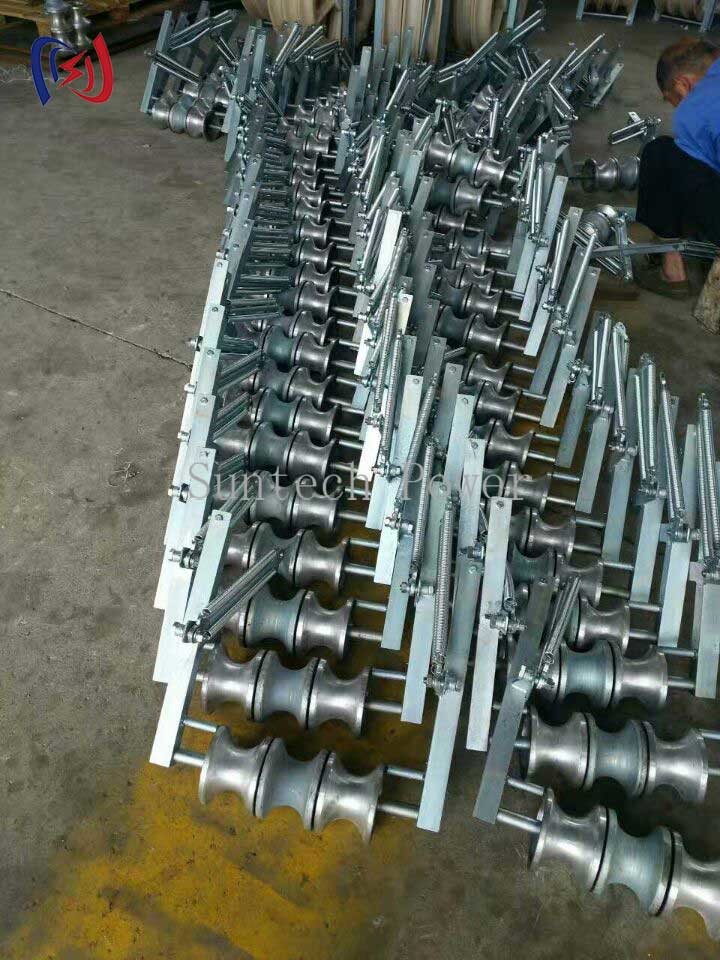

Gallery

Three Nylon Sheaves Overhead Line Conductor Stringing Blocks Stringing Of Transmission Line

Product Description

Three Nylon Sheaves Overhead Line Conductor Stringing Blocks Stringing Of Transmission Line

Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,

Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,

Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric

power construction. At the same time, agents of various imported construction tools and power equipment.

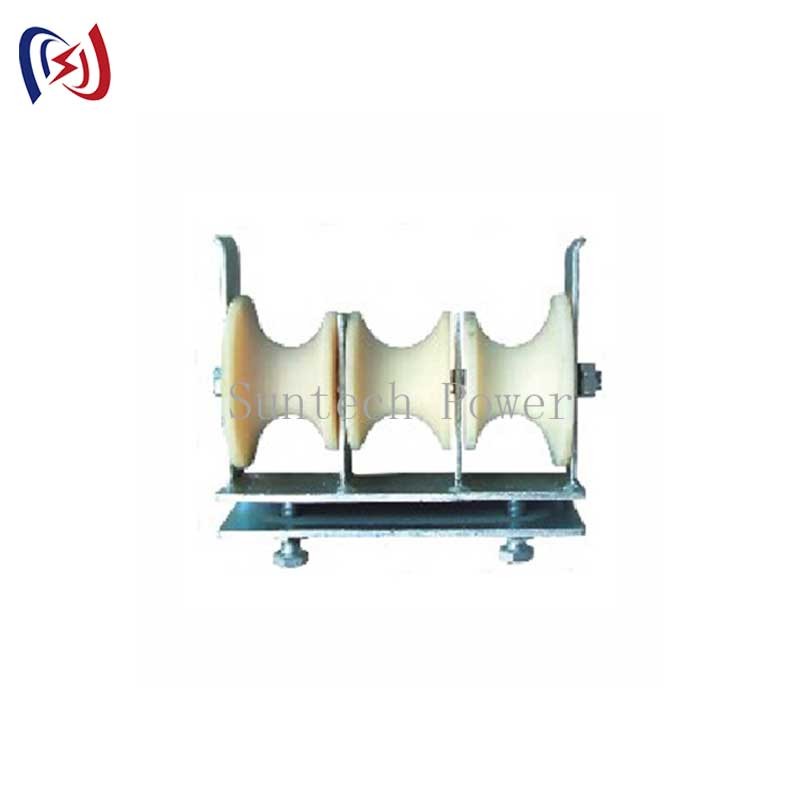

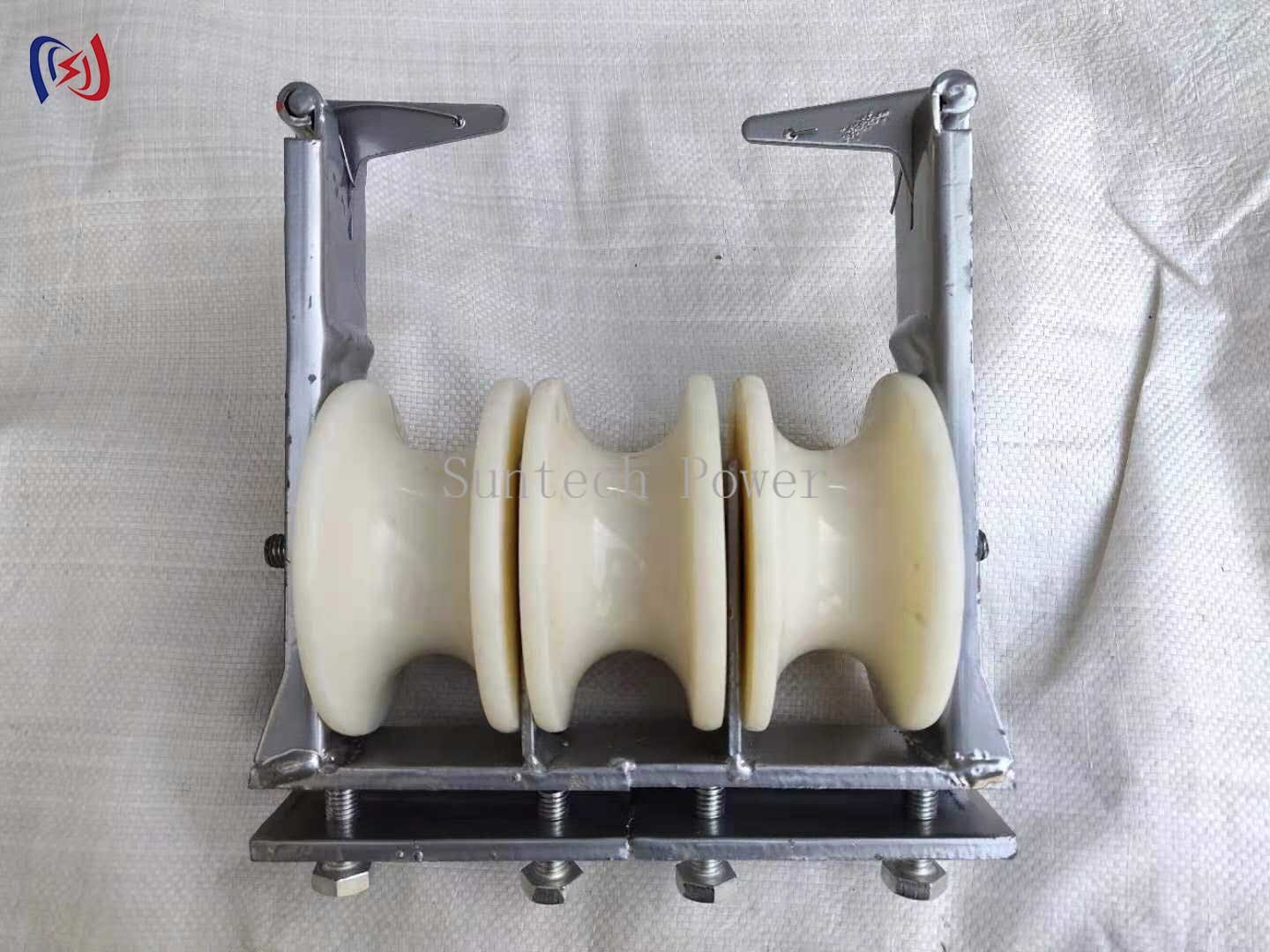

This triple bundle stringing block and pulley board can be adapted to the angle iron of less than 90 degrees.

When applied in line construction, our product can pull three bundles of conducting wire with small cross section each time.

Triple bundle stringing block and pull board are made of aluminium alloy/ MC nylon mounted on ball bearings; the groove

is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel.

The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D).

Grounding device orcomplete conductive sheaves can be supplied on demand.

Use: Applied in one pulling three bundlecross-sectional conductors in line construction and working with max angle iron∠90

Product Table

Item Number	Model	Rated Load (kN)	Weight (kg)	Remark
10226	SH80S	5	2.8	Nylon sheave

Three Nylon Sheaves Overhead Line Conductor Stringing Blocks Stringing Of Transmission Line 0
