Aluminum Alloy Conductor Gripper Come Along Clamp For Transmission Line

1set
MOQ
Negotiable
Price
Aluminum Alloy Conductor Gripper Come Along Clamp For Transmission Line
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Aluminum Alloy Conductor Gripper
Item No.: 13221-13229A
Rated Load: 7-80KN
Applicable Conductor: LGJ25-LGJ1120
Max. Open: 14-48mm
Weight: 1-18KG
Warranty: 1 Year
Highlight:

Aluminum Alloy Conductor Gripper

,

Come Along Clamp Conductor Gripper

,

Transmission Line Conductor Gripper

Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO9001
Model Number: SKL-7
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 1-2 Weeks
Payment Terms: L/C, T/T
Supply Ability: 200units/month
Product Description

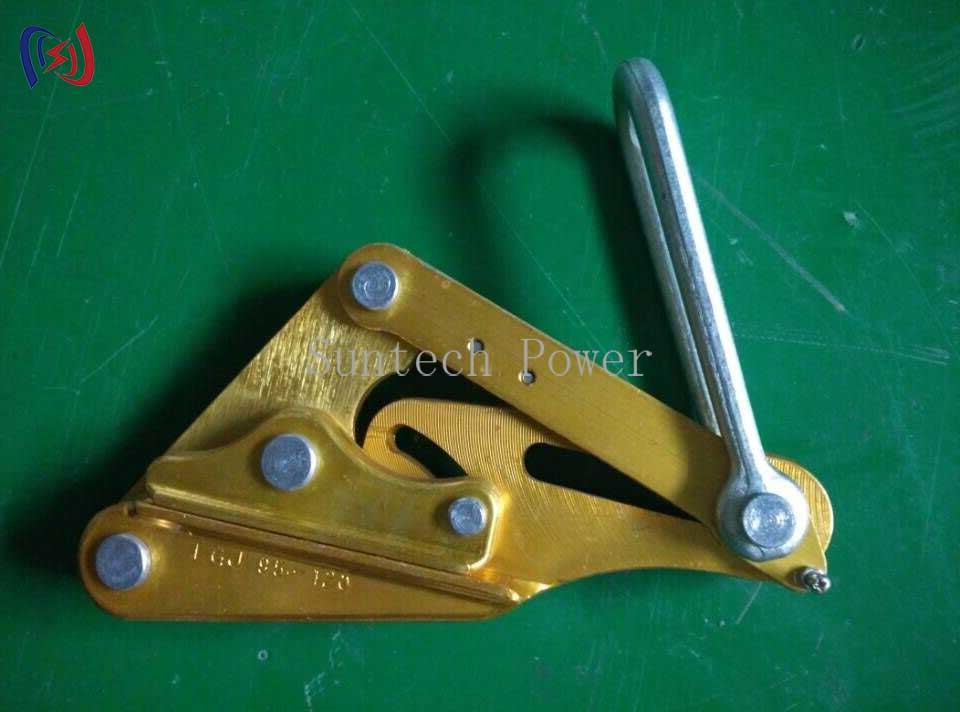

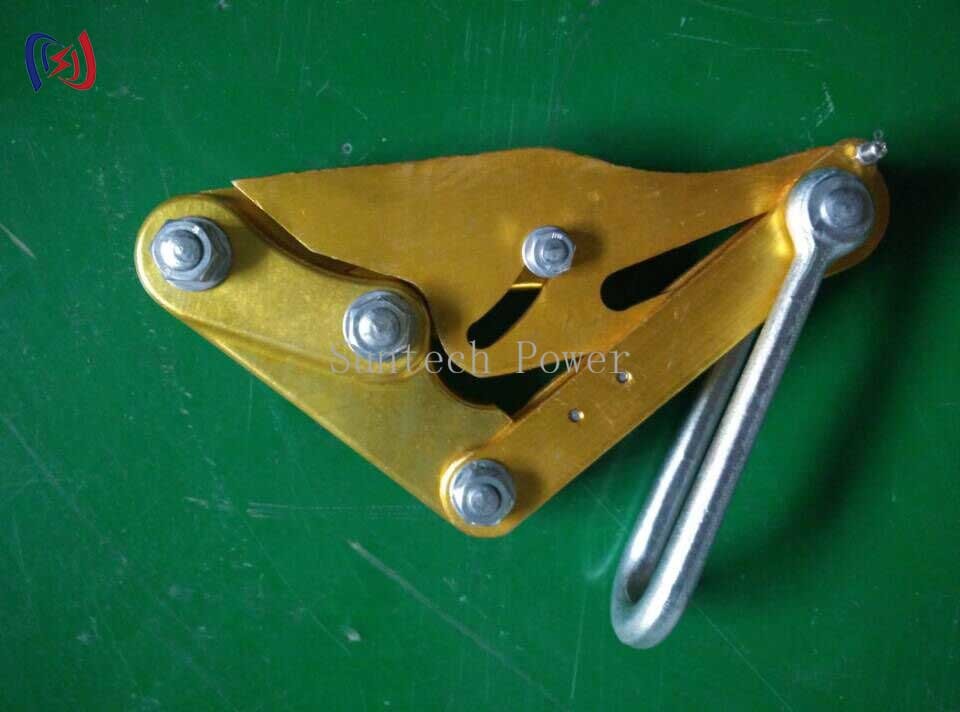

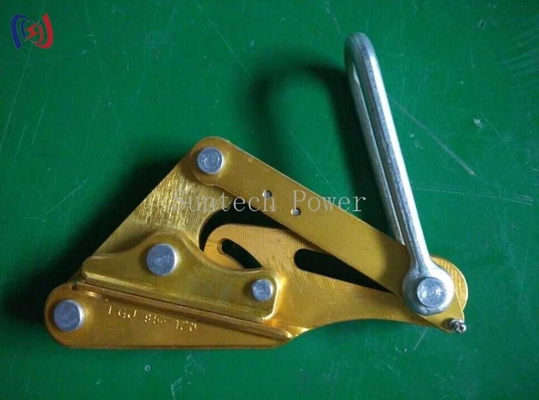

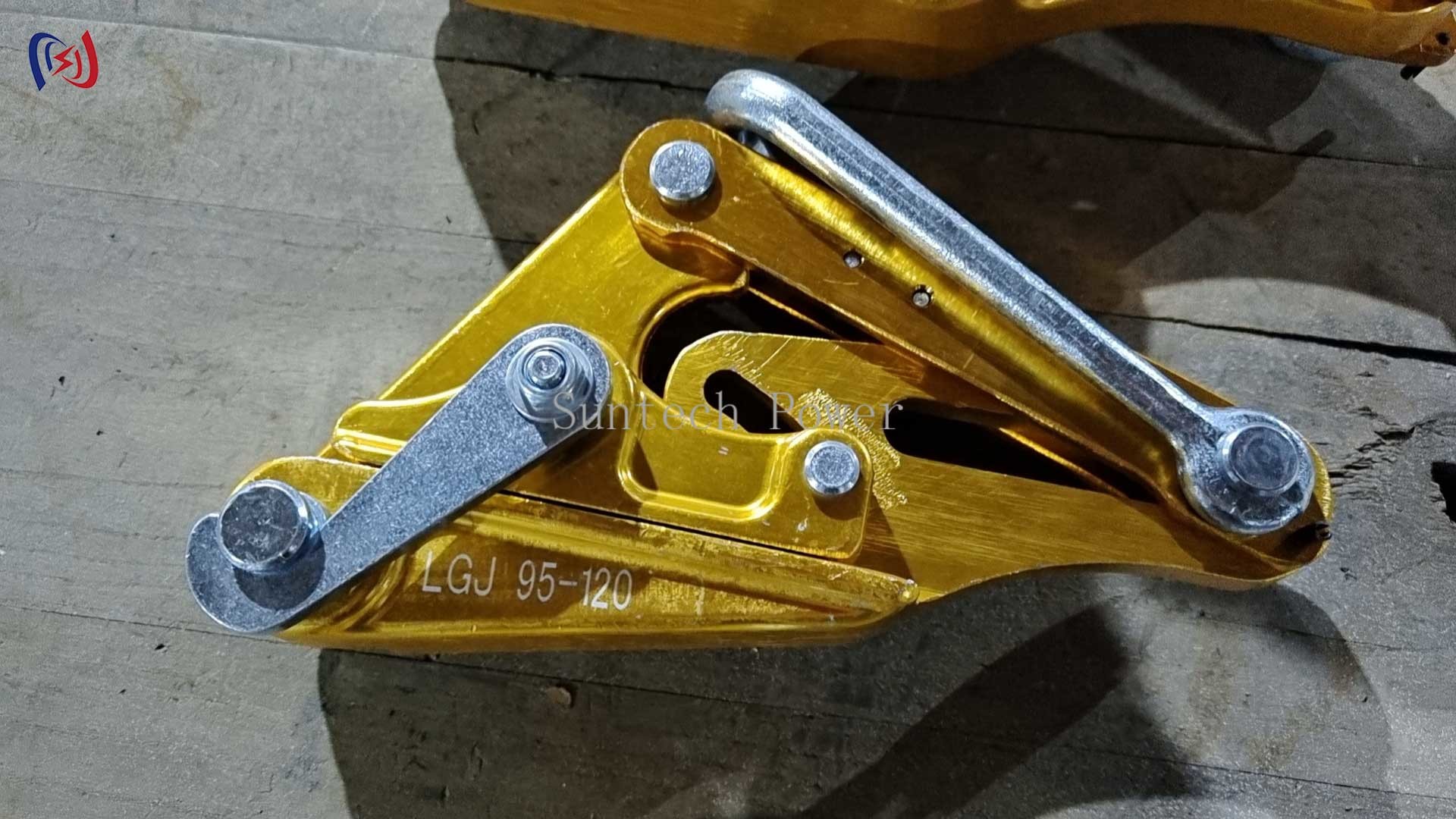

Aluminum Alloy Conductor Gripper Come Along Clamp For Transmission Line



Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,

Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,

Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric

power construction. At the same time, agents of various imported construction tools and power equipment.



Feature: product is forged of high strength aluminum alloy with small size and light weight
Configuration: Apply to adjusting the sag and tensioning the conductor wire in power lines construction.

Quick Information:

1) Aluminum alloy conductor gripper

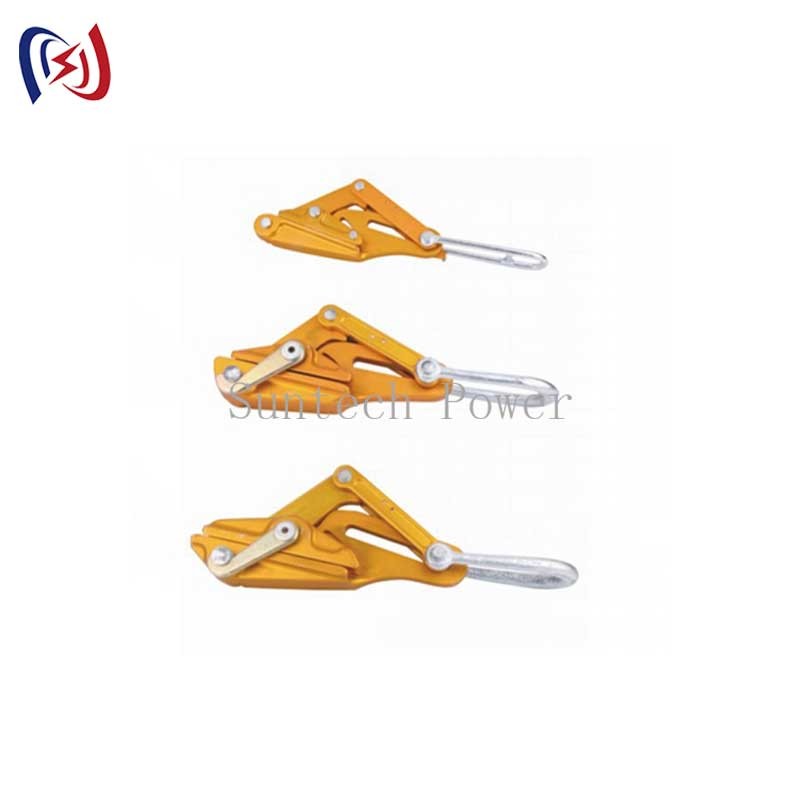

2) two types, one is with hook, pls find the photos

3) Apply for LGJ300-400 conductor

4) Max open 32mm

5) Donghuan brand

6) Transmission line stringing tools and accessories.



Aluminum Alloy Conductor Gripper Products

Item number Model (KN) Applicable Conductor (MM) (KG)
Rated Load Max Open Weight
13221 SKL-7 7 LGJ25-70 14 1
13222 SKL-15 15 LGJ95-120 18 1.4
13223 SKL-25 25 LGJ150-240 24 3
13224 SKL-40 40 LGJ300-400 32 4
13225A SKL-50C 50 LGJ500-630 36 6.6
13224A SKL-40A 40 LGJ400 32 4.3
13225 SKL-50A 50 LGJ500 34 7
13226 SKL-50B 50 LGJ630 36 7.3
13227 SKL-60 60 LGJ720 38 9.2
13228 SKL-70 70 LGJ900 42 14
13229 SKL-80 80 LGJ1000 45 18
13229A SKL-80A 80 LGJ1120 48 18



Aluminum Alloy Conductor Gripper Come Along Clamp For Transmission Line 0
