Customizable Conductor Stringing Blocks For Earth Wire Spreading And Accessory Installation

1set
MOQ
Negotiable
Price
Customizable Conductor Stringing Blocks For Earth Wire Spreading And Accessory Installation
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: Flame-Retardant, Anti-Static
Surface Treatment: Oxygenation
Rated Load: 10kn
Fluctuating Stroke (mm): 65
Specification: Nylon Or Aluminum
Application: Construction Works
Net Weight: 13kg
Width Of Sheave (mm): 30
Highlight:

Customizable Conductor Stringing Blocks

,

Earth Wire Spreading Stringing Blocks

,

Accessory Installation Conductor Stringing Blocks

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: GJ25-70
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 1-2 Weeks
Payment Terms: L/C, T/T
Supply Ability: 200units/month
Product Description

Customizable Conductor Stringing Blocks for Earth Wire Spreading and Accessory Installation

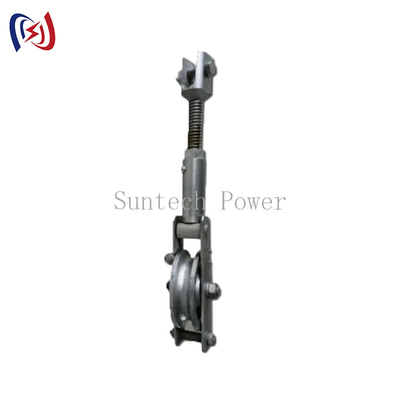

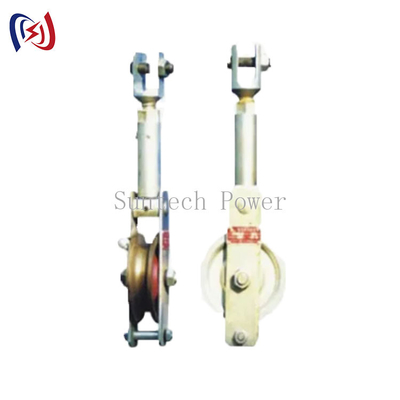

Adjustable earth wire stringing pulley block can be not only used to spread the earth wire but also to utilize the fluctuating screw mandrel to install the accessories. Its item number is 10251 and 10252. 10251 type product adopts aluminum sheave, and 10252 type product adopts nylon.



Uses: Used to spreading earth wires andcan mount accessories on fluctuating screw mandrel.



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either



Item number Applicable stranded Wire Rated load(kn) Diameter of sheave(mm) Width of sheave(mm) Fluctuating Stroke(mm) Remark
10251 GJ25-70 10 Φ100 30 65 Cast steel sheave
10252 GJ25-70 10 Φ100 30 65 Nylon sheave
