Construction Traction Line Lifting Floor Pole Screw Ground Anchor Earth Drill

1set
MOQ
Negotiable
Price

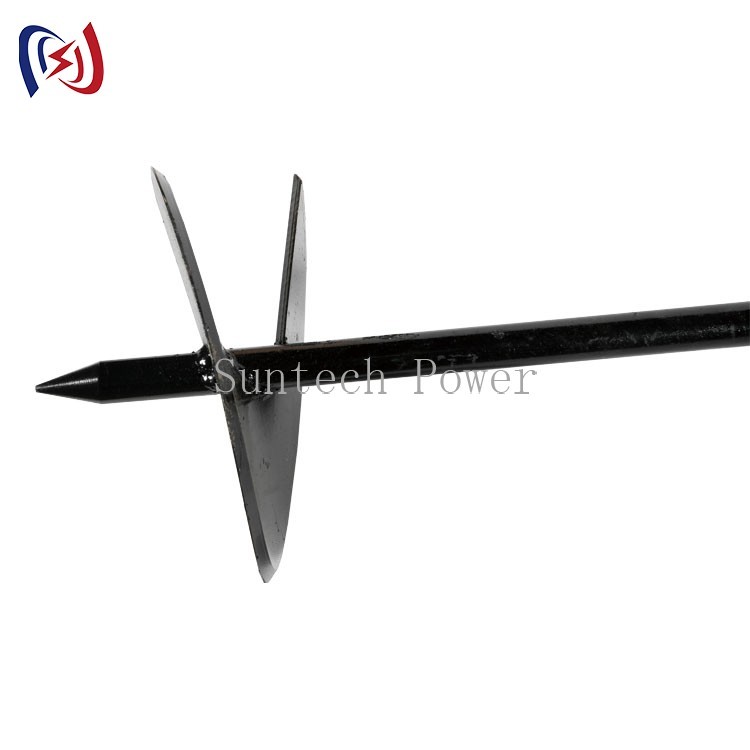

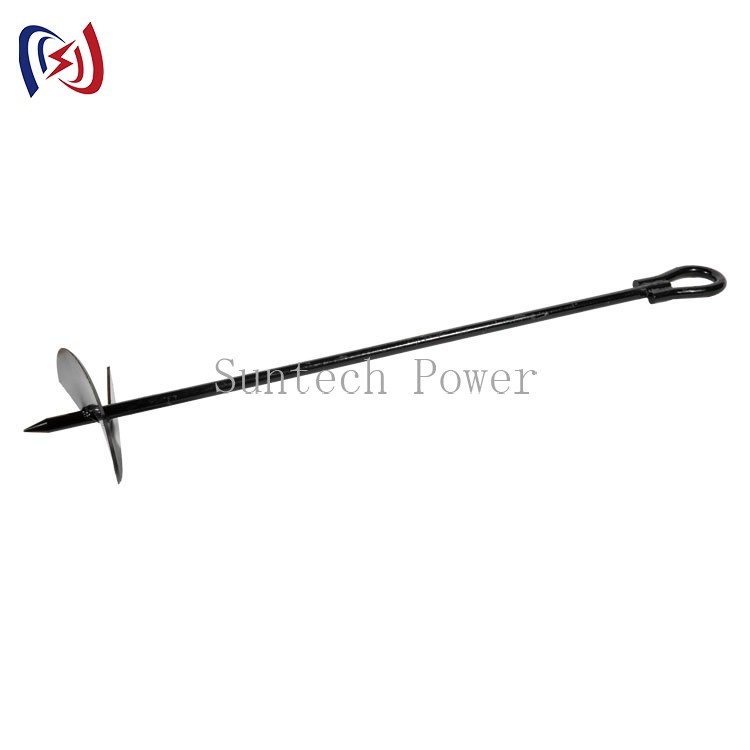

Construction Traction Line Lifting Floor Pole Screw Ground Anchor Earth Drill
Features Gallery Product Description Request A Quote
Features
Specifications
System Of Measurement: Metric
Metrial: Steel
Capacity: 5T
Diameter: 300mm
Type: Heave Duty Anchor
Weight(kg): 10.2-21
Highlight:

transmission line stringing tools

,

overhead transmission line stringing tools

,

overhead line stringing tools

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: SDZ1
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 1-2 Weeks
Payment Terms: L/C, T/T
Supply Ability: 1000sets /month
Product Description

Construction Traction Line Lifting Floor Pole Screw Ground Anchor Earth Drill



Application

1.Anchoring utility poles and similar structures. 2.Supporting guyed masts, such as radio transmission towers. 3.Tethering marine structures, such as floating docks and pipelines. 4.Structural support of temporary buildings and structures,such as circus tents and outdoor stages. 5.Landscape, anchoring trees, often semi-mature transplants. 6.General security, as in anchoring small aircraft.



Usage

Apply to anchor temporarily in line construction.



Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,

Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,

Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric

power construction. At the same time, agents of various imported construction tools and power equipment.



Item number Model

Rated load

(KN)



Breaking load

(KN)

Maximum

depth

(mm)

Disk

diameter

(mm)

Length

(mm)

Weight

(mm)

02101

SDZ1

10

20 1100 Φ250 1300 10.2
02102 SDZ3 30 60 1500 Φ300 1710 14.6
02103 SDZ5 50 100 1500 Φ350 1710 21.0



Construction Traction Line Lifting Floor Pole Screw Ground Anchor Earth Drill 0
