Home /Products/Hydraulic Puller Tensioner/30KN Hydraulic Puller Tensioner For OPGW ADSS Transmission Project Suntech Power Tools

30KN Hydraulic Puller Tensioner For OPGW ADSS Transmission Project Suntech Power Tools

1set
MOQ
Negotiable
Price
30KN Hydraulic Puller Tensioner For OPGW ADSS Transmission Project Suntech Power Tools
Features Gallery Product Description Request A Quote
Features
Specifications
Model No.: SA-YZM7.5/0.75T
Application: Electric Equipment
Max Tesnion: 3T
Engine: HONDA Gasoline GX390
Safety Features: Emergency Stop Button, Overload Protection, Automatic Tension Control
Max Linespeed: 5km/h
Highlight:

30KN Hydraulic Puller Tensioner

,

OPGW Hydraulic Puller Tensioner

,

Suntech Power Tools Hydraulic Puller Tensioner
Basic Infomation
Place of Origin: Ningbo，China
Brand Name: Suntech
Certification: ISO9001:2008
Model Number: SA-YZM7.5/0.75T
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 10 work days
Payment Terms: L/C, T/T
Supply Ability: 10sets /month
Product Description



30KN Hydraulic Puller Tensioner for OPGW ADSS Transmission Project Suntech Power Tools



Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.



Technical Data:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

Model Type YQZ30
Overall Size(MM) 3560 ×1600 ×2220
Weight(KG) 1700
Max Tension(KN) 30
Max Continual Tension(KN) 25
Max Velocity(km/h) 5
Diameter of Tension wheel(mm) 1200
Solt No. of Tension wheel 5
Rated Pulling Force (KN) 30
Max Pulling Speed(km/h) 5 km/h
Max dia of wire Φ32mm
Engine Power 11KW/ 2200 r/min
Voltage 12V



Feature:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

1. Bullwheel with wearproof MC nylon lining segments.

2. infinitely variable tension control and constant tension conductor stringing .

3. it adapt Italian reducer .

4. spring applied hydraulic released brake acts automatically in case of hydraulic

failure to ensure safety



Main component:

30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project

1. Engine :Domestic water –cooled engine .

2. Main pump/motor ,Chinese famous branded pump and motor .

3. Reducer :RR(Italian )

4. Radiator: AKG

5. Hydraulic instrument : WIKA

6. It can choose import engine.

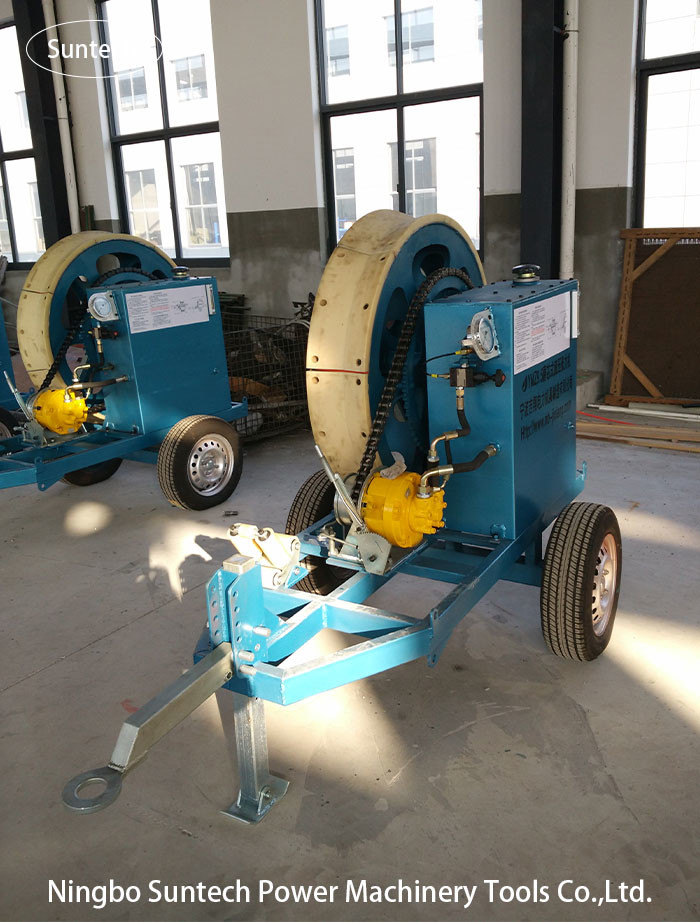

30KN Hydraulic Puller Tensioner For OPGW ADSS Transmission Project Suntech Power Tools 0

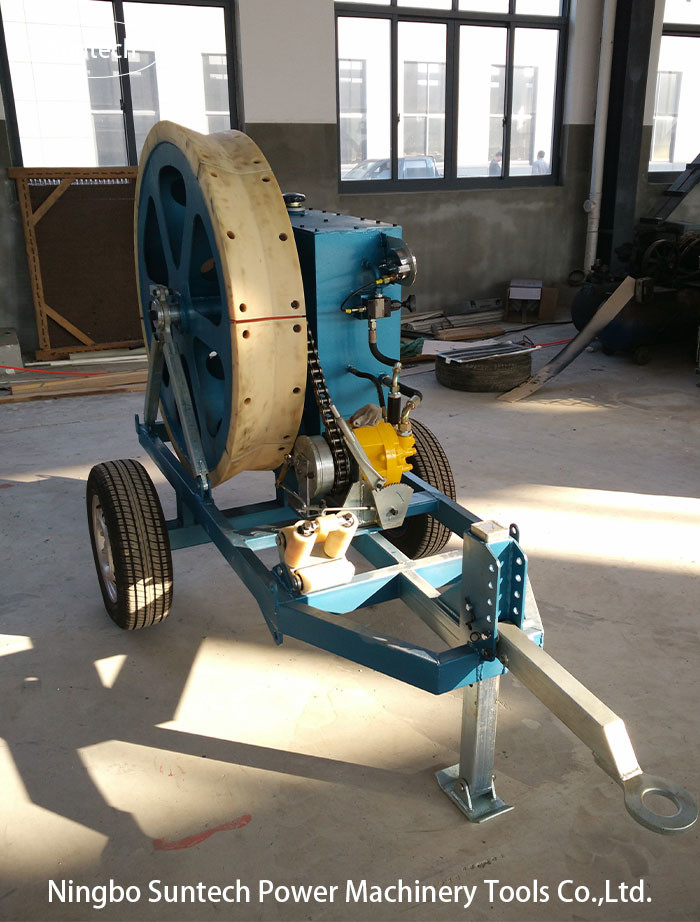

30KN Hydraulic Puller Tensioner For OPGW ADSS Transmission Project Suntech Power Tools 1
Tag:

hydraulic cable tensioner

power line tensioner

30KN Hydraulic Puller Tensioner
