Place of Origin: | Ningbo,China |
Brand Name: | Ningbo Suntech Power |
Certification: | ISO9001:2008 |
Model Number: | 9915/9916/9917 |
Minimum Order Quantity: | One Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Export Standard Wooden Case With Fumigation Free |
Delivery Time: | 1-2Weeks |
Payment Terms: | T/T |
Supply Ability: | 20units/month |
Used Field: | Electrical Test Apparatus | Application: | AC Hipot Test |
---|---|---|---|
Test Output: | AC 10KV | Advantage: | Programmable |
Optional Current Range: | 10mA,20mA,50mA | Output Waveform: | Sine Wave |
Test Accuracy: | ±(2% Reading +5V) | Test Timer: | 0.0-999.9s |
High Light: | Programmable AC Hipot Test Equipment,10KV AC Hipot Test Equipment,Household Appliances AC Hipot Tester |

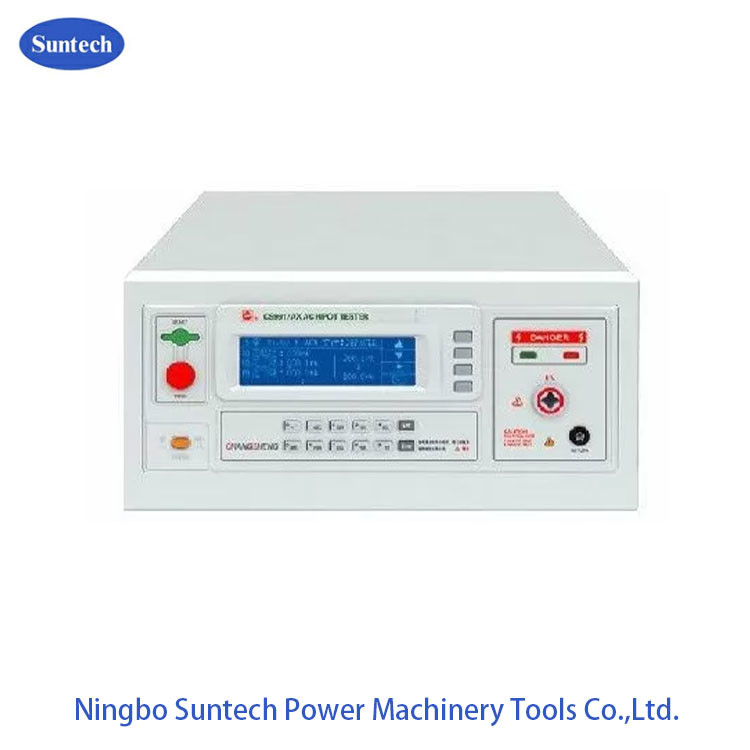

Portable Type AC Hipot Tester , AC 10KV Safety Tester , Programmable
I. Product Description
The 9915/9916/9917 Hipot tester is a high voltage and programmable safety tester with an output voltage of AC10kV. It can be widely used in the safety tests of household appliances, transformer, electrical equipments and components.
II. Refer Standard
III. Technical Data and optional model:
Model | 9915 | 9916 | 9917 | ||||||
AC | Output voltage | range | 0.500kV~9.999kV | ||||||
accuracy | ±(2%reading+5V) | ||||||||
resolution | 1V | ||||||||
Output capacity | 100VA | 200VA | 500VA | ||||||
Rated current | 10mA | 20mA | 50mA | ||||||
Lower limit current range | 0~10mA | 0~20mA | 0~50mA | ||||||
Current gear | 200uA,2mA,10mA | 200uA,2mA,20mA | 200uA,2mA,20mA,50mA | ||||||
Output waveform | sine wave | ||||||||
Output waveform distortion | ≤ 2% (no load or pure resistive load) | ||||||||
Crest factor | 1.3~1.5 | ||||||||
Output signal type | DDS+ amplifier | ||||||||
Voltage rise time | 0.3s ~ 999.9s 0 = voltage rise time off | ||||||||
Test time | 0.3s ~ 999.9s 0 = continuous test | ||||||||
Voltage drop time | 0.3s ~ 999.9s 0 = voltage fall time off | ||||||||
Interval time | 0.0s~999.9s 0=Interval time off | ||||||||
Output voltage mode | N mode, G mode | ||||||||
Voltage meter | range | 0.500kV~10.00kV | |||||||
accuracy | ±(2%reading+5V) | ||||||||
resolution | 2.5V | ||||||||
Display value | RMS value | ||||||||
Current meter | range | AC | 0 ~ 10mA | 0 ~ 20mA | 0 ~ 50mA | ||||
resolution | AC | 200uA gear:0.1uA, 2mA gear:1uA, 10mA,20mA gear:10uA; 50mA gear:10uA | |||||||
Test accuracy | ≥2mA is ±(2%+5 words), <2mA is ±(3%+5 words) | ||||||||
Error Offset function | The current of the test leads and accessories can be subtracted. | ||||||||
Test mode | GND mode: RETURN terminated chassis FLOAT mode: RETURN terminal is not connected to the chassis | ||||||||
Timer | range | 0~999.9s | |||||||
resolution | 0.1s | ||||||||
accuracy | ±(0.1%+50ms) |
VI.Supply list
Contact Person: Peter
Tel: 86-13958364836
