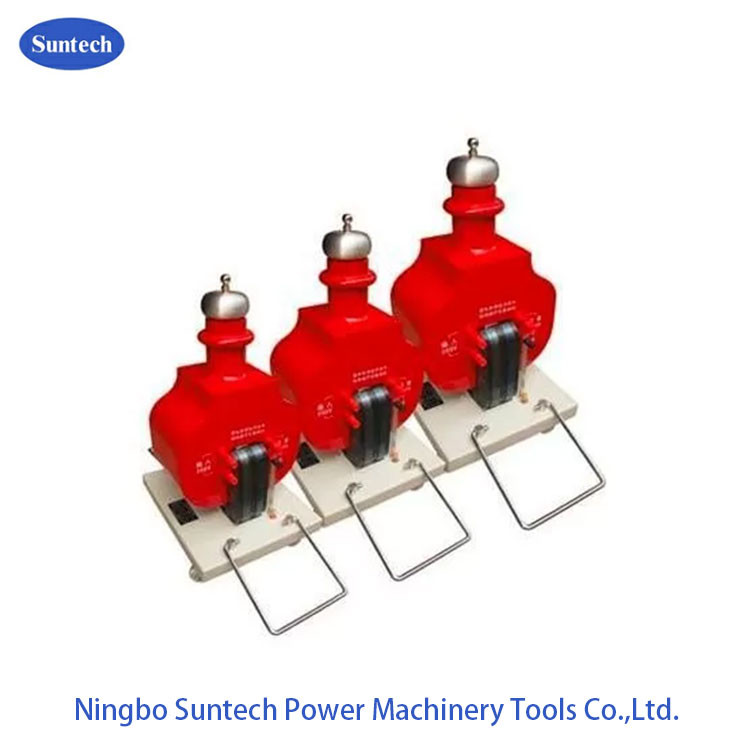

CQSB-6KVA/60kKV AC dielectric test set, is a portable, microprocessor controlled instrument. Equipped with solid test transformer, used for AC dielectric test at main power frequencies while mobile application is required. such as aerial lift platforms and trucks.

For manual type AC dielectric test set, Microprocessor controlled is the biggest feature. Pure digital sampling circuit, make its display high accuracy and resolution; Besides, its protection are based on microprocessor calculated, instead of traditional relay triggered. Therefore, its protections take less time for their action.

II. Functions

1. Microprocessor controlled
2. Digital Display
3. High Accuracy
4. High Resolution;
5. Auto Timing
6. Fully Protections
7. Alarm
8. Auto Timing

III. Product Features:

1. Microprocessor controlled;
2. Mobile style, test at once no any waiting while positioned;
3. Test transformer can be lifted by two persons, control module can be moved on one cart;
4. Manual Operating Mode, digital control and display;
5. Automatic timing while test voltage reach its preset value;
6. Protection: Over-current, Over-voltage, Zero position;

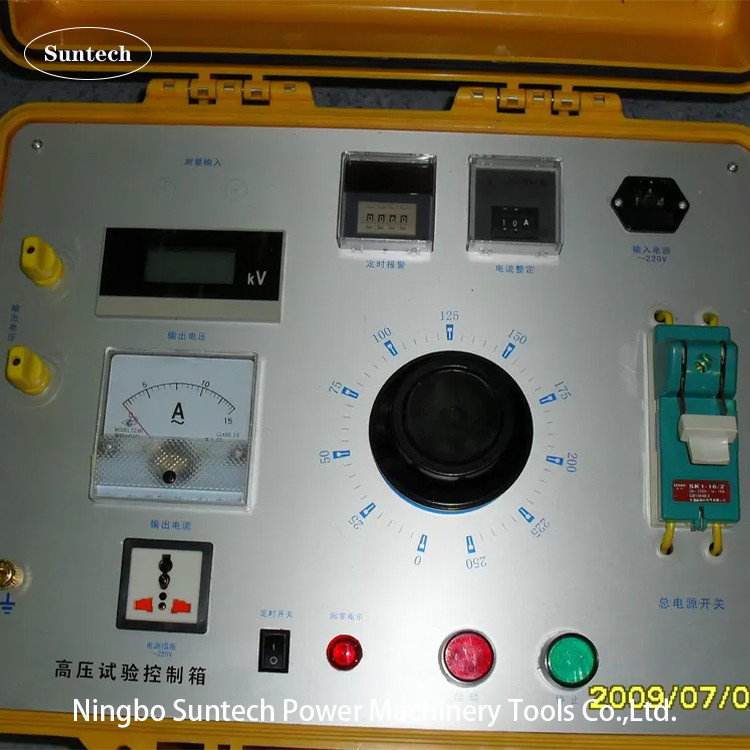

7. Live display of High Voltage(HV) and Low Current normally, Low Voltage(LV) and High Current also can be displayed by touch button on the panel;
8. Sound and light alarm.

​IV. Technical Specifications:

1. Input voltage: AC220V 50/60Hz
2. Output:0-50kVac,100mA, Sine Wave, Option for DC high Voltage Output:0-70KV
3. Duration 10 minutes within rated capacity and voltage;
4. Rated capacity: 5kVA
5. Temperature rise of Test transformer surface, less than 55℃
6. No-load current＜4%
7. Operating temperature: -10℃～45℃
8. RH:85% at 25℃,no dew
9. Above Sea Level≤1000m
10. Size & Weight
11. For test transformer:300X210X530mm,28KG
12. For control module: 400X300X200mm,18Kg
