Dry Type Transformer Test Set, High Voltage AC Test Equipment Large Power Output

Portable AC Hipot Test Set , Dry Type Test Transformer Set , High Voltage AC Test Equipment

I. Product Description

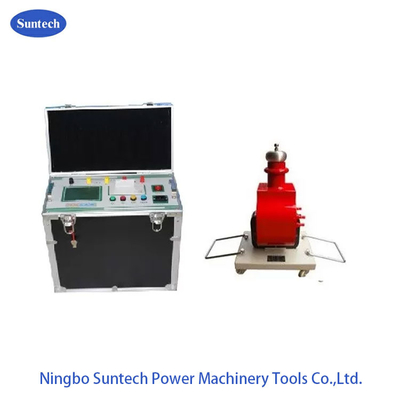

CQSB-3KVA/50kKV AC dielectric test set, is a portable, microprocessor controlled instrument. Equipped with solid test transformer, used for AC dielectric test at main power frequencies while mobile application is required. such as aerial lift platforms and trucks.

CQSB series ultra light power frequency testing transformer is mainly used for power frequency AC or DC voltage withstand test for 6KV~35KV and below HV motor ,electrical equipment,electrical components,insulation materials, especially for field handover,overhauling and preventive test of LV and MV power electrical equipment.

II. Functions

1. Microprocessor controlled
2. Digital Display
3. High Accuracy
4. High Resolution;
5. Auto Timing
6. Fully Protections
7. Alarm
8. Auto Timing

III. Product Features:

1. AC Withstand voltage test
2. Power industry test equipment
3. Portable designed
4. On site light test set
5. Special for 35KV below power equipment test
6. Special for power motor AC and DC test

VI. Optional Types

1. Oil immersed testing transformer
2. SF6 inflatable testing transformer
3. Dry-type epoxy resin testing transformer
4. Optional FKDK type dry compensation current or voltage reactor

V.Scope of application

1. 35KV and below power frequency AC or DC voltage withstand factory test for sorts of HV electrical equipment, components,insulation materials
2. 35KV and below electric equipment on handover,overhauling and preventive field test
3. AC and DC hipot test for 10KV and below power motor；
4. 35KV and below insulating tools and insulating boot(gloves).

VI. Mainly components

1. Standard equipped:control cabinet, testing transformer
2. Optional: compensation inductor,voltage divider,rectification silicon stack, protective resistance, discharging rod, protective sphere gap,micro-am meter,etc.

VII. Advantage

1. Compact structure,small volume,light weight,convenient
2. Equipped with zero position protection and over-current protection, stable electric performance,good security.
3. Equipped with voltage timing and sound-light alarm function;easy to operate and wire.
4. Optional compensation inductor to extensible range of testing objects

​VIII. Other Technical Specifications for OEM:
