SF6 Gas Insulation AC Hipot Test Equipment AC Hipot Analyzer 80KV 100mA

Gas Insulation AC Hipot Analyzer , AC Withstand Voltage Test Set , SF6 Gas Insulation

I. Product Description

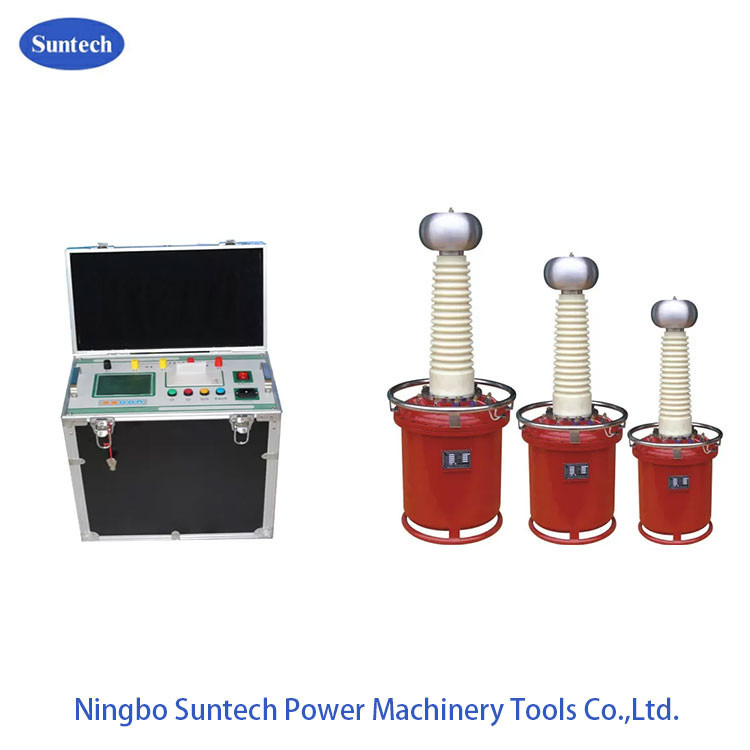

Model CQSB-8KVA/80KV, is designed for AC Dielectric test. For AC test, it works at power frequency50/60Hz. The HV booster adopts SF6 insulation to reduce weight itself than oil immersed insulation or epoxy resin insulation.

Automatic boosting, automatic timing, automatic step down, and displays pass or fail; If test fail, then break down/ARC voltage,over current could be recorded for analysis;it also can be control by computer,convenient for the consumer to use.

II. Applications:

AC test for switchgears, transformers, motors.etc;The test set is more intelligent instrument, widely used for electrical test at various factories and institutes.

III. Functions

1. SF6 gas insulation on HV booster
2. Microprocessor controlled
3. Digital Display
4. High Accuracy
5. High Resolution;
6. Auto Timing
7. Fully Protections
8. Alarm
9. Auto Timing

IV. Product Features:

1. Auto operation mode;
2. Guided Menu, easily operated even for those person no reading the user manual before
3. Boosting speed controlled at auto mode. While test voltage up to target 80%, its boosting speed will be down slowly automatically;
4. Some stages can be set up during the boost process. The equipment can be suspended at any time during the boost process. The feature is useful for operator to observe or diagnose;
5. While the test is finished, different alarm sounds indicate pass or fail test result. meanwhile, pass or fail also displayed on the screen;
6. If test fail, then break down/ARC voltage, over current could be recorded for analysis;
7. AC high current is measured directly by Rogowski powered coil;
8. Password design to prevent unauthorized operation;
9. Build-in micro-printer;
10. Strong anti- interference capacity
11. RS232 interface communication with computer,test and save report to computer;
12. Fully Protections against over current, Over voltage,Flash-over;

​V. Technical Specifications:

1. Output:0-80KVac, 100mA,sine wave,
2. Capacity:8KVA
3. Timing range: 0-999S
4. Voltage measure accuracy:≤1.5% (F.S)+3 bites
5. Currency measure accuracy:≤1.5% (F.S)+3 bites
6. Duration: 5 minutes at rated capacity
7. Input voltage:AC220V±10% 50/60Hz±1
8. Ambient temperature:－8℃～50℃
9. RH:85%, No dew
10. Sea level above: 1000 meter or below
11. Size and Weight
12. For test transformer:300X210X530mm,28KG
13. For control panel: 540X430X380mm,22Kg
