Single Phase AC Hipot Test Equipment Power Frequency Intelligent Control Unit

Power Frequency AC Withstand Voltage Test Transformer Systems , Power Frequency Intelligent Control Unit

I. Product Description :

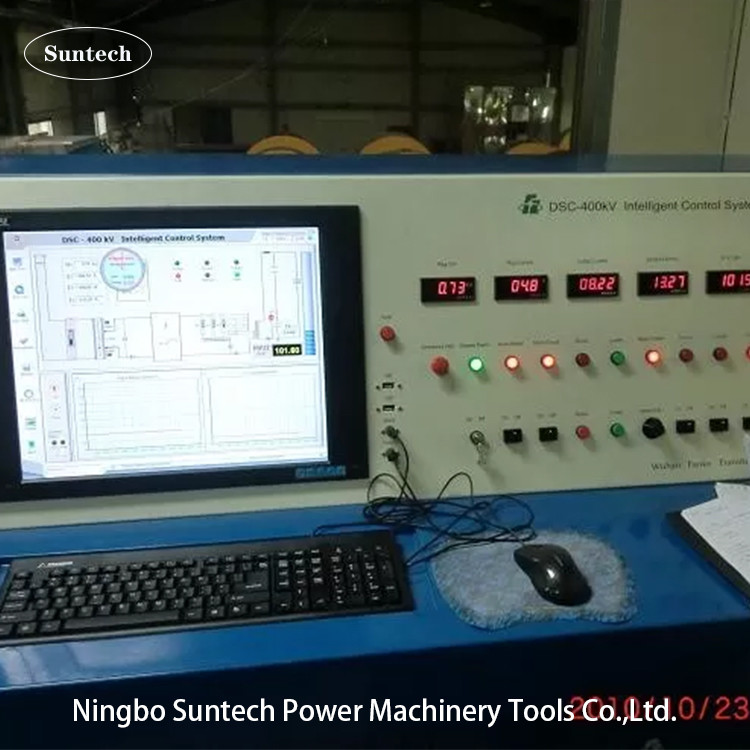

DSC series power frequency test intelligent control units, is carried out by the IPC with PLC control, and set the operation, control, monitoring and protection in one of the intelligent control system.

The unit is not only monitoring the test parameters of test objects, but also monitoring the status of their own. When there is any suggestion that the fault may be, the system immediately is protected for strengthening the security of test. Signal transmission in the system is done by the optical fiber instead of the original cable, which achieves isolation between the main portion and control portion; especially the electrical isolation between the host computer and the operator to ensure the safety both for the operator and for the test system.

II. Appication and usage

• The measurement and control unit for Power Frequency AC transformer withstand voltage test circuit.
• Replace the old traditional console to increase the efficiency of high-voltage test and enhance monitoring and protection during AC withstand voltage testing.

III. Main Components of the unit:

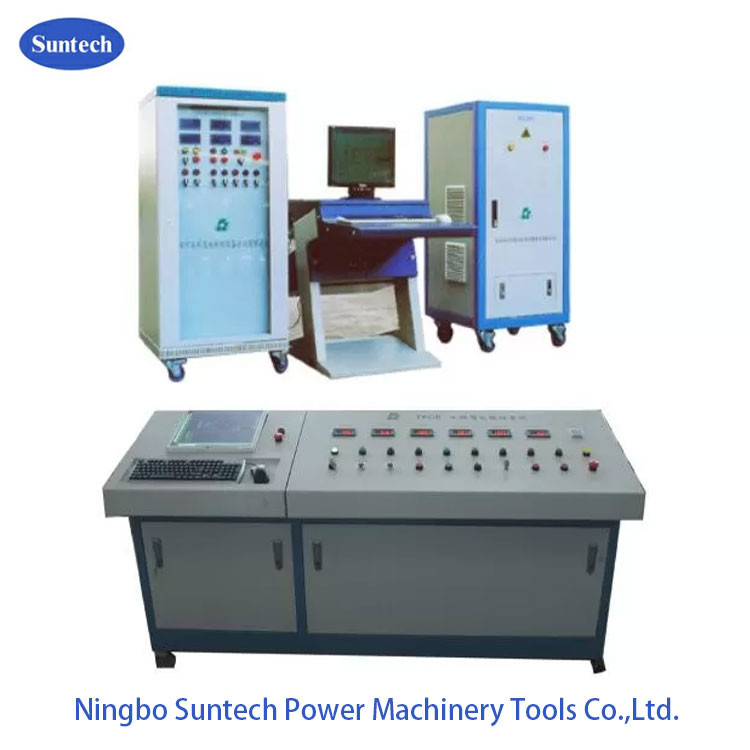

• Intelligent Resonance Control console
• Electric voltage regulator cabinet
• PLC computer (built-in designed or external layout designed ,optional)
• Connection cables group
• External alarm lights

IV. Main functions:

1.Perfect manipulative function:

• Intelligent automatic control functions
• Voltage-tracing functions during voltage withstand test
• Step-up speed controlling function
• Auto-choose for compensating reactor adding function
• Manual intervene function

2.Self-checking for real-status and display function:

• Real-monitoring, display and save for measurement data of each point
• Real-monitoring and display for the condition of each component of system
• Open test procedure programming function
• Record and save instant data and test curve if fault.
• Real-display test curve u→t and u/i→t

3.Protective function

• Fiber-optical isolation
• Flashover protection
• Over-voltage protection
• HV sampling lost protection
• Communication error protection
• HV limiting protection
• Emergency brake protection
