Place of Origin: | Ningbo,China |
Brand Name: | Ningbo Suntech Power |
Certification: | ISO9001 |
Model Number: | CHX-(L) Series |
Minimum Order Quantity: | One Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Export Standard Wooden Case With Fumigation Free |
Delivery Time: | 65~90 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 2units/3months |
Usage: | EHV CVT And CB Rutine Testing | Test Item: | AC Hipot Test And Partial Discharge Test |
---|---|---|---|
Test Voltage: | No More Than 800KV | Test Current: | No More Than 5A |
Test Frequency: | 50Hz Or 60Hz | PD Free: | No More Than 10pC At 800KV |
Duty Cycle: | 30mints Or Made By Order | Test Accuracy: | No Less Than 1.0% |
High Light: | CVT High Voltage Resonant Test System,Power Frequency AC Resonant Test System,CB Rutine AC Resonant Test System |

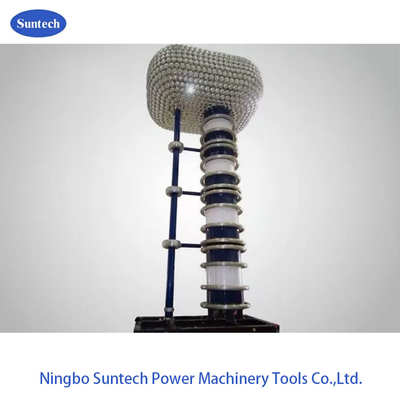

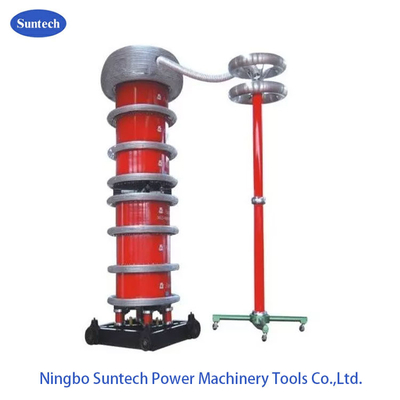

Power Frequency AC Resonant Withstand Voltage Test Set , For EHV CVT and CB Rutine Testing
I. Product Description :
CHX-(L) series HV induction regulation series resonance test system is mainly used for power frequency voltage withstand test of HV voltage electrical equipment ,special for quality testing of science research and power equipment manufacturer.Compared with traditional power frequency test transformer system with the same specification, this kinds of test system needed power supply capacity for test system
is smaller, waveform distortion smaller, higher Q value, smaller size, wider range of test objects.
II. Appication object
III. Main Components:
IV. Key features
V. General Technical data:
VII. Function
VIII.Accessories
IX. Optional model
Model | Rated voltage | Rated output current | Rated output capacity | Application for turbine generator or thermal power generator |
CHX-L-1000KVA/500KV | 500KV | 2A | 1000KVA | For 145KV and below CB or CVT |
CHX-L-1200KVA/600KV | 600KV | 2A | 1200KVA | For 252KV and below CB or CVT |
CHX-L-4000KVA/800KV | 800KV | 5A | 4000KVA | For 500KV and below CB or CVT |
Special requirement can be made by order |
