Place of Origin: | Ningbo,China |
Brand Name: | Ningbo Suntech Power |
Certification: | ISO9001 |
Model Number: | SP650E |
Minimum Order Quantity: | One Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Export Standard Wooden Case With Fumigation Free |
Delivery Time: | 10 work days |
Payment Terms: | T/T |
Supply Ability: | 10sets /month |
Usage: | Auto And Continuous Print Cable Plate Or Lable | Printing Method: | Thermal Transfer |
---|---|---|---|
Feeding Mode: | Automatic And Continuous Feeding Plate Or Single And Manual Feeding Plate | Maximum Capacity Of Plate Feeding Cassette: | Total Thickness Of All Plates ≤ 50mm, 50 Pieces Once (1mm/piece), And The Plate Feeding Cassette Is Dis-mountable, Also Realizing Single And Manual Plate Feeding |
Max Effective Printing Width: | 57mm | Max Effective Printing Length: | Plate: 550mm Label: 1200mm |
Types Of Materials: | Plate: Hard Plate (PVC.ABS) Label: Soft Label (PVC.PET) | Edit Software: | Professional Edit Software SP English Editor |
High Light: | Label Printer HV Cable Testing Equipment,57mm High Voltage Cable Testing Equipment |
Cable Plate Printer , Cable Lable Printer , Cable Testing Tools , Support English
I. Product Introduction

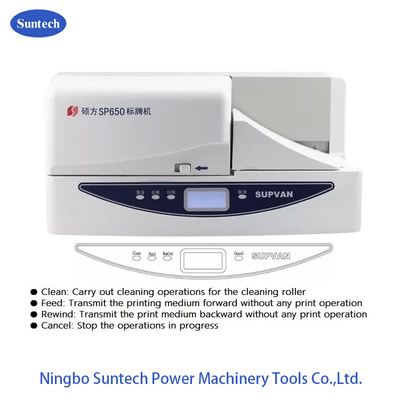

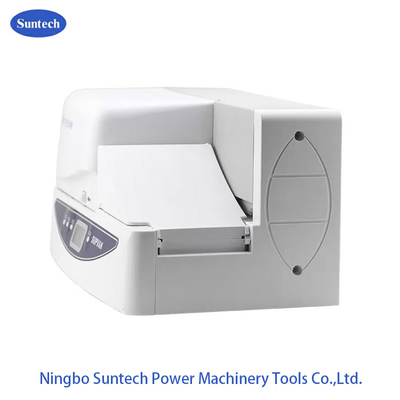

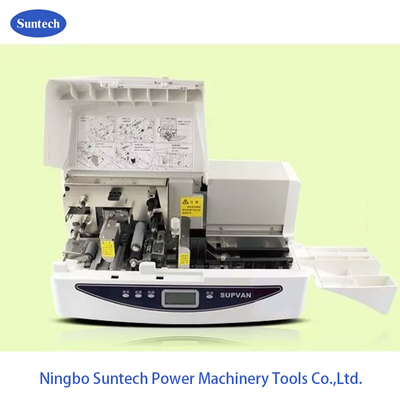

Model SP650E cable plate and lable printer is a kind of Identification marking auto tools in power project. Referred to as a kind of signage machine, after computer editing, the user can print graphic symbols, numbers, letters, English characters on PVC / ABS /aluminum alloy film plates, and special self-adhesive labels where the need for plate making .
The machine can auto and continuous print the plate or labbles to greatly improve production efficiency, and provide standard identification printing for outdoor tube wells, poles, patch panels, and cable resources. The signage machine belongs to the special equipment for equipment installation, transformation, secondary overhaul, and wiring design of integrated wiring engineering, which can meet the marking needs in power plants, electrical equipment factories, substations, power industry, telecommunications, petroleum, chemical and other fields.
II. Feature And Advantage
III. Techincal Performance
SN | Content | Performance |
1 | Model | SP650E |
2 | Resolution | 300dpi |
3 | Printing method | Thermal transfer |
4 | Display mode | LCD white backlight |
5 | Feeding mode |
Automatic and continuous feeding plate or single and manual feeding plate |
6 | Maximum capacity of plate feeding cassette | Total thickness of all plates ≤ 50mm, 50 pieces once (1mm/piece), and the plate feeding cassette is dis-mountable, also realizing single and manual plate feeding |
7 | Max effective printing width | 57mm |
8 | Max effective printing length | Plate: 550mm Label: 1200mm |
9 | Ribbon | Monochrome (seven colors optional: black, red, green, blue, gold, silver, white) |
10 | Ribbon specification | 60mm*130m black |
11 | Types of materials |
Plate: Hard plate (PVC.ABS) Label: Soft label (PVC.PET) |
12 | Material thickness | Plate:0.2mm-3mm Label: 0.2mm-1mm |
13 | Material width | Plate: 20mm-80mm Label: 20mm-80mm |
14 | Material length |
Plate: 50mm-550mm Label: 50mm-1200mm Max outside diameter of label roll of 170mm at most |
15 | Interface | USB2.0 interface |
16 |
Print speed(32*68mm plate as example) |
About 7 pieces/min, and about 400s for 50 plates printing |
17 | Cleaning mode |
Automatic cleaning, dis-mountable cleaning roller for manual cleaning is also allowed with cleaning tape |
18 | Edit software | Professional edit software SP Editor |
19 | Compatible system | Windows XP/Vista/WIN7/WIN8 |
20 | External dimension | W440×D250×H214mm |
21 | Weight | 11kgs |
22 | Operating environment | Temperature 15℃~35℃, humidity 15%~80% RH |
23 | Working Voltage | AC200-240V50-60HZ (city power) |

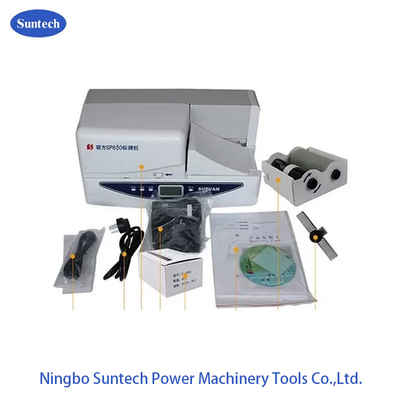

IV.Consumables List optional
Consumables | Kind | Specification | Model |
ribbon | black ribbon | 130 meters/roll | SP-R130B |
white ribbon | 100 meters/roll | SP-R100W | |
red ribbon | 130 meters/roll | SP-R130R | |
silver ribbon | 130 meters/roll | SP-R130S | |
blue ribbon | 130 meters/roll | SP-R130BU | |
green ribbon | 130 meters/roll | SP-R130GR | |
golden ribbon | 130 meters/roll | SP-R130GL | |
sticker | 50mm silver sticker | 50m/roll Light silver wire | SP-L50050S |
70mm silver sticker | 50m/roll Light silver wire | SP-L70050S | |
plate | 32x68plate | Single hole 32mm*68mm | SP-32681 |
30x60 plate | two holes30mm*60mm | SP-30602 | |
Cleaning Cartridge | Cleaning Cartridge | 6 meters/roll | SP-CF |
Aluminum alloy box | Optional | SP-LB01 | |
Division I provide customized services for signs, stickers and die-cut sticker, please contact us! |
V. Printed plate or lable sample
VI. Optional Ribbon Box Sample
