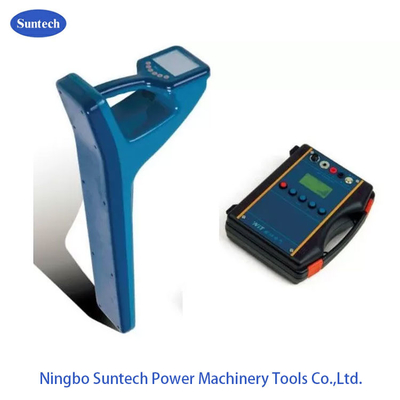

Easy Radiation High Voltage Cable Testing Equipment Underground Cable Identifier

Underground Cable Identifier Tracing Tester , Undergrounding Pipe And Cable Location Tester

I. Application

1. It is used to locate the trace and depth of all kinds metallic pipe,on/off power cable identification

2. Right/wrong indication: patented clamp detecting to show the result directly

3. Easy grounding fault locating

4. Automatic depth and current detection.

5. Historical curve record, show the changes directly.

6. Excellent anti-interference ability

7. High power output. Max 10w,four grades, easy operate,

8. Automatic impedance matching and protection

9. Flexible power supply: Internal battery,AC220V or cigar lighter in car (12V)

II. Technical Data

Receiver part

1. input mode:clamp input,Internal receiving loop,1k Mini Sensor,8k Mini Sensor,A Frame support

2. Receiving frequency:500Hz, 1kHz, 8kHz, 33kHz, 66kHz, 93kHz,power frequency,radio frequency,fault locating frequency

3. Pipe detection mode: Intelligent Peak Method (Wide): Suitable for active detection.
Peak Method: Suitable for passive detection. Narrow Method. Null Method.
4. Cable Identification mode: Clamp intelligent identification. Mini sensor identification.

5. HMI:320x240 dots LCD.

6. Internal battery:Lithium cell battery, 14.8V,7Ah

7. Dimensions of frame:700mm*270mm*120mm

8. Weight:3.5kgs for the main unit

Transmitter part

1. output mode:direct connecting output,clamp coupling output,radiation output

2. output frequency:500Hz,1kHz,8kHz,33kHz,66kHz, fault locating frequency

3. Output power:max 10W,four grands

4. Output voltage:max.150v

5. Impedance matching and protecting:automatic

6. HMI:128*64 DOTS LCD

7. Internal battery:Lithium cell battery,14.8v,7ah

8. external supply power:car power voltage 12VDC

9. dimensions:main unit size 275*220*100mm

10. weight:main unit weight 2.4kgs

III. Technical Advantage

• Support POWER –ON locating
• Left / Right arrow indicate cable route tracing
• Depth value display
• Right/Wrong indication
• Detect the power-on cable directly
• Intelligent clamp detecting, to show right/wrong directly
• Easy radiation detecting
• Intelligent pinpoint sheath fault locating, pinpointing
