Place of Origin: | Ningbo,China |
Brand Name: | Ningbo Suntech Power |
Certification: | ISO9001 |
Model Number: | FK-10KV |
Minimum Order Quantity: | One Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Export Standard Wooden Case With Fumigation Free |
Delivery Time: | 10 work days |
Payment Terms: | T/T |
Supply Ability: | 10units/month |
Usage: | Insulation Resistance Test And Analyzing | Special For: | Large Transformers, Generators, High-voltage Motors |
---|---|---|---|
Ouput Voltage: | 50V、100V、250 V、500V、1.0kV、2.5kV、5.0kV、10.0kV | Range: | 0 ~10TΩ |
Short Circuit Current: | No Less Than 5mA | Special Functions: | PI/DAR Measurements, RS232 Communition Interface |
High Light: | Cable Insulation Resistance Tester,10KV Insulation Resistance Tester,Digital Cable Insulation Resistance Tester |

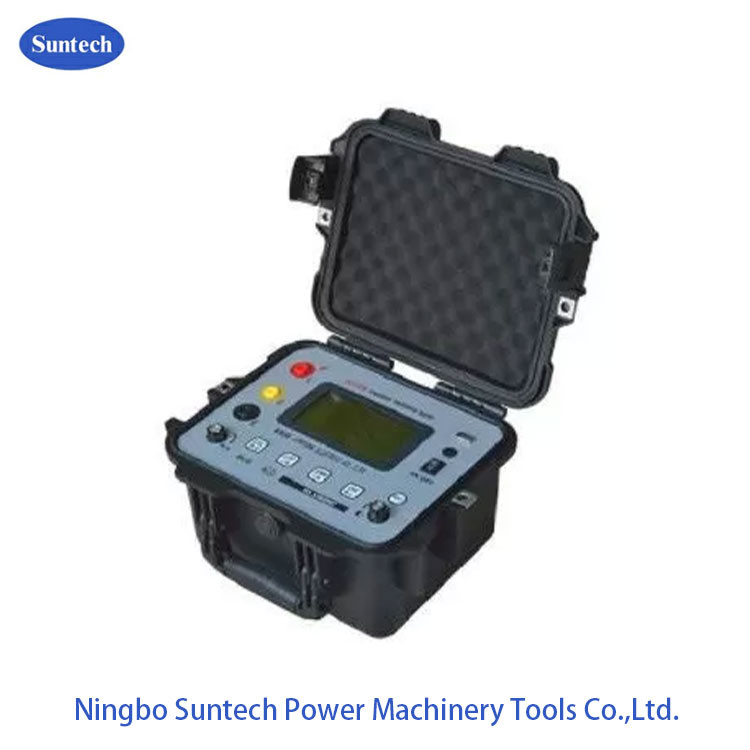

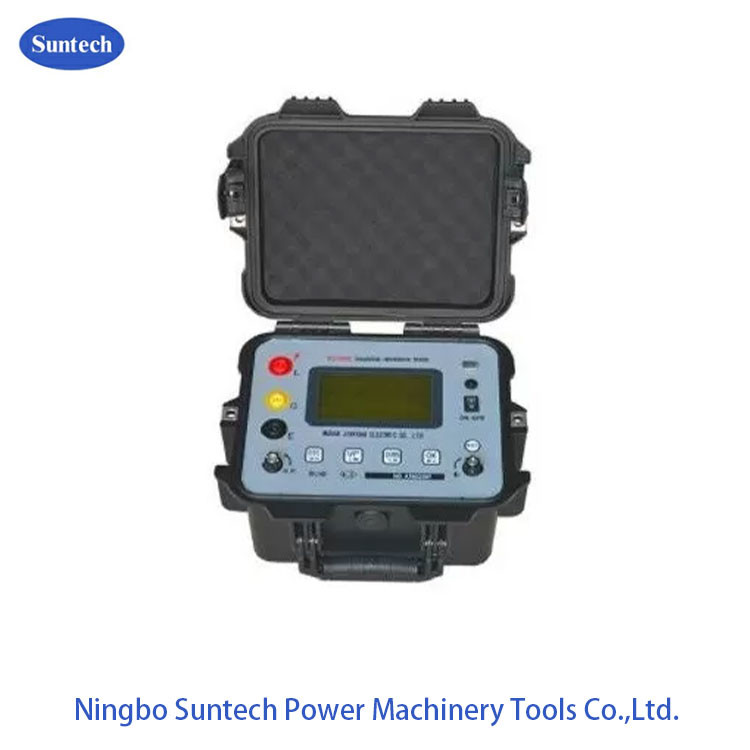

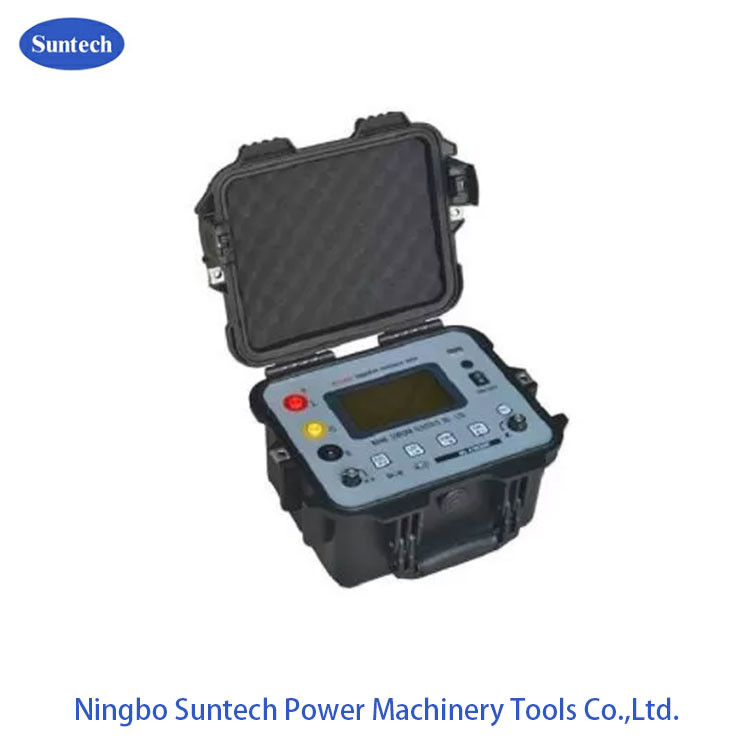

10KV Insulation Resistance Tester , Cable Insulation Resistance Testing , Digital Display
I. Product Introduction :
Insulation resistance tester, also known as megohmmeter, is used for testing insulation resistance. FK-10KV insulation resistance tester has LCD large-screen backlight display, data storage, data review, alarm, automatic shutdown and US232 communication interface. At the same time, it also has the function of measuring voltage absorption ratio and polarization index. The whole machine has wide measuring range, high resolution, easy operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. Moreover, it has anti-vibration, dust-proof and moisture-proof structure. It is an indispensable measuring instrument for telecom, electric power, meteorology, computer room, oil field, electromechanical installation and maintenance, and industrial enterprise departments that use electricity as industrial power or energy. Rugged, reliable and easy to use, the user's work is more effective.
II. Main Features :
III. Main Technical Data
1. Test Voltage gear: 50V, 100V, 250V, 500V, 1.0kV, 2.5kV, 5.0kV and 10.0kV
2. Measuring range : 0.1MΩ ~ 10TΩ
3. Short circuit current range: no less than 5mA
4. Test Accuracy: 5%
5. Temerature measurement error: 0.5℃
6. Insulation voltage : 10KV 50Hz, 1mint
7. Power supply :14.8V
8. Dimension : 270*240*165mm
9. Weight: 4.5kgs
10. Working temperature: 0~40℃
11. Humidity:no more than 85%RH
12. Communication :RS232 interface
13. External Print interface : optional
