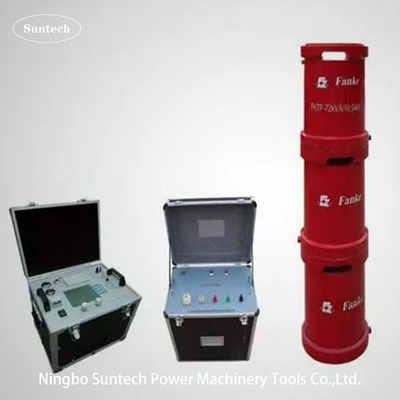

Portable High Voltage Cable Testing Equipment, MV Cable Testing Light Weight

Product Details:

Place of Origin:	Ningbo，China
Brand Name:	Ningbo Suntech Power
Certification:	ISO9001
Model Number:	FKTF series

Payment & Shipping Terms:

Minimum Order Quantity:	One Unit
Price:	Negotiable
Packaging Details:	Export Standard Wooden Case With Fumigation Free
Delivery Time:	25~30 Working Days
Payment Terms:	T/T
Supply Ability:	10units/1months

Contact Now

Detailed Product Description

Test Principle:	Variable Frequency Resonant Circuit	Test Item:	AC Withstand Voltage Test Under 108KV
Max.capacity:	OEM	Max. Voltage:	OEM
Design Feature:	Portable Type	Component:	V/F Power Source, Excitation Transformer,lighter Modular Test Reactor, And Voltage Divider
Test Frequency:	30-300Hz	Duty Cycle:	60 Mints
Test Object:	35KV Cable , 10KV Cable, 35KV Power Substation	Test Standard:	IEC 60060-1:2010；IEC 62271-203：2011 For GIS, IEC 60840:2011 For XLPE Cable;
High Light:	Portable High Voltage Cable Tester 300Hz , Lightweight MV Cable Tester

Portable Variable Frequency Resonant Withstand Voltage Test Set , For MV Cable and Power Substation Test

I. Product Usage :

FKTF portable variable-frequency series resonance test device mainly aims at AC voltage test for electric equipment and electric systems below 110kv. The reactors and excitation transformers employs dry-type epoxy resin filling, small size and light weight convenient for field moving, series or parallel composition is available, which can meet the test requirements not only of transformer, GIS,breaker, mutual inductor and bushing but also that of cable below 110kv

II. Applicable objects

XLPE cable of 10kv,35kv,110kv
GIS,breaker, mutual inductor ,transformer below 110kv
Small and medium size of generators and motor

III. Main components

Variable-frequency power source
excitation transformer,
Fixed inductance reactors,
Capacitance voltage divider

IV. Key features

Portable design, less than 50kg for each components, convenient for field voltage withstand test
Modular structure employed by reactor, convenient and flexible
Test frequency: 30 ～ 300Hz
The output waveform is sine wave, wave form deviation factor ≤ 1％
Easing for wiring and operating
High degree of test automation, intelligent variable-frequency power source, good stability, complete protection function
Data inquiry function. Past test data can be inquired

VI. General Technical Data

Rated capacity: OEM;
Input power: three-phase 380V voltage, frequency is 50Hz;
Rated voltage: 18KV, 27kV, 54kV, 50KV, 80KV, 100KV each for made by order
Rated current: OEM;
Working frequency: 30-300Hz;
Device output waveform: sine wave
Waveform distortion rate: output voltage waveform distortion rate ≤ 1%;
Working time: continuous 60min allowed under rated load; overpressure 1.1 times 1 minute;
Temperature rise: temperature rise ≤65K after continuous operation for 60 minutes under rated load;
Quality factor: device itself Q≥30 (f=45Hz);
Protection function: Over-current, over-voltage and test product flashover protection for the tested product (see the variable frequency power supply section for details);
Measurement accuracy: system effective value 1.5;

V. Main Components:(FKTF-108KVA/27KV, 54KV, 108KV test set for example)

SN	Name of Components	Type and specification	Qty.	Each weight	Each Dimension
1	Variable frequency power	FKVF-5kW/380V	1piece	35kgs	450450500mm
2	Excitation transformer	CQSB(J)-5kVA/1.25KV,5KV	1piece	35kgs	450350450mm
3	HV resonant test reactor	CHX(kf)-27kVA/27kV	4pieces	42kgs	D350*H400mm
4	Capacitive divider	TRF-110kV/1000pF	1set	10kgs	D150*H850mm
5	Special test accessories		1set

VI. Test priciple connection :
Portable High Voltage Cable Testing Equipment For MV Cable Testing Light Weight 0

VF: Variable Frequency Power Source T : Excitation Transformer
L : Test Reactor Cx: Tested Equipment MOA1: Lightning Arrestor
C1,C2: Voltage divider(C1 is high voltage arm,C2 is low voltage arm )

VII. Main Measuring and control software panel:
Portable High Voltage Cable Testing Equipment For MV Cable Testing Light Weight 1
Note: This is the software panel before start test for parameter setting

VIII.Accessories

Accessory box for storage accessoires
Input cables of power source
Output cables of power source
Output cables of exciting transformer
System grounding cables
Parallel cables of the reactor
HV measuring cables ( the signal output cables of voltage divider )
HV output cables(reactor to divide,divider to test object)
A final test report, a quality Certificate ,a user manual and a packing list are offered .

IX. Other Optional Model

1. For GIS on-site test

Model	Rated voltage	Rated output current	Rated output capacity	Application (From 45Hz starting)
CHX-135KVA/135KV	27KV*5	1A	135KVA	For 72.5KV and below GIS
CHX-270KVA/135KV	27KV*5	1A	135KVA	For 72.5KV and below GIS
CHX-216KVA/216KV	27KV*8	1A	216KVA	For 123KV and below GIS
CHX-270KVA/270KV	27KV*10	1A	270KVA	For 145KV and below GIS
CHX-275KVA/275KV	275KV	2A	275KVA	For 170KV and below GIS
Special requirement can be made by order

2. For 45KV XLPE cable on-site test

Model	Rated voltage	Rated output current	Rated output capacity	Max Application
CHX-108/54	54KV	2A	108KVA	45kV cable≤1km
CHX-216/54	54KV	4A	216KVA	45kV cable≤2km
CHX-324/54	54KV	6A	324KVA	45kV cable≤3km
CHX-432/54	54KV	8A	432KVA	45kV cable≤4km
CHX-540/54	54KV	10A	540KVA	45kV cable≤5km
CHX-1080/54	54KV	20A	1080KVA	45kV cable≤10km
Special requirement can be made by order

3. For 66KV XLPE cable on-site test

Model	Rated voltage	Rated output current	Rated output capacity	Max Application
CHX-160/80	80KV	2A	160KVA	66kV cable≤0.5km
CHX-320/80	80KV	4A	320KVA	66kV cable≤1km
CHX-640/80	80KV	8A	640KVA	66kV cable≤2km
CHX-960/80	80KV	12A	960KVA	66kV cable≤3km
CHX-1280/80	80KV	16A	1280KVA	66kV cable≤4km
CHX-1600/80	80KV	20A	1600KVA	66kV cable≤5km
CHX-3200/80	80KV	40A	3200KVA	66kV cable≤10km
CHX-9600/80	80KV	120A	9600KVA	66kV cable≤20km
Special requirement can be made by order
