High Accuracy High Voltage Cable Testing Equipment Cable Heat Cycle Test Systems

High Accuracy High Voltage Cable Testing Equipment Cable Heat Cycle Test Systems

  • High Accuracy High Voltage Cable Testing Equipment Cable Heat Cycle Test Systems
High Accuracy High Voltage Cable Testing Equipment Cable Heat Cycle Test Systems
Product Details:
Place of Origin: Ningbo，China
Brand Name: Ningbo Suntech Power
Certification: ISO9001
Model Number: CHCTS series
Payment & Shipping Terms:
Minimum Order Quantity: One Unit
Price: Negotiable
Packaging Details: Export Standard Wooden Case With Fumigation Free
Delivery Time: 15~30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 5sets /month
Contact Now
Detailed Product Description
Appication: Cable And Metal Conductor Heat Cycle Test Systems Output Voltage: 5.0V~100.0V
Optional Capacity: 30-1000KVA Optional Voltage: 5.0V~100.0V
Accuracy: ± 1.5% Heat Time: 0.01s To 999.9h Setting
High Light:

Cable Heat Cycle Tester

,

1000KVA High Voltage Cable Testing Equipment

Cable Heat Cycle Test Systems , Auto Cycling Heating Systems



I. Product Description:

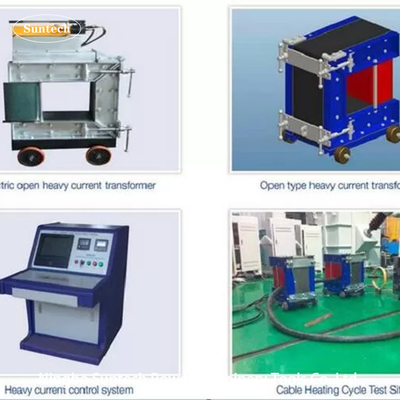

CHCTS series Cable Heat Cycle Test System is the equipment for cable auto cycling heating system, suitable for XLPE cable test. It’s composed of digital control measure cabinet and multiple straight-through type large current generators. It complies with requirements of IEC standards and automatically monitors and records test data during heating test. Heating 100℃(8hours)and self-cooling(16 hours), totally 20 cycles, and 5cycles at least for one week, and 5 day continuous.







II. Application

  • Cable heat cycle test
  • Cable metal conductor heat cycle test





III. Technical parameters

  • Power supply : 380V+10%
  • Working Frequency:50Hz, 60Hz
  • Output voltage :5.0V~100.0V
  • Output current :1000A~10000A
  • Accuracy : ± 1.5%
  • Capacity : 30-1000KVA
  • Heat time setting : 0.01seconds to 999.9hours set



Note :Special requirement is as agreed.





VI. Optional systems

  • PD free voltage withstand test systems for cables
