Place of Origin: | Fenghua,Zhejiang,China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | SHD,SHND |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the newest price |
Packaging Details: | Pallets or Wooden Cases |
Delivery Time: | 7-15 days after payment |
Payment Terms: | L/C, T/T, D/A, Western Union, MoneyGram |
Supply Ability: | 500pcs per month |
Material: | Aluminum And Nylon | Model: | 10171-10199 |
---|---|---|---|
Usage: | ACSR Conductor | Applicable Conductor ACSR: | LGJ25-500 |
Type: | Conductor Stringing Blocks | Rated Load: | 5-20KN |
High Light: | 60 KN Tower Erection Tools,Tower Erection Pulley Blocks,MC Nylon Sheave Single Conductor Pulleys |

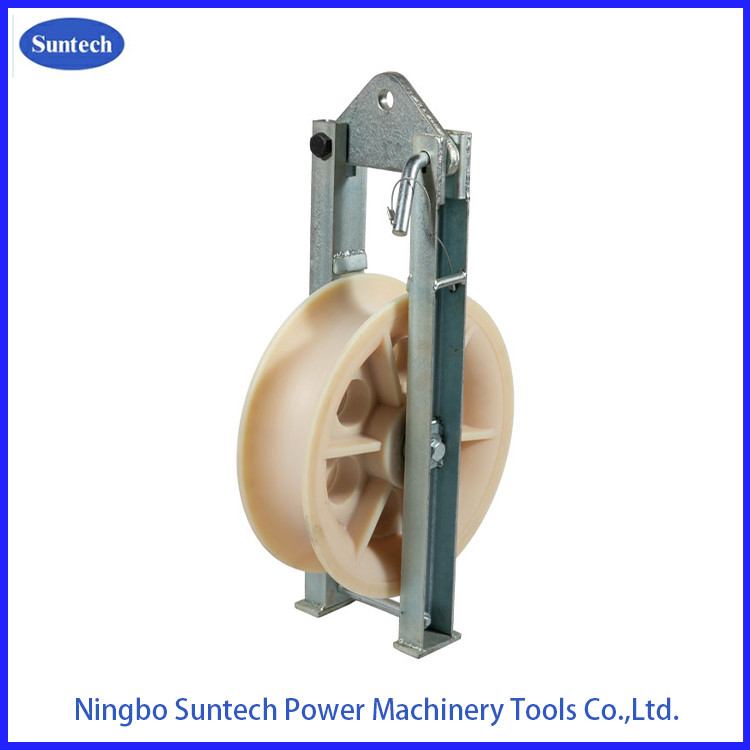

15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys
Apply to pull conductor on straight pole.Splicing sleeve,steel wire rope and connector can pass through the groove.

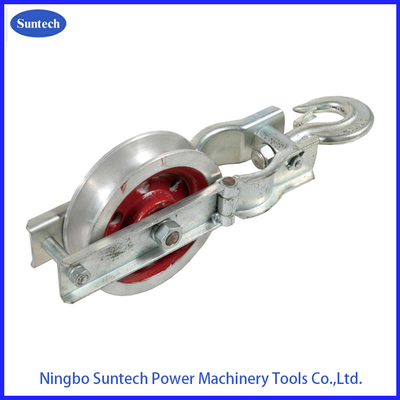

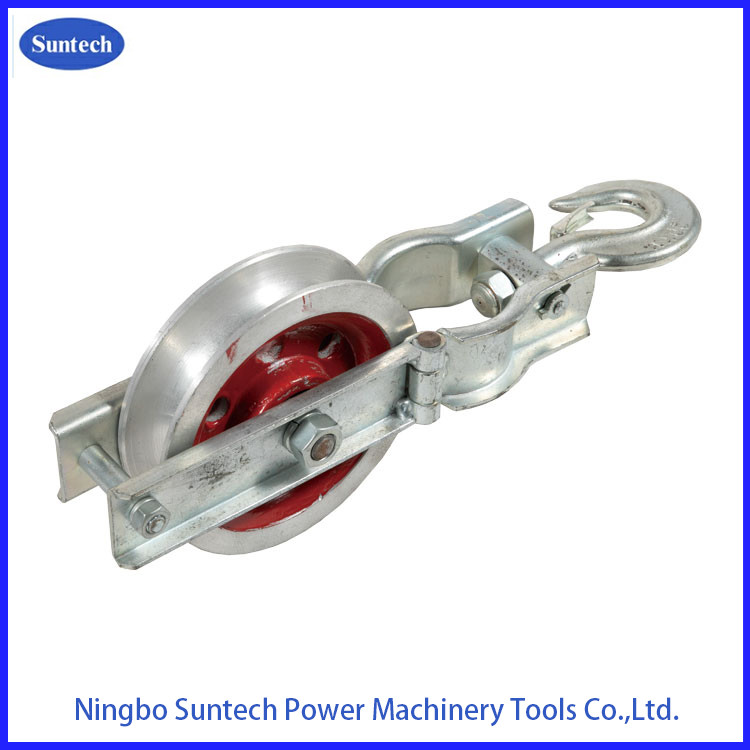

Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..

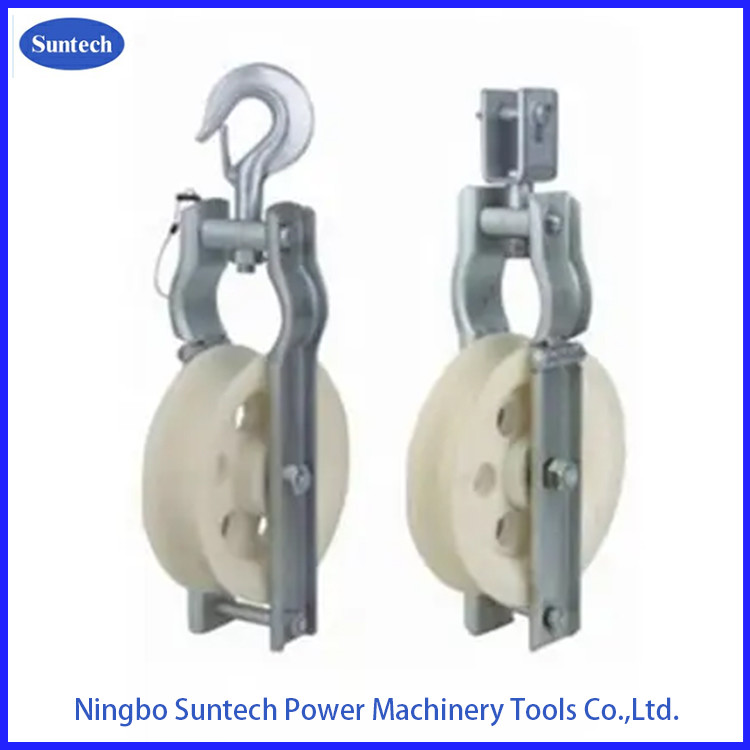

The material is aluminum alloy and MC nylon .Pulley pendant is combined plate and hook type.
The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel

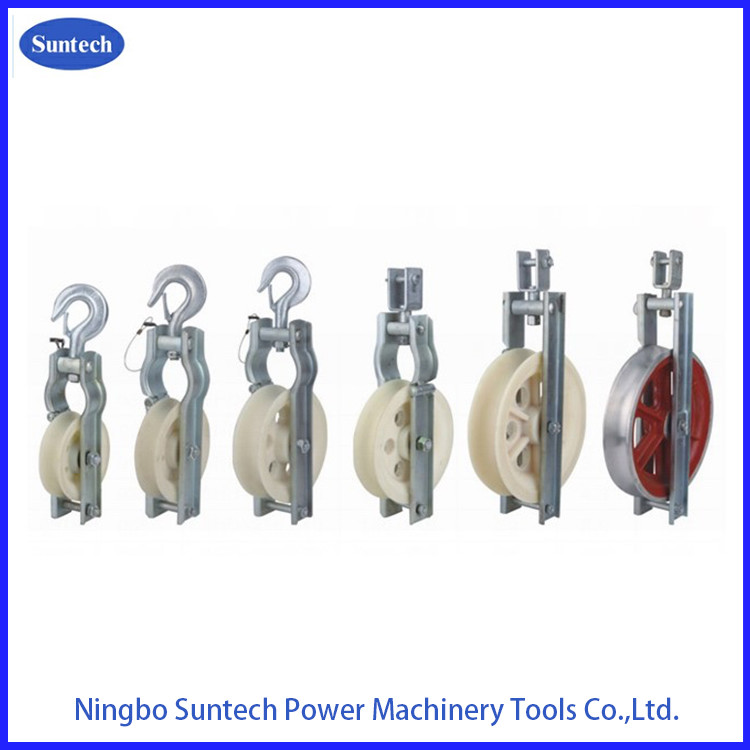

Item number | Model | Suitable conductor | Rated load | Weight | Remark |
10171 | SHD-120×30 | LGJ25~70 | 5 | 1.5 | Aluminium sheave |
10172 | SHD-160×40 | LGJ95~120 | 10 | 2.5 | |
10173 | SHD-200×40 | LGJ150~240 | 15 | 4 | |
10174 | SHD-200×60 | LGJ150~240 | 15 | 4.6 | |
10175 | SHD-250×40 | LGJ150~240 | 20 | 4.6 | |
10176 | SHD-250×60 | LGJ300~400 | 20 | 6 | |
10177 | SHD-270×60 | LGJ300~400 | 20 | 7 | |
10178 | SHD-320×60 | LGJ300~400 | 20 | 9.5 | |
10179 | SHD-400×80 | LGJ400~500 | 20 | 15 | |
10191 | SHDN-120×30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
10192 | SHDN-160×40 | LGJ95~120 | 10 | 2.5 | |
10193 | SHDN-200×40 | LGJ150~240 | 15 | 3.6 | |
10194 | SHDN-200×60 | LGJ150~240 | 15 | 4 | |
10195 | SHDN-250×40 | LGJ150~240 | 20 | 4 | |
10196 | SHDN-250×60 | LGJ300~400 | 20 | 4.5 | |
10197 | SHDN-270×60 | LGJ300~400 | 20 | 5.6 | |
10198 | SHDN-320×60 | LGJ300~400 | 20 | 6.7 | |
10198-1 | SHDN-320×80 | LGJ300~400 | 20 | 8 | |
10199 | SHDN-400×80 | LGJ400~500 | 20 | 13 | |
10199-1 | SHDN-400×100 | LGJ400~500 | 20 | 15 | |
10199-2 | SHDN-400×120 | LGJ400~500 | 20 | 18 |
