Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Fenghua,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SHDN1040 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Exported Wooden Cases Or Pallets |
| Delivery Time: | 15-20 Workdays |
| Payment Terms: | L/C, T/T,, Western Union, D/P |
| Supply Ability: | 300 sets per month |
| Name: | 916mm Stringing Blocks | Size: | 1040X125mm |
|---|---|---|---|
| Material: | Nylon | Rated Load: | 50-200KN |
| Model: | SHDN1040,SHSQN1040,SHWQN1040 | Max Conductor ACSR: | LGJ1120 |
| High Light: | 1040mm MC Nylon Conductor Stringing Blocks,Galvanized Steel Conductor Stringing Pulley Block,200KN Conductor Stringing Pulley Block |
||

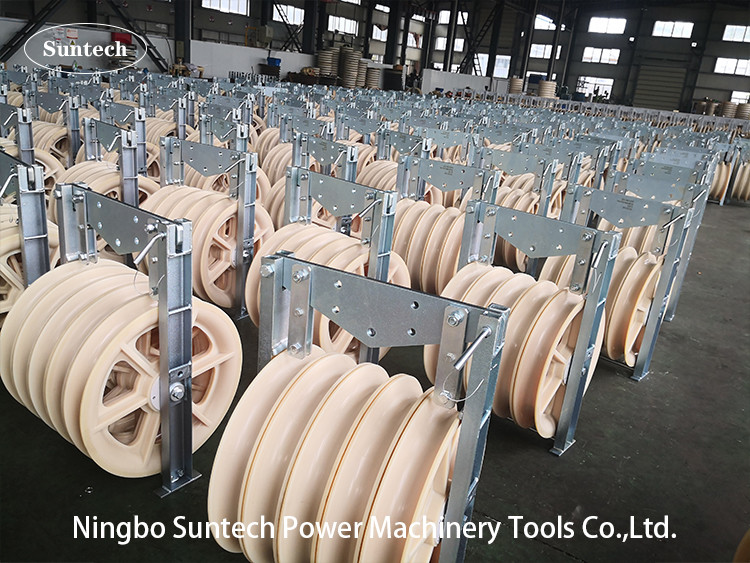

1040mm MC Nylon Wheels Condutor Stringing Pulley Block With Galvanized Steel Frame
This 1040mm bundled conductor stringing pulley block has the conductor diameter of no more than LGJ1120.
That is to say, the aluminum of this conducting wire can possess the maximum cross section of 1120 square millimeters.
The block dimension (outside diameter*root diameter*sheave width) is Φ1040×Φ900× 125 (mm).

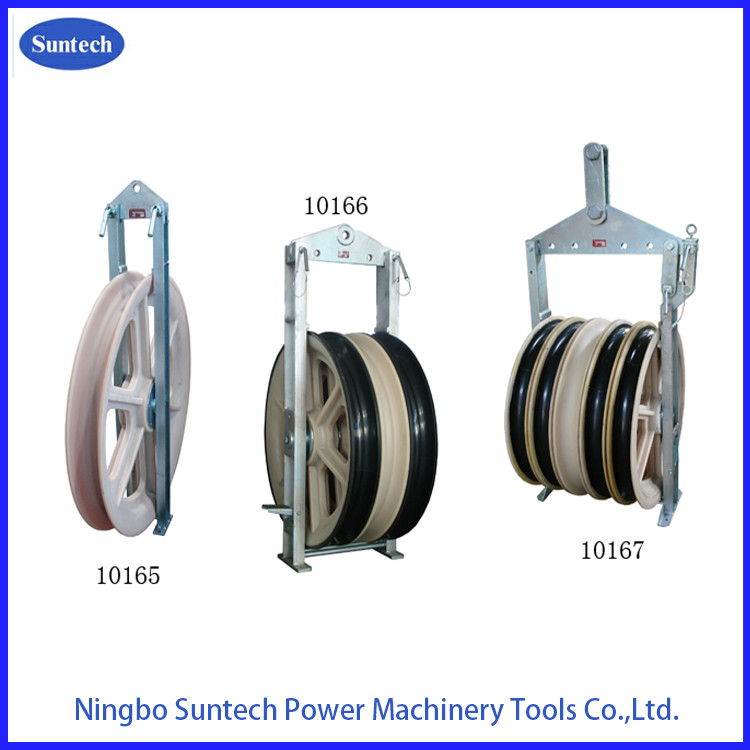

| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10165 | SHDN1040 | 1 | 50 | 60 | MC nylon sheave |
| 10166 | SHSQN1040 | 3 | 105 | 200 | Middle: MC nylon sheave Conductor: rubber coated nylon sheave |
| 10167 | SHWQN1040 | 5 | 180 | 330 |
