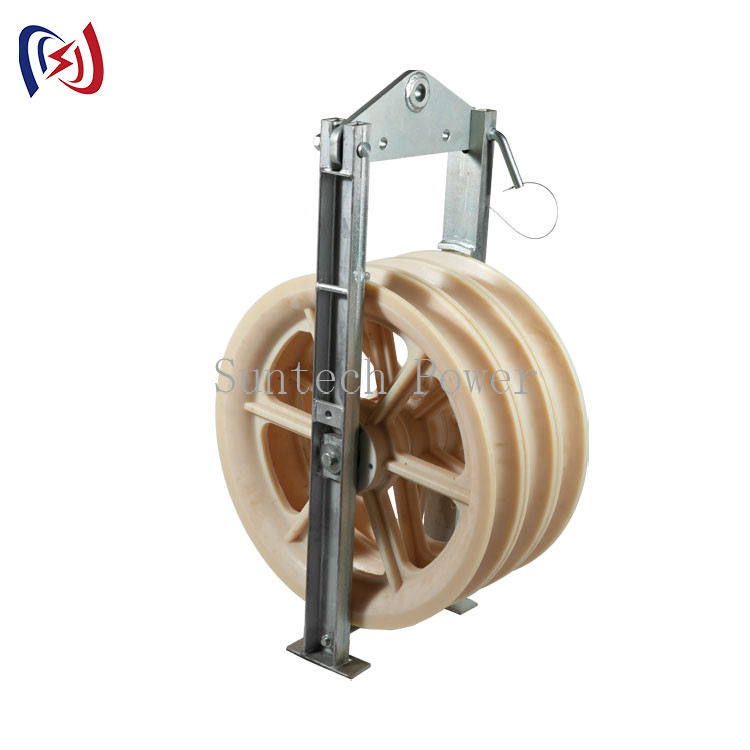

822mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley Block
This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width)
of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting
wire has the maximum cross section of 630 square millimeters.
1.Maximum suitable conductor ACSR630.
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110
3.Rubber lined MC nylon sheave for conductor can be customized.
822mm Technical Parameters

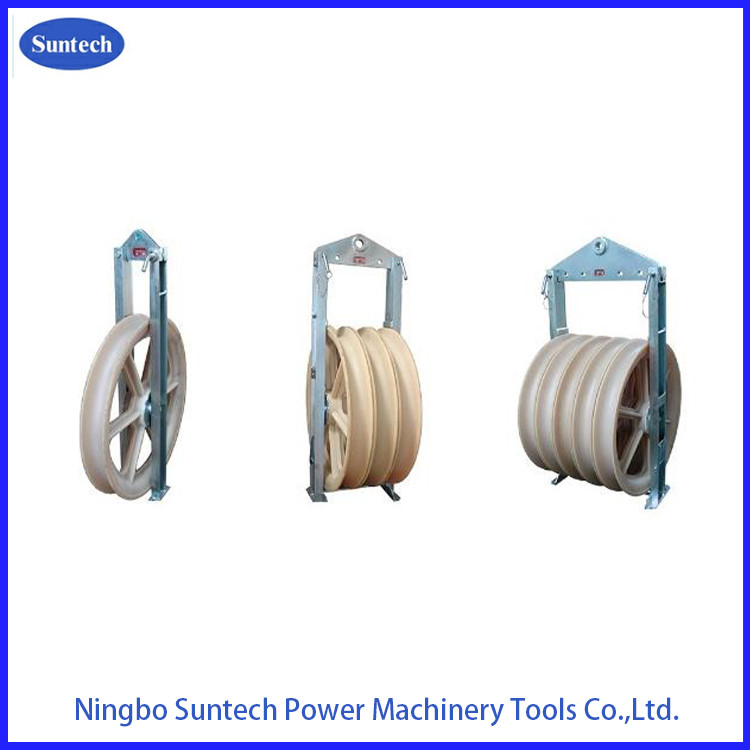

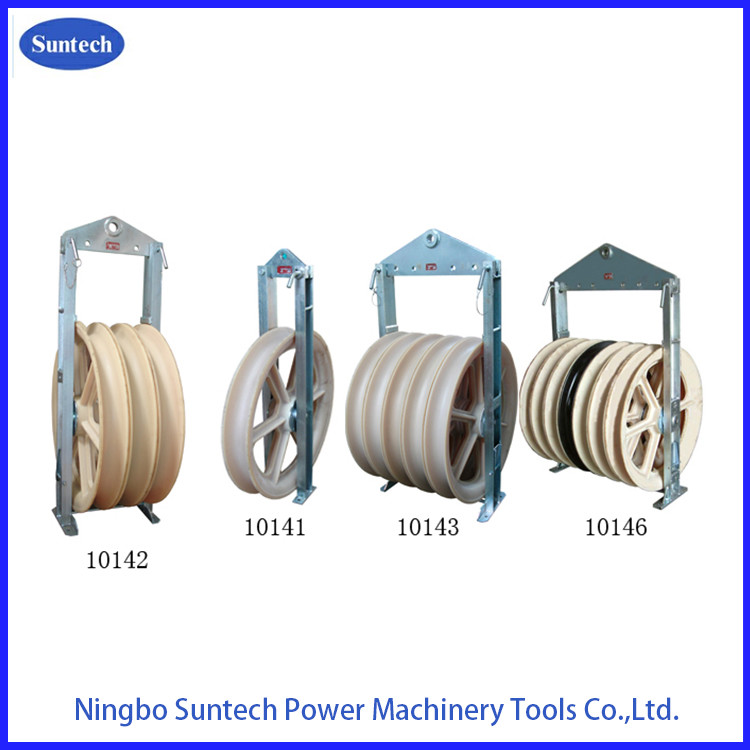

Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Sheave Features |
10141 | SHDN822 | 1 | 30 | 40 | MC nylon sheave |
10142 | SHSQN822 | 3 | 60 | 118 | |
10143 | SHWQN822 | 5 | 120 | 180 | |
10146A | SHQQN822 | 7 | 120 | 250 | |
10146 | SHQ822 | 7 | 120 | 285 | Middle: cast steel sheave Conductor: MC nylon sheave |
10148 | SHJ822 | 9 | 150 | 445 | |
10141A | SHDL822 | 1 | 30 | 45 | Aluminum sheave |
10141B | SHDLJ822 | 1 | 30 | 48 | Rubber lined aluminium sheave |
