Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SHDN |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exporting Containers and Cases |
| Delivery Time: | 7-10 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 800pcs per month |
| Name: | Aluminum Conductor Pulley | Material: | Steel Wheel,nylon |
|---|---|---|---|
| Model: | SHDN660 SHSQN750 SHSQN822 SHWQN916 | Inner Size: | 408,560, 640, 710, 800 Mm |
| Outside Dia: | 508,660,750, 822, 916 Mm | Usage: | Construction Site |
| High Light: | Aluminum Conductor Stringing Blocks,Bundled Aluminum Conductor Pulley,220KV Transmission Line Conductor Pulley |
||

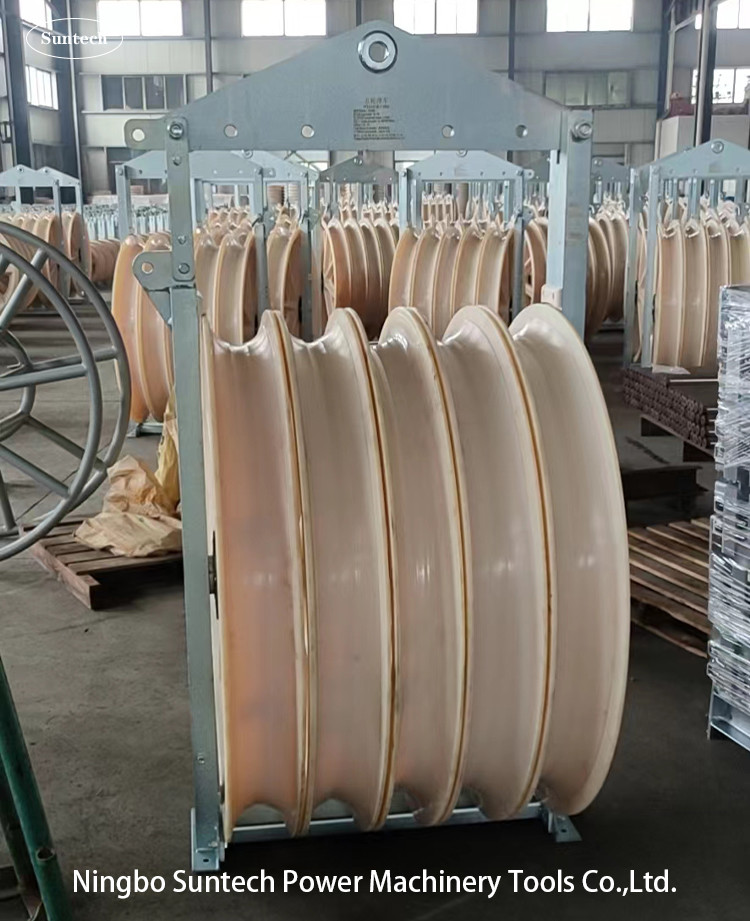

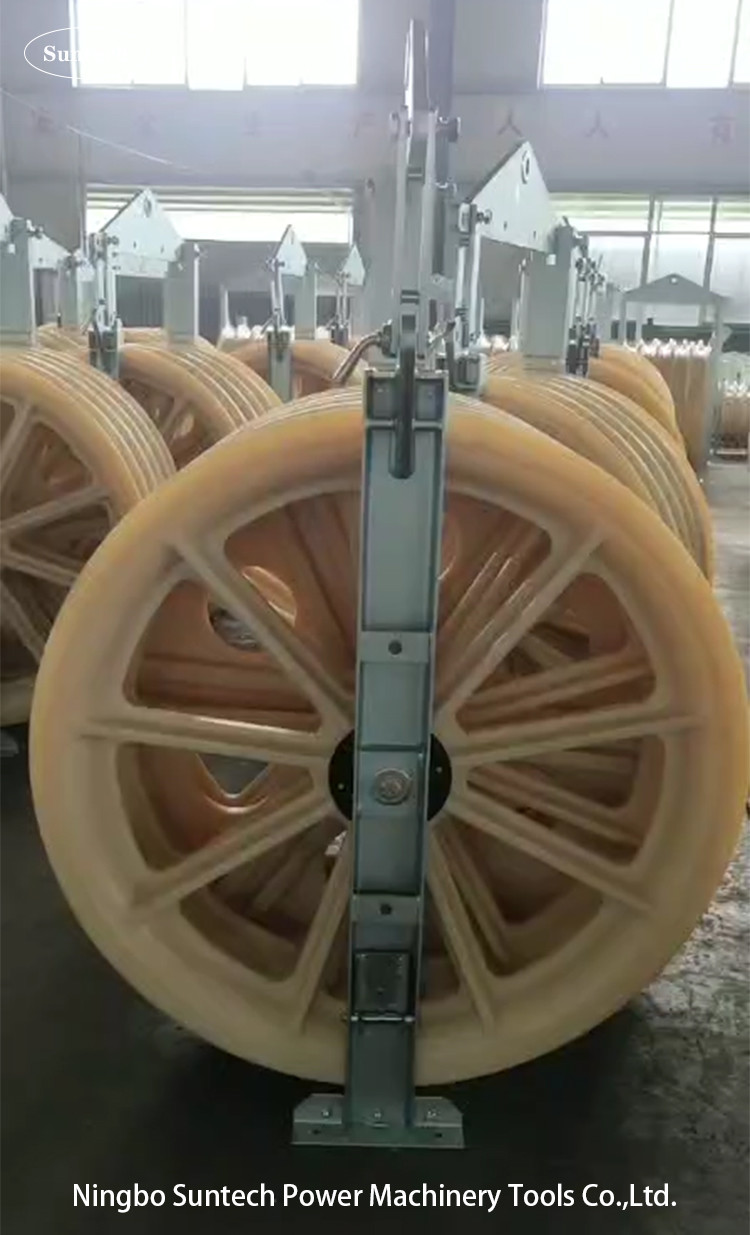

Bundled Aluminum Five Conductor Pulley Blcok For 220KV Transmission Line
660MM Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing.
The sheave is made in aluminum alloy lined with neoprene or high Strength MC Nylon.
Note:
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be
supplied on request.The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
660MM Overhead Transmission Line Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10121 | SHD660 | 400-500 | 20 | 30 | Aluminum alloy |
| 10124 | SHDN660 | 400-500 | 20 | 24 | MC Nylon |
| 10122 | SHS660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | MC Nylon |
| 10123 | SHW660 | 400-500 | 60 | 150 | Aluminum Alloy lined with neoprene |
| 10126 | SHWLN660 | 400-500 | 60 | 120 | |
| 10128 | SHWQN660 | 400-500 | 60 | 110 | MC Nylon |
| 10129 | SHQZ660 | 400-500 | 80 | 260 | Central steel, conductor sheave nylon or aluminum alloy |
| 10130 | SHQ660A | 400-500 | 80 |
190 |
