Compact Electric Cable Winch Puller Reliable Honda Engine Stringing Wire

1 Ton Honda Engine Compact Electric Cable Winch Puller To Stringing Wire

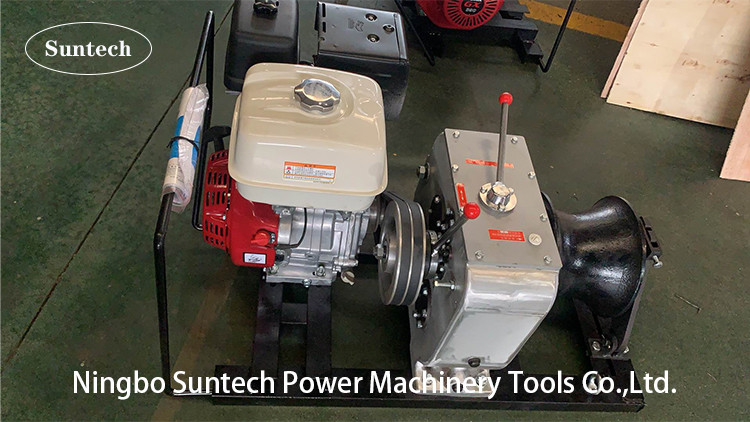

1Ton HONDA Gasoline Engine Cable Pulling Winch With Shafted Driven Application

1. It is used for tower erection,pole setting,stringing wire in electrical power line construction.

2. Winch can be modified as per requirement, such as changing curve capstan into straight even

3. cylindrical shape and coming with steel rope.

Features 1 Ton Honda Engine Compact Electric Cable Winch Puller To Stringing Wire

1. Small size & compact structure.

2. Light weight.

3. High efficiency.

4. Safe and reliable.

5. Widely used.

Technical Data of 1Ton HONDA Gasoline Engine Cable Pulling Winch With Shafted Driven

Technical Data Honda Gasoline Engine MZ175

About Lubrication 1 Ton Honda Engine Compact Electric Cable Winch Puller To Stringing Wire

Using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.

Operation methods

1 before turning on the machine,you must turn on the clutch first and put the racker for crosspiece-changing in the zero position

2 when moving the crosspiece,you should be quick.Otherwise the brake won’t work well.when turning on the machine,you shouldn’t work too fiercly

3 when changing the crosspiece position,you must turn on the clutch.Otherwise the gear will be damaged.After that,you should check whether the changing job is well done.Make sure you haven’t changed two crosspieces in one time.

4 If there is any difficulty during the process of changing crosspiece position,you shouldn’t try to complete the job forcrfully.Instead you should use the hand installment to help you complete the job.Concrete procedure:using the spanner to move the hand installment to a position with a certain angle,then you can change the crosspiece position smoothly.
