5 Ton Double Capstan Cable Winch Puller With Honda GX390 Engine 13HP

1 Set
MOQ
Negotiable
Price
5 Ton Double Capstan Cable Winch Puller With Honda GX390 Engine 13HP
Features Gallery Product Description Chat Now
Features
Specifications
Name: Double Capstan Winch
Speed: 2600RPM
Engine: Diesel Or Petrol
Application: Transmission Line
Weight: 230KG
Usage: Site Construction
Highlight:

5 Ton Double Capstan Cable Winch

,

GX390 Engine Cable Winch Puller

,

Construction 5 Ton Winch

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: JJCS 50
Payment & Shipping Terms
Packaging Details: Exported Containers
Delivery Time: 5-7 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Product Description

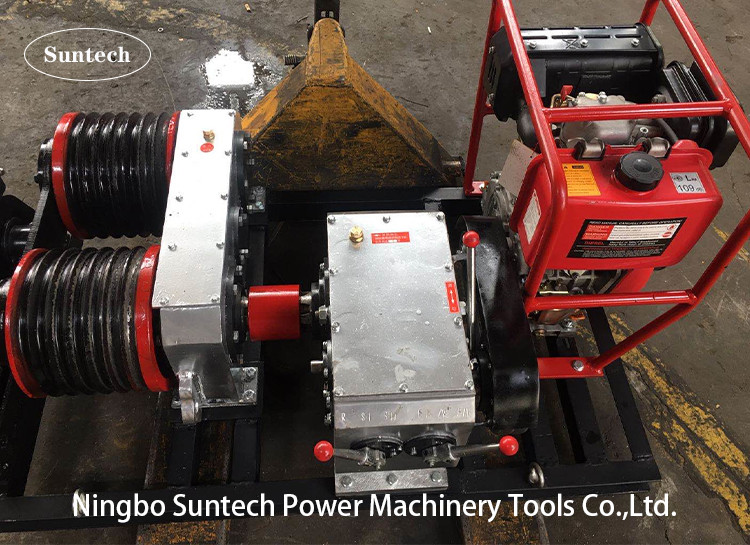

5 Ton Double Capstan Cable Winch Puller With Honda GX390 Engine 13HP



Application

Honda Gasoline Winch 5T With Two Cable Drums For Wire Rope Pulling is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Item number 09151 09152 09162
Model JJCS-30 JJQS-30 JJCS-50
Engine Model

R175A

Diesel Engine

GX270

Gasoline Engine

S195G

Diesel Engine

(HP)Power 6 9 9
(RPM)Speed 2600 3600 2000

(KN)

Pull

force/

(M/MIN)

speed

Slow 30/5.7 30/7.43 50/3.1,40/9.6
Moderate 18.9/9.1 19.2/11.8 45/7.1,17/22.3
Fast 7.6/22.7 7.2/31.4 33/11.3,10/35.6
Reverse -/6.5 -/8.4 -/7.35

(MM)

Drum bottom of groove diamete

Φ230 Φ230 Φ300
(MM)outline size 1000x670x600 1000x670x600 2230x1210x1135
(KG)Weight 305 270 700



5 Ton Double Capstan Cable Winch Puller With Honda GX390 Engine 13HP 0



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
