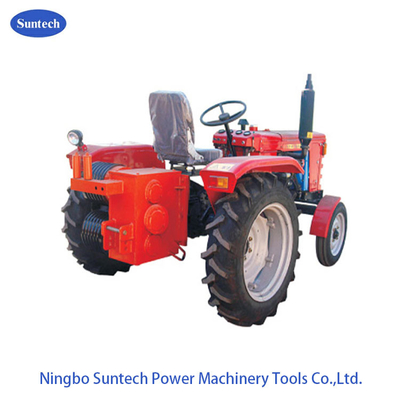

Petrol Engine Powered Cable Pulling Winch 5 Ton For Conductor Taking up and Stringing
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Wire take up mahcine Main Specifications
| Item Number | 08151 | 08152 | |
| Model | SJZ10B | SJZ10C | |
| Engine | Type | Honda GX160 gasoline engine | Z170F diesel engine |
| Power (hp) | 5.5 | 4 | |
| Rotational Speed (rpm) | 3600 | 2600 | |
| Max. Take-up Force (kN) | 13.2 | 10.9 | |
| Take-up Speed (m/min) | 9.8~80 | 10.5~85.4 | |
| Reel Capacity (m) | LGJ95 | 600 | 600 |
| LGJ120 | 460 | 460 | |
| LGJ185 | 320 | 320 | |
| Weight (kg) | 136 | 165 | |
| Overall Dimension (m) | 1.2×0.85×0.95 | 1.2×0.85×0.95 | |
