| Model: | SFJ-30 | Capacity: | 3Ton |
|---|---|---|---|
| Application: | Wire Winding Machine | Weight: | 185KG |
| Speed: | 7.5-28 M/min | Engine: | Petrol Or Diesel To Choose |
| High Light: | Engine Powered Winch 3 Ton,Transmission Stringing Line Engine Powered Winch,Petrol Engine Wire Winch Puller |
||

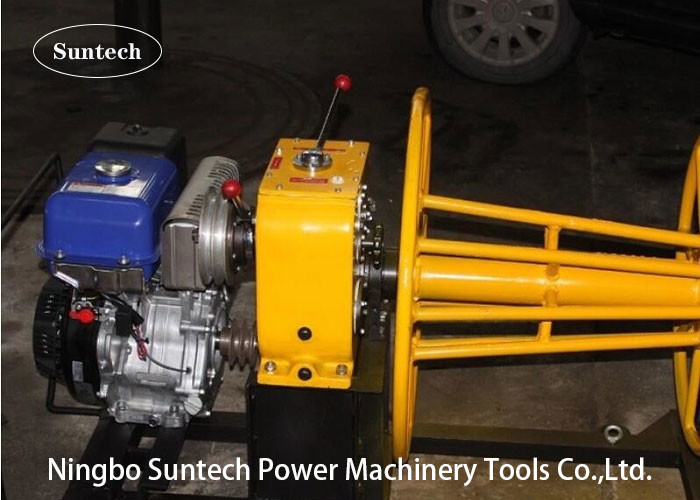

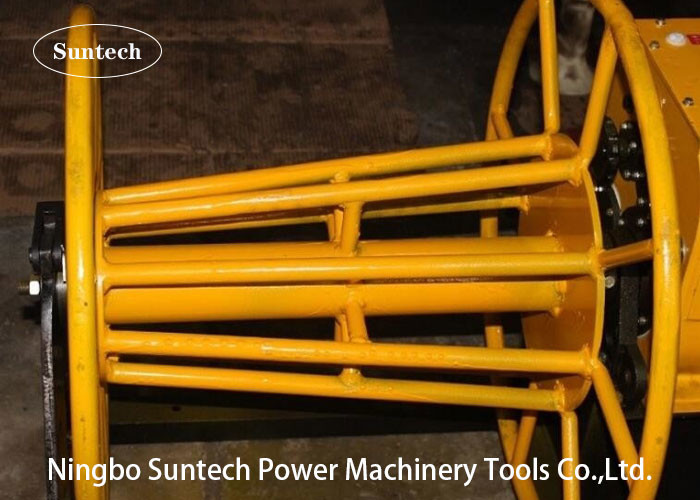

3 Ton Yamaha Engine Cable Pulling Winch With Big Drum in Stringing Line Construction
This wire take up machine serves to recycle the old conducting wire or the overhead ground wire.
| Item | Model | Rated load(KN) | Pulling speed(m/min) | Engin | Weight(kg) |
| 08151 | SFJ-10 | 10 | 13.3-24.3 | Gasoline | 160 |
| 08152 | SJ-10C | 10 | 13.3-24.3 | Diesel | 160 |
| 08153 | SFJ-20 | 20 | 7.5-14 | Gasoline | 180 |
| 08154 | SFJ-30 | 30 | 7.5-28 | YAMAHA gasoline | 185 |
1. small size & compact structure.The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
2. high efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
3. Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
4. safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance, flexible usage, safety and trust.
