Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | JJD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | 7-10 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Model: | XFSJ-20 | Voltage: | 220v/380v |
|---|---|---|---|
| Phase: | One Or Three | Usage: | Pulling Rope |
| Application: | Transmission Line | Warranty: | One Year |
| High Light: | 1 Ton Cable Winch Puller,2.2KW Wire Rope Pulling Winch,Electrical Motor Wire Rope Pulling Winch |
||

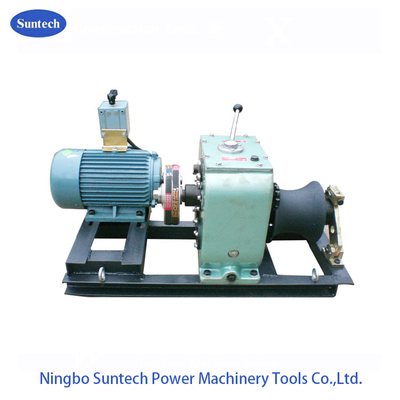

Small and Light Electric Wire Rope Pulling Winch /Electric Wire Rope Winch
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Small Electric Winch 220v Electric Winch 380v is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
| Item number | Model | Rotation direction |
Gear | (RPM) rotational speed |
(M/MIN) Traction speed |
(T) Tractive force |
(KW) Power |
(MM) Outline size |
(KG) Weight |
| 09121 | JJQ-3Q 6HP Gasoline engine |
corotation | ⅠSlow | 9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
| ⅡFast | 16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A | JJC-30 170F Diesel engine |
corotation | ⅠSlow | 11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
| ⅡFast | 21.0 | 9.0 | 1.8 | ||||||
| reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B | JJD-30 3KWElectromotor |
corotation | ⅠSlow | 8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
| ⅡFast | 10.5 | 6.5 | 1.8 | ||||||
| reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 | JJQ-50 9HP Gasoline engine |
corotation | ⅠSlow | 6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
| ⅡFast | 16.0 | 9.0 | 2.2 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A | JJC-50 6.6HPDiesel engine |
corotation | ⅠSlow | 8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
| ⅡFast | 19.0 | 11.0 | 2.3 | ||||||
| reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B | JJD-50 4KW Electromotor |
corotation | ⅠSlow | 5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
| ⅡFast | 14.0 | 8.0 | 3.0 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 | JJQ-80 13HP Gasoline engine |
corotation | ⅠSlow | 5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
| ⅡFast | 9 | 5 | 4.5 | ||||||
| reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A | JJC-80 10.5HP Diesel engine |
corotation | ⅠSlow | 7 | 4 | 8 | 7.86 |
1000x750x630 | 230 |
| ⅡFast | 13 | 7.5 | 4 | ||||||
| reversal | Reverse | 6.5 | 3.7 | No lifting |
