Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | JJM-5SQ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | 7-10 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Model Number: | JJM-5SQ | Capacity: | 5 Ton |
|---|---|---|---|
| Usage: | Transmission Line | Engine: | Petrol Or Diesel |
| Application: | Call Pulling Powered | Warranty: | 1 Year |
| High Light: | Two Drum Cable Winch Puller,Gasoline Powered Cable Winch Puller,5 Ton Cable Drum Winch |
||

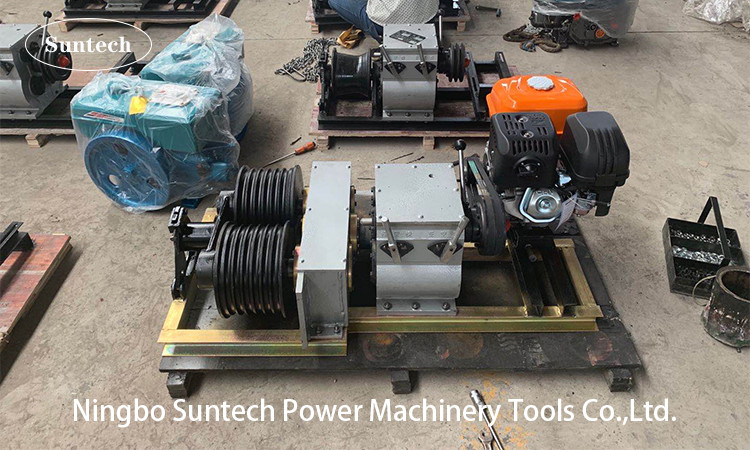

5 Ton Gasoline Powered Winch Cable Drum Winch Cable Pulling Winch with Two Drum
Application
5 Ton Gasoline Powered Winch Double Drum Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model | JJM-5SQ | |||||
| Engine | Honda/Yamaha gasoline engine | |||||
| Power | 13Hp ,3600rmp | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| SlowⅠ | SlowⅡ | FastⅠ | FastⅡ | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(kg) | 280/300 | |||||
| Dimension(mm) | 1330*800*600 | |||||
