Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | JJM3-Q |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | 7-9 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Model Number: | JJM3-Q | Rated Load: | 3Ton |
|---|---|---|---|
| Usage: | Site Work | Engine: | Yamaha Petrol Engine 6HP |
| Application: | Transmission Line | Warranty: | 1 Year |
| High Light: | 3 Ton Hoist Cable Winch Puller,Gasoline Engine Wire Rope Puller,Transmission Line Small Wire Puller |
||

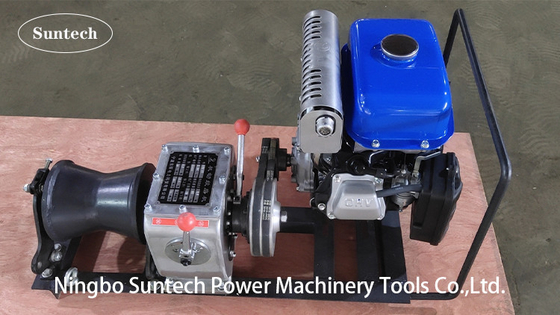

3 Ton Pulling Hoist With Yamaha Gasoline Engine Power Winch in Power Site
Application
3 Ton Portable Pulling Hoist With Yamaha Gasoline Engine Power Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Yamaha Engine
Features
Small power yamaha engine
low vibration,low noise
Easy to operate and high safty
Precise Machining Technique
Long Life of the Machine
Delicate and Beautiful Appearance Design
Broader Applicable Scope
Good quality and less malfunction
Specifications
Fuel:gasoline
Stroke:4 stroke
Cylinder: Single Cylinder
Cold Style: Air-cooled
Start: Kick Start
Displacement: 250cc
Starting System: Recoil/Electric Key start
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3-Q | Yamaha Petrol engine 6HP | Slow | 4 | 3 |
| Quick | 7 | 1.8 | ||
| Reverse | 3.5 |
Contact Person: Peter
Tel: 86-13958364836
