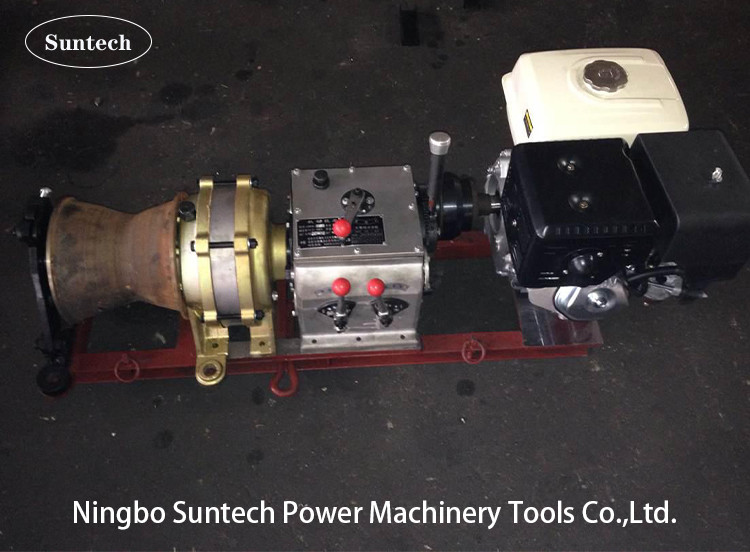

Speedy Shaft Drive Transmission Cable Winch Puller With Gasoline Honda GX390 13HP Engine

Speedy Shaft Drive Transmission Cable Winch Puller With Gasoline Honda GX390 13HP Engine

  • Speedy Shaft Drive Transmission Cable Winch Puller With Gasoline Honda GX390 13HP Engine
Speedy Shaft Drive Transmission Cable Winch Puller With Gasoline Honda GX390 13HP Engine
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: JJM-5B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Get newest price
Packaging Details: Exported cartons or cases
Delivery Time: 7-9 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Model Number: JJM-5B Rated Load: 5Ton
Usage: Site Work Engine: Honda / Diesel
Application: Transmission Line Warranty: One Year
High Light:

Speedy Shaft Drive Cable Winch Puller

,

GX390 13HP Engine Cable Winch Puller

,

Transmission Wire Rope Puller

5 Ton Speedy Shaft Drive Transmission Gasoline Engine Winch with Honda GX390 13HP



Application

Gasoline engine powered winch referred to as gasoline winch, mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.

Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Features

1) Speedy and Efficient

2) Safe and Reliable

3) Compact structure

4) Widely used

5) Light weight



Technical Data for 5 Ton Speedy Gasoline Engine Winch

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power(KW) Dimension(mm) Weight(kg)
JJM-5B HONDA gasoline engine GX390 13HP Fast 9 24 10 1100*498*600 137
Mid 15 14
Mid 30 9
Slow 50 5



Speedy Shaft Drive Transmission Cable Winch Puller With Gasoline Honda GX390 13HP Engine 0
