Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,SGS |
| Model Number: | JJM5B |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | 5-7 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
| Feature: | High Efficient | Name: | Petrol Powered Winch |
|---|---|---|---|
| Capacity: | 5 Ton | Site: | Line Construciton |
| Engine: | Honda Or Diesel | Application: | Wire Rope Pulling Winch |
| High Light: | Power Construction Wire Cable Puller Winch,5 Ton Cable Puller Winch,Petrol Powered Wire Rope Winch |
||

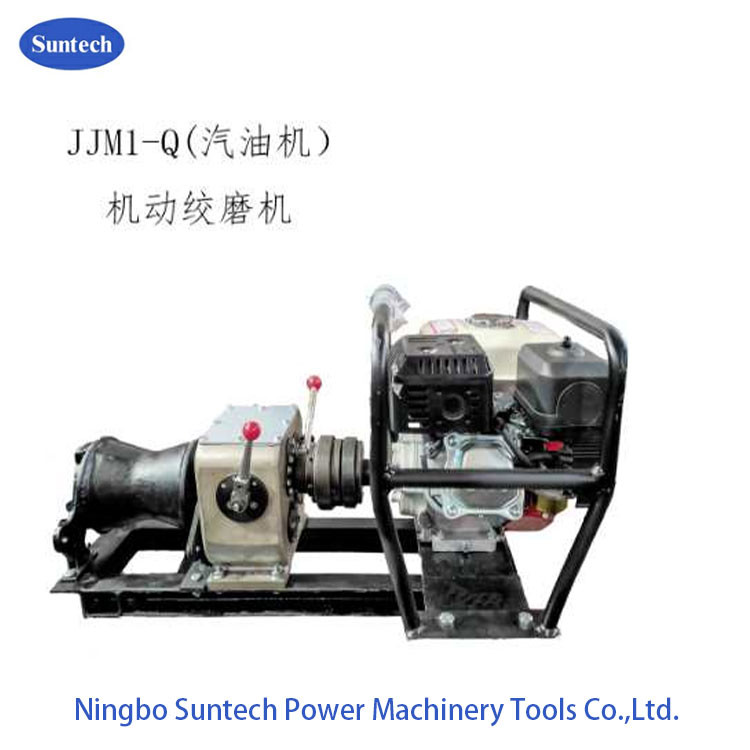

High Efficiency 5 Ton HONDA Wire Rope Gas Powered Winch in Power Construciton
Application
High Efficiency 5 Ton Gas Powerd Winch is mainly used for erecting air high-voltage transmission lines and the laying of underground cables,
gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction
are positive,the braking action.Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical
shape and coming with steel rope.
Features
1) Speedy and Efficient
2) Safe and Reliable
3) Compact structure
4) Widely used
5) Light weight
Technical Data
| Model | Specification | Gear | Line Pull | Pulling Speed | |
| KN | m/min | ||||
| JJM-5B(Q) | Overall Size:1200*600*750mm | Forward | I | 50 | 5 |
| II | 30 | 9 | |||
| Weight:180kg | III | 15 | 14 | ||
| IV | 9 | 24 | |||
| Transmission:Shaft Driven | Reverse | I | - | 5 | |
| II | - | 9 | |||
| Engine:HONDA gasoline engine GX360 13HP | III | - | 14 | ||
| IV | - | 24 | |||
