Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJM5Q |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the latest price |
| Packaging Details: | Exported Plywood Case |
| Delivery Time: | 7-9 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 sets per month |
| Rated Load: | 5Ton | Name: | CABLE PULLING MACHINE |
|---|---|---|---|
| Engine: | Diesel Or Petrol | Application: | Transmission Line |
| Drive: | Belt Drive Or Shaft Drive | Warranty: | 1 Year At Least |
| High Light: | Gas Powered Cable Winch Puller,Small Petrol Engine Cable Winch Puller,5 Ton Honda Cable Winch Puller |
||

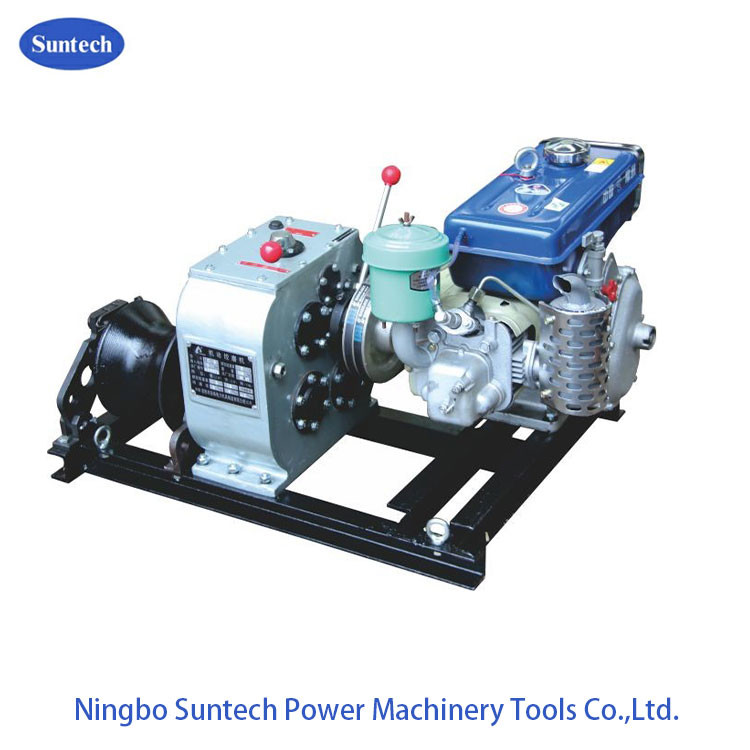

Gas powered winch 5 ton Honda/Yamaha Petrol Engine Cable Pulling Machine
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
It used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM5-Q | HODNA /YAMAHA | (Slow) | 5.0 | 5 | 130 |
| (Fast) | 11.0 | 3 | |||
| Reverse | 3.2 | No Lifting! |
Contact Person: Peter
Tel: 86-13958364836
