Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 508mm,660mm |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Box and Containers |
| Delivery Time: | 7-15 days after Payment |
| Payment Terms: | L/C , T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Name: | SHDN Conductor Stringing Blocks | Material: | MC Nylon Sheave And Steel Support |
|---|---|---|---|
| Load Capacity: | 40KN,60KN Or Customized | Model: | SHDN |
| Usage: | For Conductors | Site: | Overhead Line Stringing Works |
| High Light: | 40KN Bundled Conductor Stringing Blocks,MC Nylon Sheave Conductor Stringing Blocks,Overhead Line Sheave Pulley Block |
||

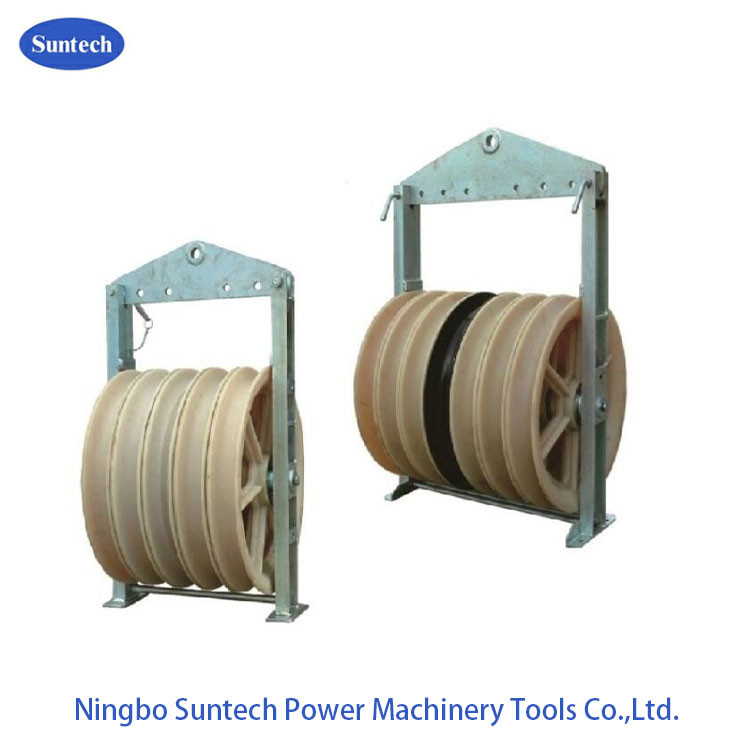

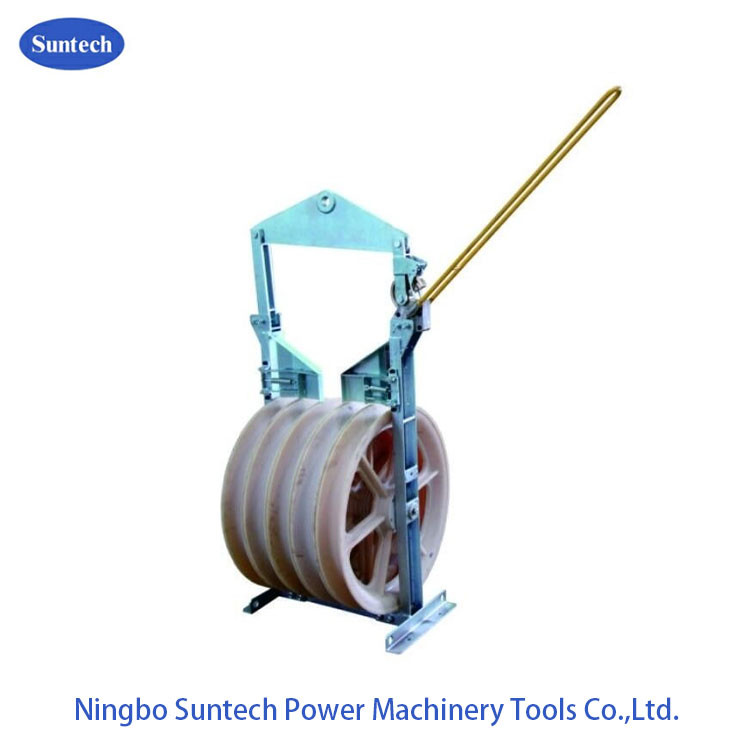

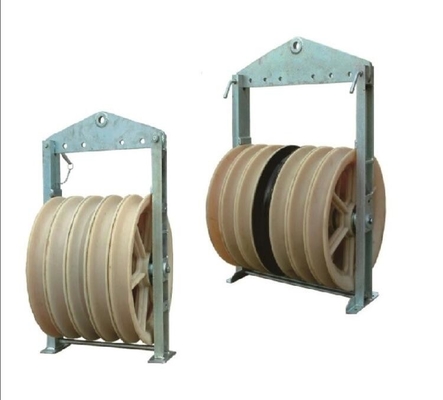

Bundled conductor block pulley transmission line stringing tools 508 mm wheel with best price
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) |
Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction.
We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.
1.Maximum suitable conductor ACSR400.Configuration:
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm)
3.Sheave dimension Φ508×Φ408×100 (mm) can be customized.
