Place of Origin: | Fenghua,Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SHDN |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the newest price |
Packaging Details: | Exported Wooden Boxes and pallets |
Delivery Time: | 7-15 Workdays |
Payment Terms: | L/C, T/T,D/P, Western Union |
Supply Ability: | 600pcs per month |
Name: | Stringing Blocks | Wheels: | 1,3,5,7,9 |
---|---|---|---|
Capacity: | 20-150kn | Surface: | Galvanised |
Application: | For Stringing Construction | Usage: | Overhead Line |
High Light: | Galvanized Conductor Stringing Blocks,Conductor Stringing Blocks 150kn,Conductor Stringing Steel Pulley Block |

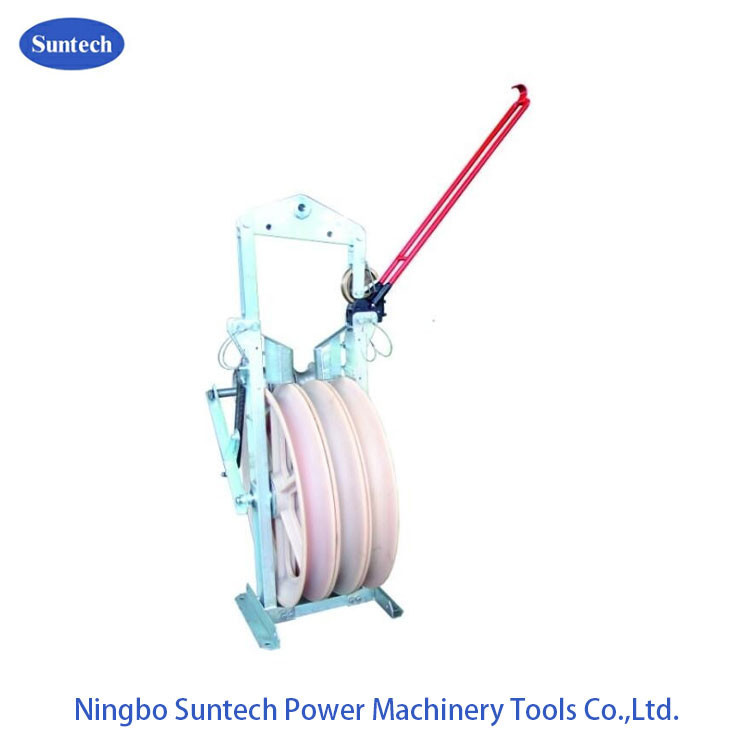

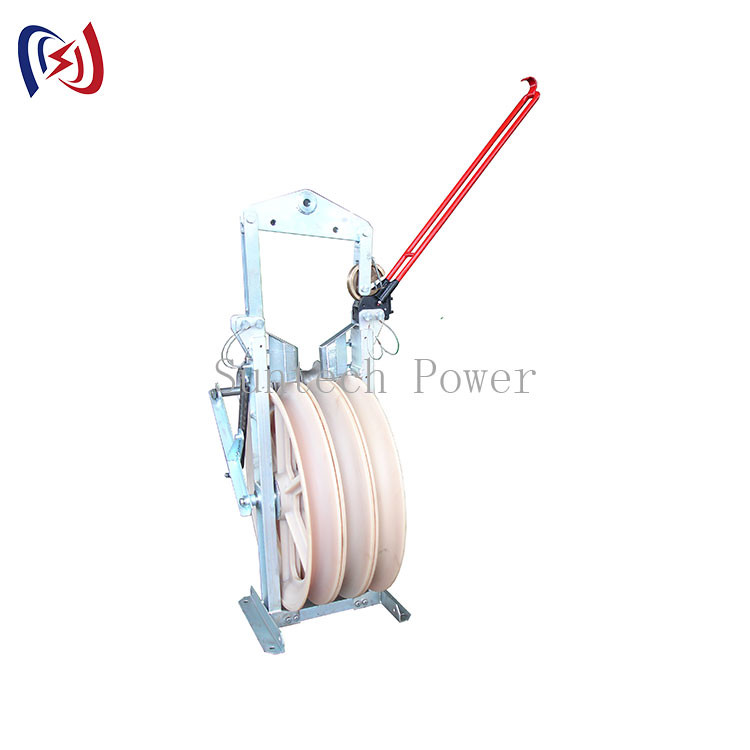

Large Diameter Stringing Power Block Cable Pulley Block With Grounding Roller
Uses
Aplly to release the induced current on the line for stringing construction.
Specification
Item number | Model | Outside Diameter Of Sheave(MM) | Sheaves |
10301 | SHDN508D |
Φ508×75 (508*100) |
1 |
10302 | SHSN508D | 3 | |
10303 | SHWN508D | 5 | |
10311 | SHDN660D |
Φ660×100 (660×110) |
1 |
10312 | SHSN660D | 3 | |
10313 | SHWN660D | 5 | |
10316-1 | SHDN822D | Φ822×110 | 1 |
10316-3 | SHSN822D | 3 | |
10316-5 | SHWN660D | 5 | |
10316 | SHDN916D | Φ916X110 | 1 |
10317 | SHSN916D | 3 | |
10318 | SHWN916D | 5 |
Contact Person: Peter
Tel: 86-13958364836
