Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Stringing Block |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Case or Container |
| Delivery Time: | 10-15 days after Payment |
| Payment Terms: | L/C , T/T |
| Supply Ability: | 1000 pcs per month |
| Size: | 508,660,822 And 916mm | Item: | String Block With Grounding Roller |
|---|---|---|---|
| Wheels: | 1,3,5,7 | Application: | Transmission Line |
| Usage: | Construct Works | Capacity: | 20kn,40kn,60kn |
| High Light: | Construction Sheave Pulley Block,60kn Transmission Line Conductor Stringing Blocks,Grounding Roller Conductor Stringing Blocks |
||

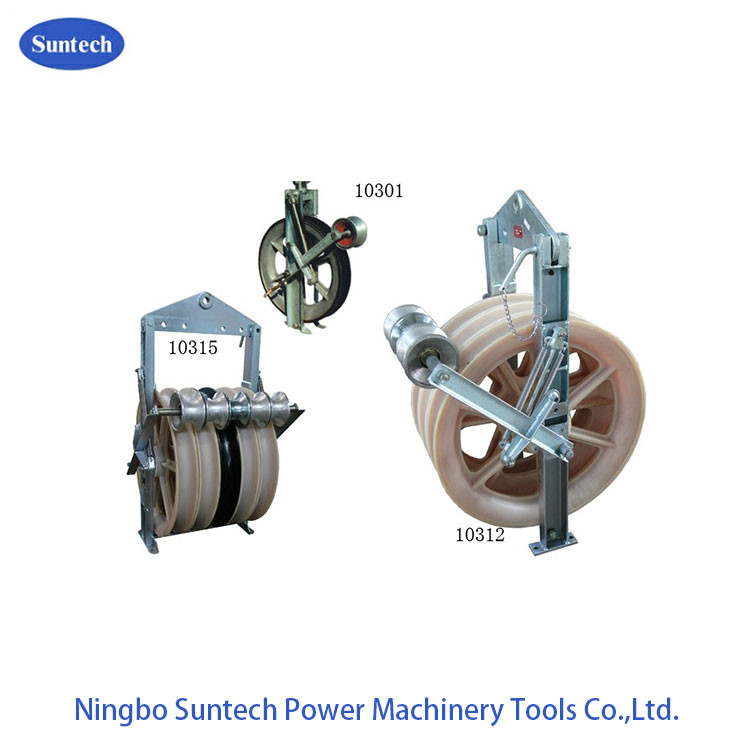

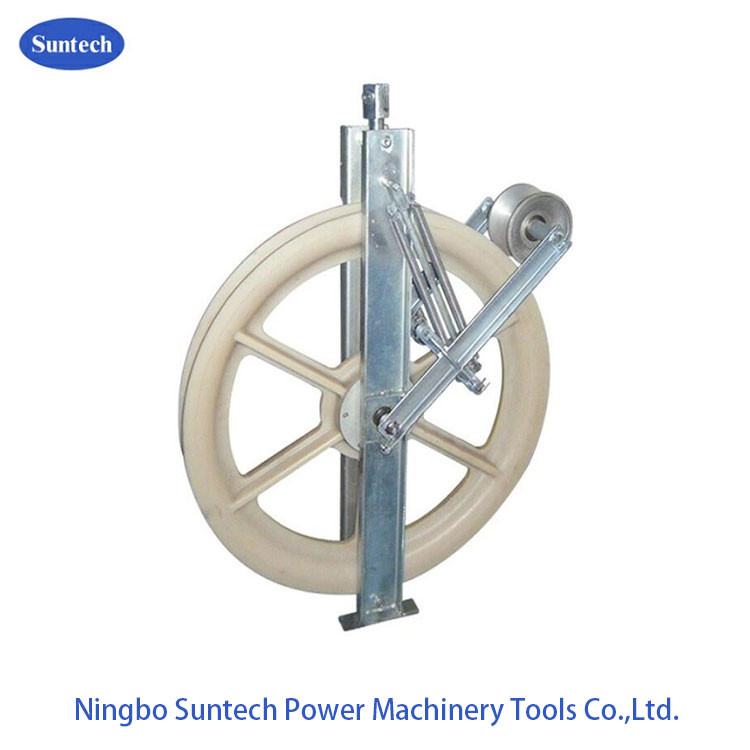

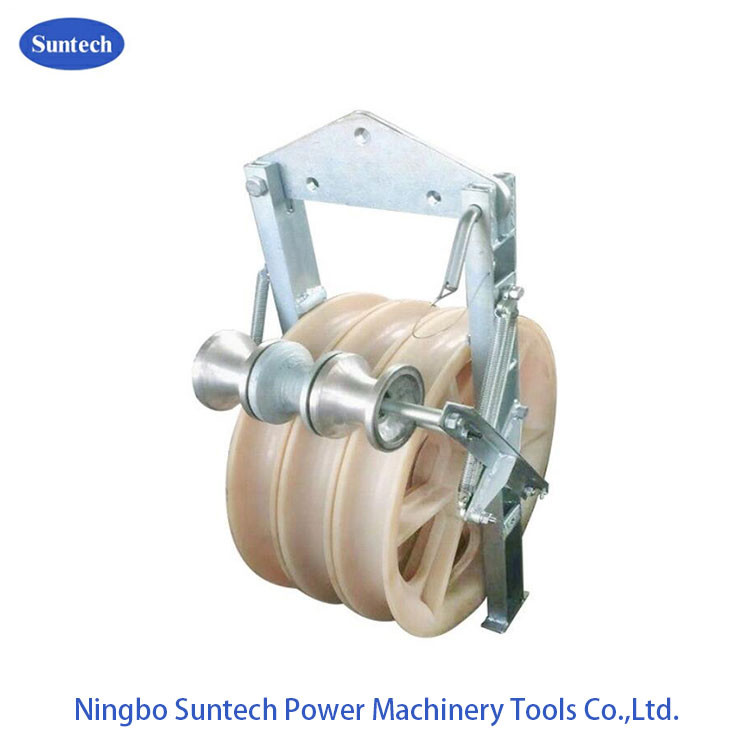

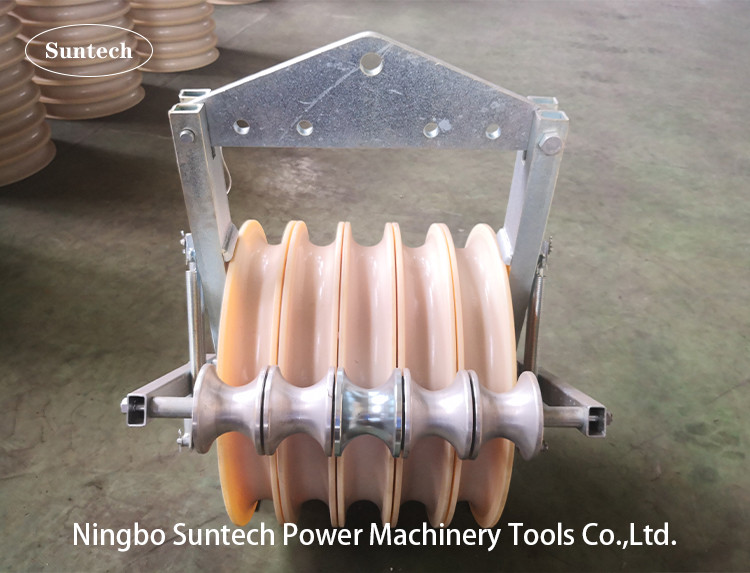

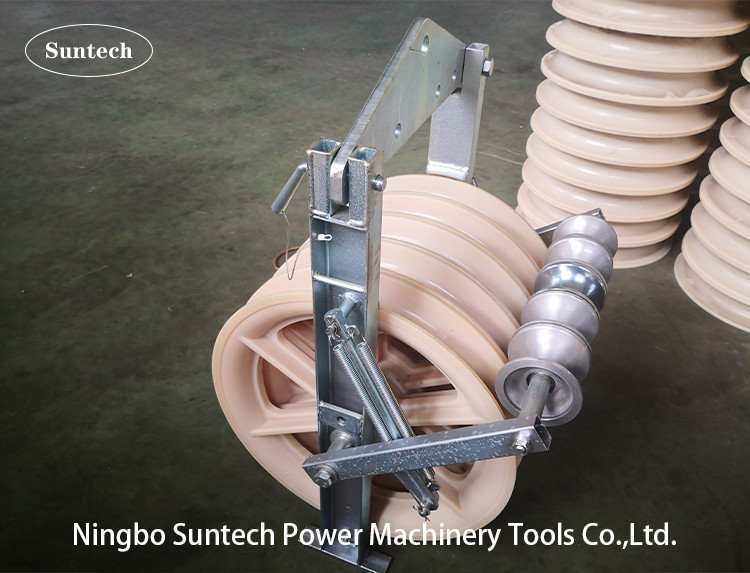

Aerial Helicopter Stringing Bundled Conductor Blocks for Power Transmission Line Stringing Construction
Application: Apply to helicopter pull guide rope
Specification
| Item number | Model | Outside Diameter Of Sheave(MM) | Sheaves |
| 10321 | SHDN508Z |
Φ508×75 (508*100) |
1 |
| 10322 | SHSN508Z | 3 | |
| 10323 | SHWN508Z | 5 | |
| 10324 | SHDN660Z |
Φ660×100 (660×110) |
1 |
| 10325 | SHSN660Z | 3 | |
| 10326 | SHWN660Z | 5 | |
| 10326-1 | SHDN822Z | Φ822×110 | 1 |
| 10326-2 | SHSN822Z | 3 | |
| 10326-3 | SHWN822Z | 5 | |
| 10327 | SHDN916Z | Φ916X110 | 1 |
| 10328 | SHSN916Z | 3 | |
| 10329 | SHWN916Z | 5 |
Contact Person: Peter
Tel: 86-13958364836
