Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SKDS |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Get the lastest Price |
Packaging Details: | Exported Cartons |
Delivery Time: | 3days after payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000pcs per month |
Name: | Dual Cam Earth Wire Gripper | Model: | SKDS |
---|---|---|---|
Rated Load: | 10KN | Apply: | 25-50GJ |
Material: | Steel | Size: | GJ10-185 |
Surface Treatment: | Galvanized | ||
High Light: | Steel Strand Tools Come Along Clamp,10 KN Earth Steel Cable Gripper,Galvanized Dual Cam Earth Wire Gripper |

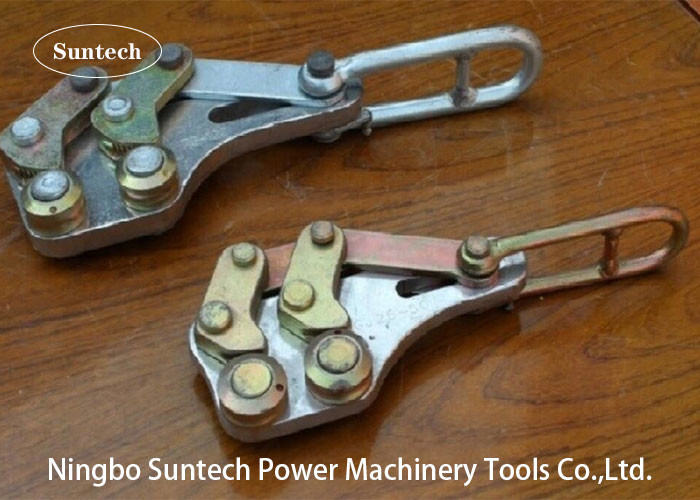

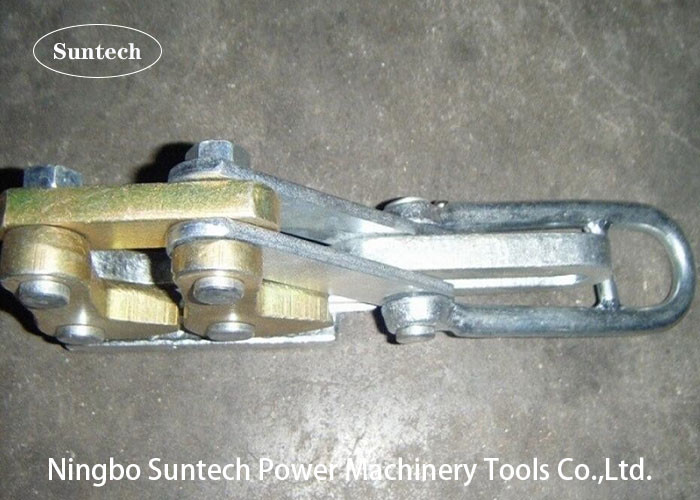

SKDS Model 10 kN Dual Cam Earth Wire Gripper For GJ25-50 Steel Strand Power Tools
Durable double wheel earth wire grip come along clamp made in china
Item number | Model |
Applicable Steel Strand |
(KN) Rated Load |
Applicable Wire Diameter |
(KG) Weight |
13141 | SKDS-1 | GJ25-50 | 10 | 11 | 2.6 |
13142 | SKDS-2 | GJ50-70 | 20 | 13 | 3.1 |
13143 | SKDS-3 | GJ70-120 | 30 | 15 | 4.1 |
Configuration: It is suitable for the steel strand adjustment of the guyed tower and the ground wire tightening.
Quick Information:
1. name: dual cam earth wire gripper
2. type: come along clamp
3. Applied for the GJ35-50 steel strand wire
4. Donghuan Brand
5. rated load 10kn
6.applicabel wire diameter 11mm
It is forged from alloy steel.
The clamping cable has large scope, light weight, no skid, durable.
Suitable for overhead power lines, twisted wire and cable.
