Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO CE |
| Model Number: | SKDD-1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per month |
| Model: | SKG50N | Rated Load: | 10KN |
|---|---|---|---|
| Applicable: | GJ25-50 Steel Strand | Max Open: | 13mm |
| Weight: | 1.5kg | Name: | Earth Wire Gripper |
| High Light: | Earth Wire Gripper For Steel Strand,10KN Single Cam Wire Cable Clamp,SKG 50N Cable Clamp |
||

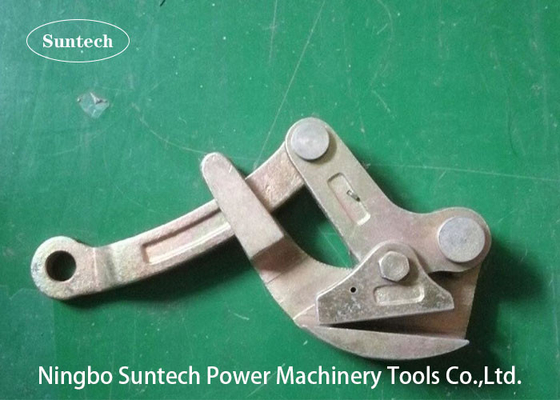

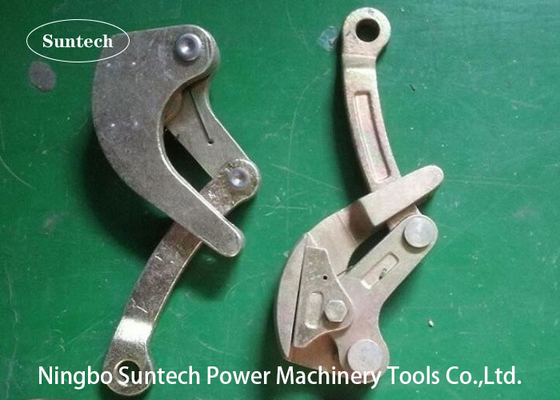

SKDD Model Rated Load 10KN Single Cam Earth Wire Gripper For GJ25-50 Steel Strand
Single Cam Earth Wire Gripper:
| Item number | Model |
Applicable Steel Strand |
Rated Load(kn) |
(MM) Max Open |
(KG) Weight |
| 13131 | SKDD-1 | GJ25-50 | 10 | 13 | 1.3 |
| 13132 | SKDD-2 | GJ70-120 | 20 | 16 | 1.9 |
Configuration: It is suitable for the steel strand adjustment of the guyed tower and the ground wire tightening.
Quick Information:
1) Name: Single Cam Earth Wire Gripper
2) Model: SKDD-1
3) Applicabel steel strand GJ25-50
4) Rated load:10Kn
5) Donghuan Brand
6) Max Open 13mm
