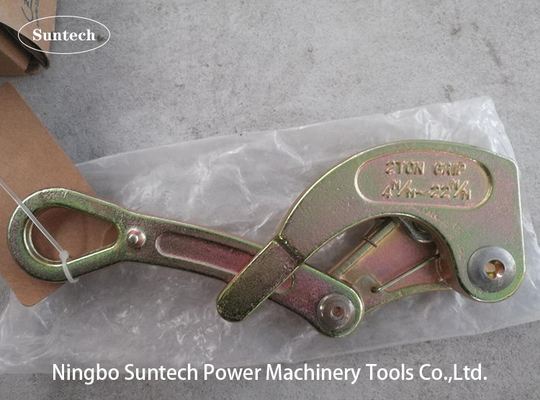

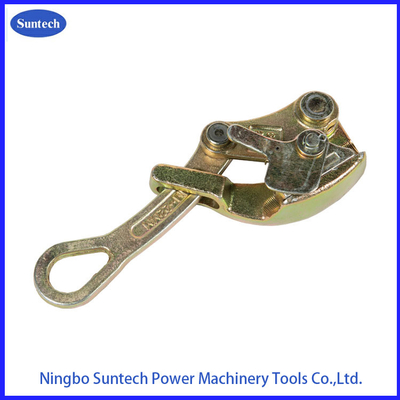

30KN 3 Ton M3000 Wire Pulling Gripper Tower Erection Tools Come Along Clamp
30KN 3 Ton M3000 Wire Pulling Gripper Tower Erection Tools Come Along Clamp
Universal Type Gripper is used of high-quality alloy steel forging forming, jaws are made by a special heat treatment.
The jaws are partially equipped with a safety device to prevent jumpers.It is used for steel wire, ACSR or insulated wire.It is universal.
Model M, rated load from 1T,to 3T, is applicable range from 2.6mm to 32mm, the weight is very light and convenient to operate.
1) steel material
2) the high temperature quenching process has high occlusion of tenile strenght.
3) half- month tongs do less demange to the wire,equipped with the anti-film inssurance device not to jumper
| Item No. | Model No. | Rated Load (KN) | Applicable Range(mm) | Weight(KG) |
| 01001 | M1000 | 10 | 2.6~15 | 0.75 |
| 01002 | M2000 | 20 | 4~22 | 1.5 |
| 01003 | M3000 | 30 | 16~32 |
2.9 |
Our plant also are making the other kinds of wire grippers, like aluminum alloy bonductor gripper, it is applied to adjusting sag in erecting wire and sagging, its product is forged of high strenght aluminum alloy, compact and light weight.Dual cam earth wire gripper, model SKDS, has 1T,2T,3T, it is for sagging of earthwire and adjustment of guy wires.
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
