Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SKG-N |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Wooden Case |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000pcs per month |
Name: | Steel Rope Gripper | Item: | SKG50N |
---|---|---|---|
Rated Load: | 5T | Wire Rope: | 11~15mm |
Application: | Grip Anti-twist Steel Rope | Weight: | 6.5KG |
High Light: | Anti Twist Come Along Clamp,5T Underground Self Gripping Clamps,15mm Steel Rope Come Along Clamp |
5T Anti Twist Steel Rope Gripper Underground Cable Tools For 11-15mm Rope
About us:
Suntech Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
Gripper Data Sheet 5T Anti Twist Steel Rope Gripper Underground Cable Tools For 11-15mm Rope
Item number | Model | Rated load (kN) | Applicable wire rope(mm) | Weight (kg) |
13154 | SKG30N | 30 | 9~11 | 4.6 |
13155 | SKG50N | 50 | 11~15 | 6.5 |
13156 | SKG70N | 70 | 16~18 | 8.5 |
13157 | SKG120N | 120 | 19~21 OR 22~24 | 13.6 |
13158 | SKG200N | 200 | 26~30 | 32.5 |
When the order is placed, the detailed specifications about the anti-twist steel wire rope should be clearly indicated.

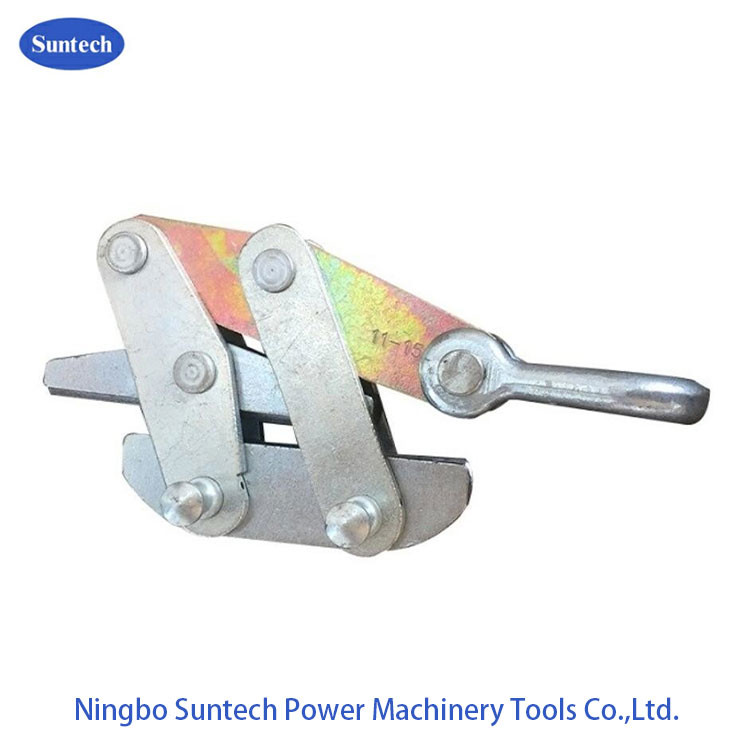

Steel Rope Gripper
This SKG-N series steel rope gripper is suitable for gripping the anti-twist steel wire rope.
It is equipped with the V shaped single jaw. Both side panels of our product bear the symmetric force. In this way, the weight can be effectively reduced.
