| Name: | Earth Wire Gripper | Type: | Parallel Jaw |
|---|---|---|---|
| Apply: | 50~150mm2 | Capacity: | 16KN |
| Material: | Steel | Usage: | Transmission Line |
| High Light: | Self Gripping Earth Wire Clamps 16KN,Parallel Jaw Self Gripping Clamps,Transmission Line Come Along Clamp 16KN |
||

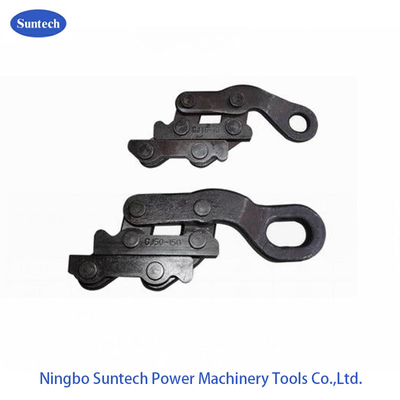

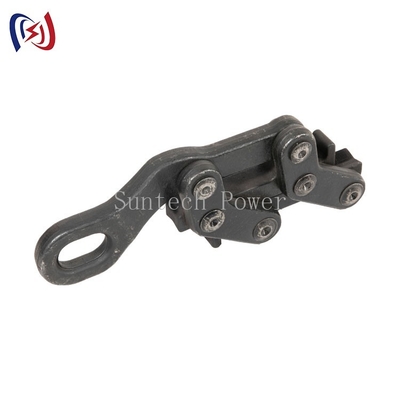

16KN Earth Wire Come Along Clamp Parallel Jaw Type for 50-150mm2
Come Along Clamp Introduce:
16KN Earth Wire Come Along Clamp Parallel Jaw Type for 50-150mm2
This Parallel jaw earth wire gripper has these features: flawless finish, optium strength, and precise design.
The tension and adjust the radian is suitable for wire and cable railway contact,using parallel jaw design,with anti slip jaw.
16KN Earth Wire Come Along Clamp Parallel Jaw Type for 50-150mm2
1. With long, parallel tensioning steel jaws, hardened and burnished
2. Simple and easy handling
3. Grips the wire automatically by spring loading
4. No slipping of wire for highest pulling forces
Warning: When using grip never exceed Working load Limit
Earth Wire Come Along Clamp Parallel Jaw Type
| Item number | Model | Rated load (kN) | Applicable wire(mm2) | Weight (kg) |
| 80128 | SKDX-1 | 12 | 16-50 | 1 |
| 80129 | SKDX-2 | 16 | 50-150 | 1.3 |
| 80130 | SKDX-3 | 20 | 150-300 | 2.2 |
